Economical LED street light

Home  /  Products / LED Street Light / Economical LED street light
  • ENEC 20w Economical Street Light Lamp
  • ENEC 20w Economical Street Light Lamp
  • ENEC 20w Economical Street Light Lamp
  • ENEC 20w Economical Street Light Lamp
  • ENEC 20w Economical Street Light Lamp

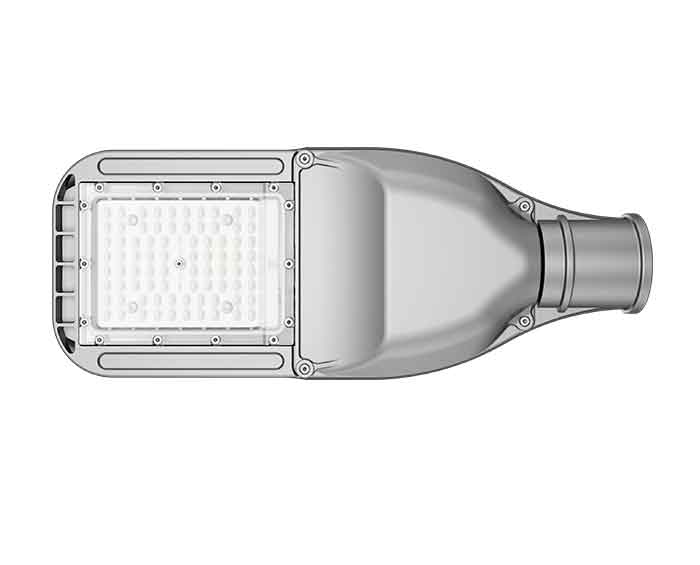

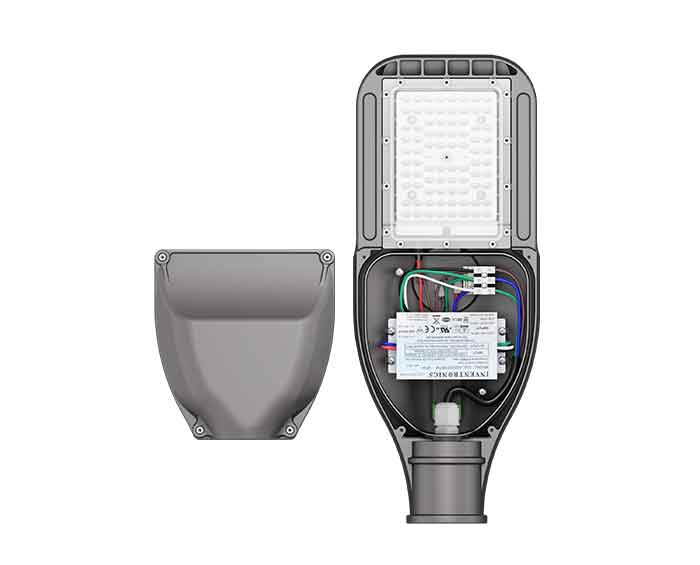

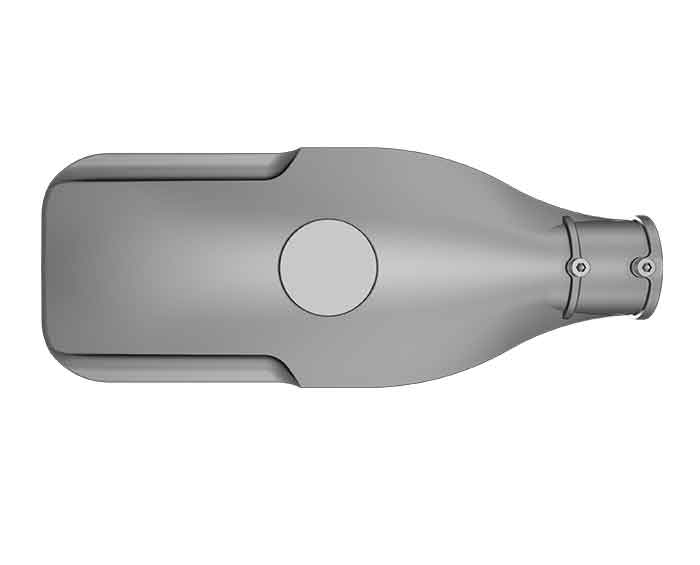

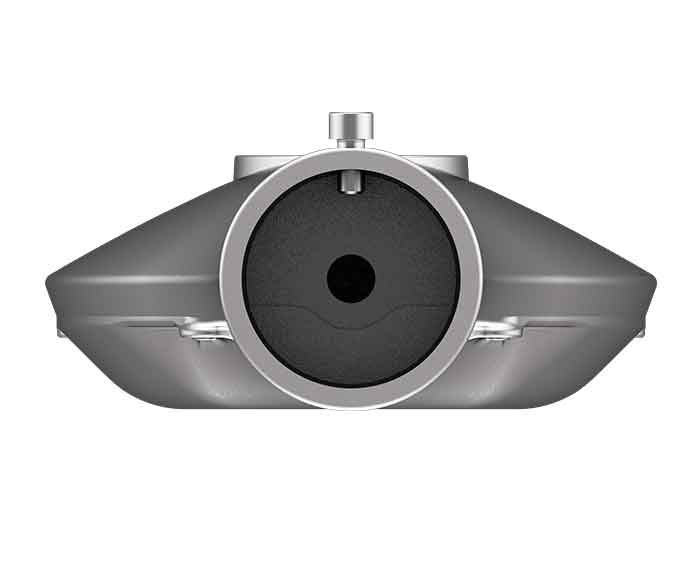

ENEC 20w Economical Street Light Lamp

20w Economical Street Light Lamp is a low-wattage economy street light suitable for lighting areas such as small parking lots, trails, country roads, etc. Smart design, low transportation costs. It can also be used as a lamp head for split solar street lights, which is more energy-saving and environmentally friendly.

PRODUCT DESCRIPTION

Key Features

● Wide power range: 20W~50W.

● In special circuit design, single LED damage won't affect others' normal work.

● Smart design, low transportation costs.

● A smooth body would greatly diminish dust accumulation and bird droppings heap up.

● High Lumen output up to 160lm/ w with high-quality LED chips.

● Multiple lighting control options are available, e.g. 1-10V, photocell.

● Designed to last at least 100, 000 hours at L70.


Specifications

ModelZGSM-LD20Kmini
LED BrandLUMILEDS® LUXEON 3030/ 5050
Driver BrandInventronics
Normal Wattage20W
LED Chip Quantity

3030: 40pcs  5050: 16pcs

Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency3030: 146 lm /w  5050: 154 lm /w
Lamp Rated Lumen output3030: 2920 lm  5050: 3080 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type3030: Type II Medium  5050: Type II Medium BLS
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5 years


FAQ

1. What is the difference between residential lighting and commercial lighting?

Residential lighting focuses on complementing the aesthetics and interior decoration of the home and is often used as ambient light. It makes homes feel more functional and comfortable, while commercial lighting is more focused on creating an environment that is both efficient and safe.


2. What are the requirements for good street lighting?

White light with strong color rendering is required.

The following aspects are important to achieve this goal:

  • More light (Lm) reaches a point.

  • Uniformity of light (Uo) up to a certain point.

  • Reduced glare (TI)

  • Good color rendering (Ra)

  • White light, especially in densely populated areas.


3. What is Class II?

IEC protection Class II power supplies will have a two-wire power cord as opposed to a three-wire power cord with Safety Earth connection.The concentric square symbol or the words "Class II" or "double insulated" are frequently used to identify products having Class II insulation on safety labels.
