LED Street Light

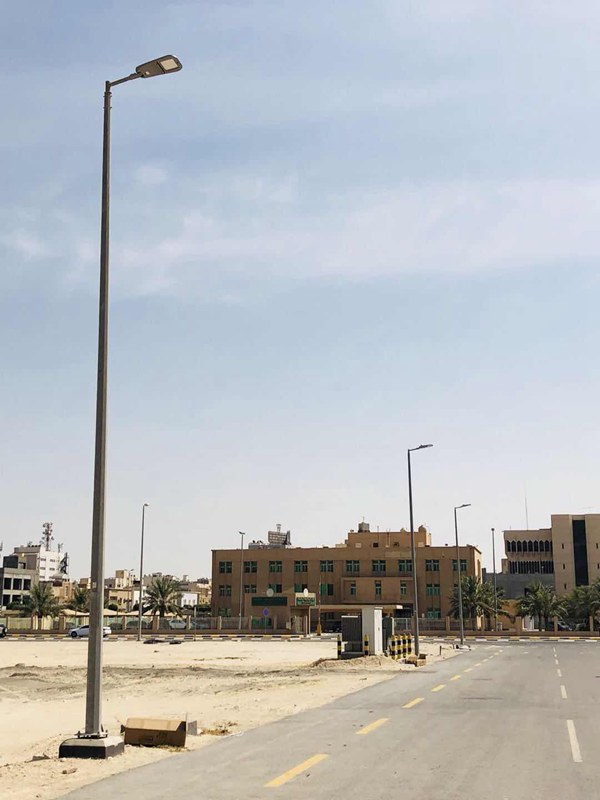

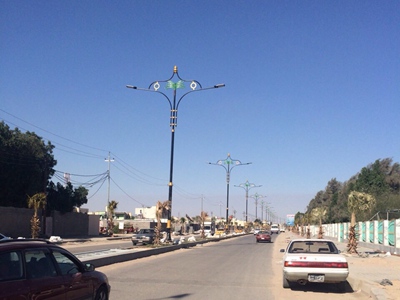

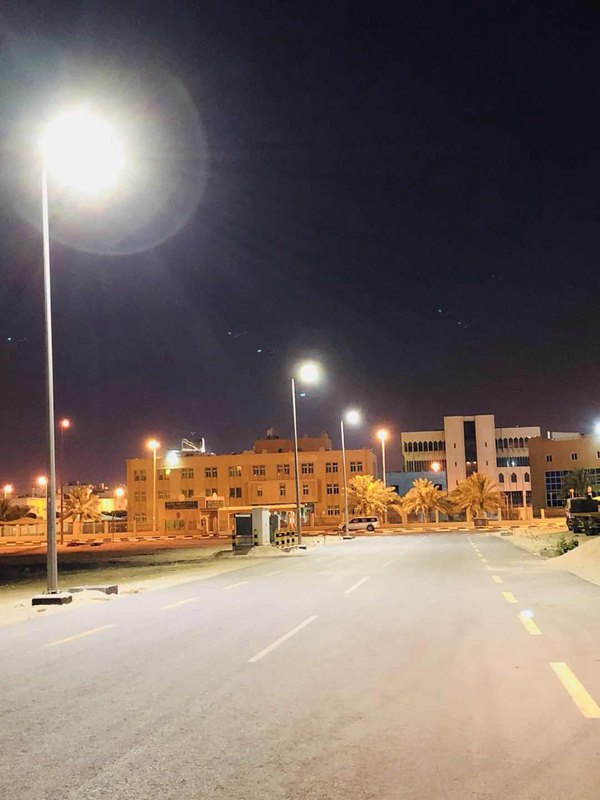

The LED street lighting project in Saudi Arabia was finished in 2017. According to the weather in Saudi Arabia, we recommended ZGSM 200W KL series LED Street Light. The K series LED Street lights have passed the test of windproof, no problem working in a windy environment. The smooth body design of the K series doesn't need to worry about dust accumulation. It allows our K series to work in Saudi Arabia, where is a lot of sand and dust. Our clients are satisfied with the lighting effect because there were no LED street lights broken during the past 5 years.

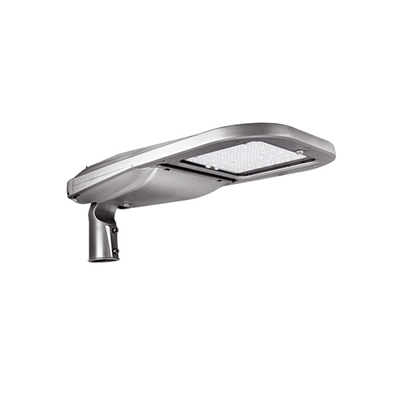

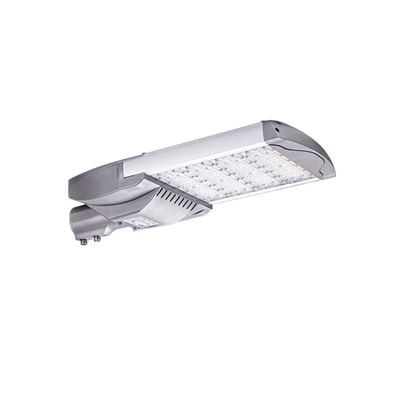

Product: 200W LED Street Lights
Model No.: ZGSM-LD200KL
LED: Lumileds 3030
Driver: Inventronics
CCT: 4000K
Optics: Type 2M
QTY: 4 Units
| Model | ZGSM-LD200KL |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Normal Wattage | 200W |
| LED Chip Quantity | 3030: 336pcs 5050: 168pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-150 lm /w |
| Lamp Rated Lumen output | 26000-30000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70(80 optional) |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Die-cast aluminum;Tempered Glass |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK08 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ENEC, CB, ROHS, LM-80, LM79, ISTMT, IP66, IK08 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Deep grey or Light grey |
| Warranty | 7 years |
Data Sheet_ StreetLight_K_ZGSM-LD200KL.pdf
Installation Manual_StreetLight_K.pdf
 |  |  |
| Correct Installation And Use Of Led Street Lights | ||
 |  |  |
| How To Choose Led Street Lights Correctly? |
The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
What is LED street lighting, and how does it work? The term "light-emitting diode" refers to a device that emits light. The LED light source is both energy-efficient and eco-friendly. It is more adjustable than earlier types of street lighting since it can be lowered and concentrates light where it is needed with less light pollution.
Yes! We provide a variety of superior light poles in a variety of designs, colors, and sizes. More details, pls contact us.

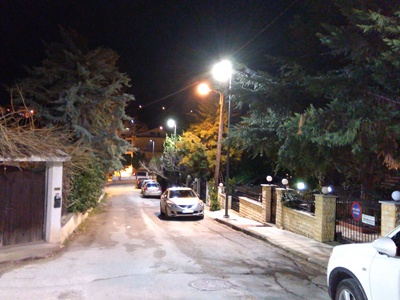

Previous: LED Street Light Project in Greece
