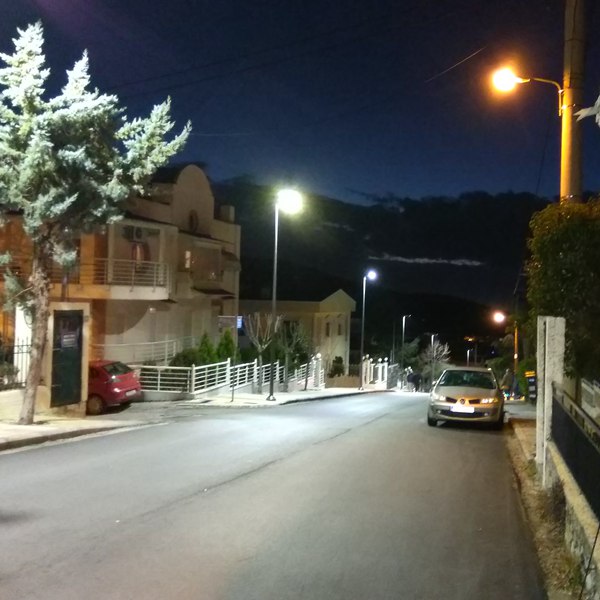

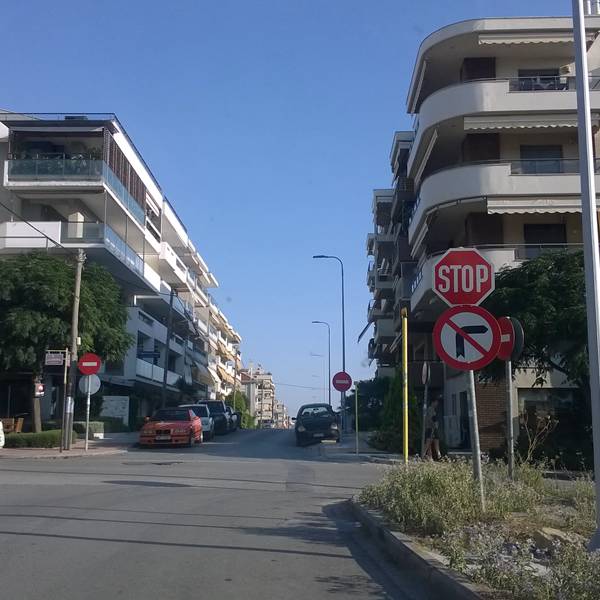

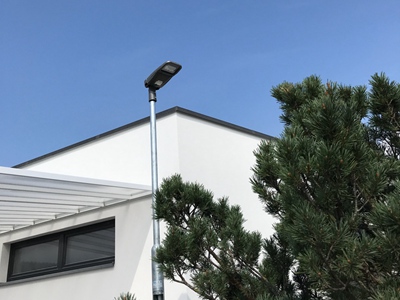

LED Street Lighting Project of Residential Areas In Greece, finished in 2017. By replacing old street lamps with 14pcs 45W, 168pcs 65W, 145pcs 110W, and 8pcs 140W ZGSM designed & manufactured K Series LED Street Lamps, we help this community to achieve energy-saving of more than 60%. What's more, the situation of roadway lighting is much better than before, which makes residents much safer when walking or driving in the evening. Our client is very satisfied with the performance of ZGSM K Series LED Street Lights. ZGSM K Series Street LED lamps could also be equipped with photocell sensor and used in the LED solar street lighting system.

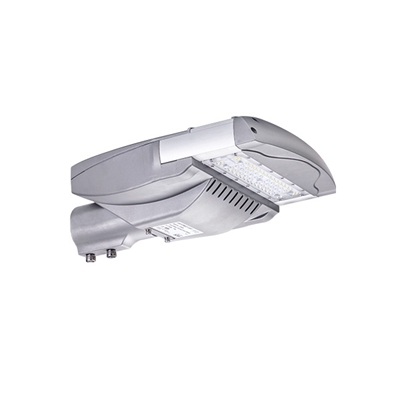

Products: 45W & 65W & 110W & 140W LED Street Lights
Model No.: ZGSM-LD60KM-45W, ZGSM-LD90KM-65W, ZGSM-LD120KM-110W, ZGSM-LD150KL-140W
LED: Lumileds 3030
Optics: Type 2M
Housing Color: Dark Grey
QTY: 335 Units
|LED Brand||LUMILEDS® LUXEON 3030 or 5050|
|Driver Brand||Meanwell / Inventronics|
|LED Chip Quantity||3030: 144pcs 5050: 72pcs|
|Lamp Rated Luminous Efficiency||130-150 lm /w|
|Lamp Rated Lumen output||11700-13500 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70(80 optional)|
|Color Temperature||3000K or 4000K or 5000K or 5700K|
|Photometric Type||Type I Medium;Type II Medium;Type III Medium|
|Optimal Operating Temperature||25℃|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100,000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body and Shell Materials||Die-cast aluminum;Tempered Glass|
|Pole Fitter Diameter||60mm ( 50mm optional)|
|Protection||Class I ( Class II optional)|
|SPD||10KV (20KV optional)|
|Certification||CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT|
|Dimming Options||1-10V or DALI or PWM or Timer|
|Control Options||Photocell or Motion sensor or Smart control|
|Color Options||Deep grey or Light grey|

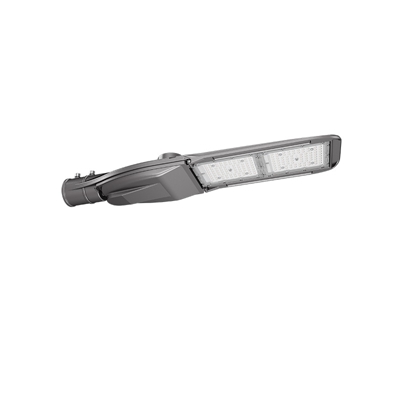

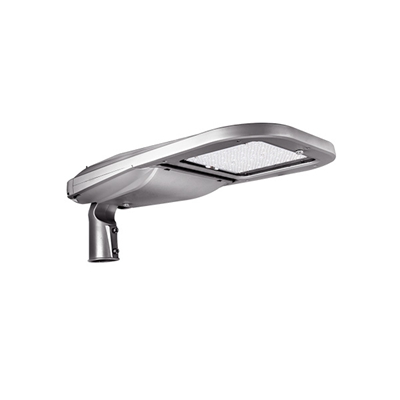

|ENEC approved 40 Watt LED Street Light||60W LED Street Lamp With Tempered Glass||150W Cobra Head LED Street Light|

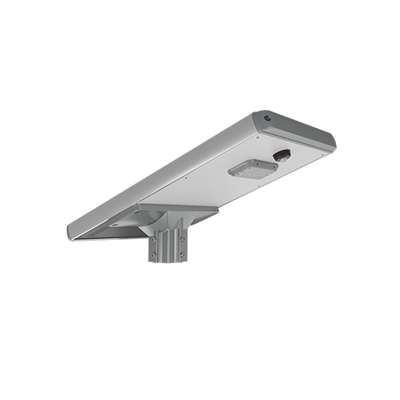

|Lithium Battery 40W Solar LED Street Light||Multi-purpose 27W Tool-less LED Street Light||ENEC Certification 120 Watt LED Street Light|

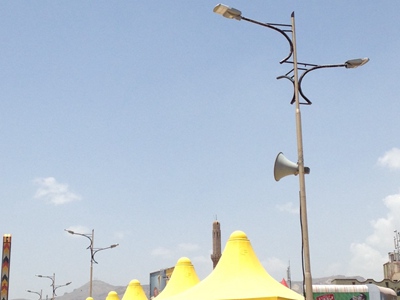

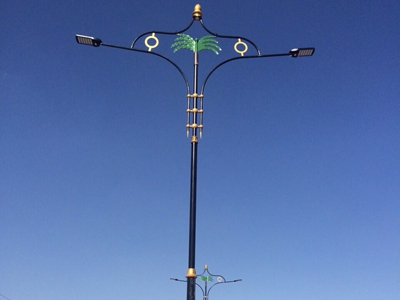

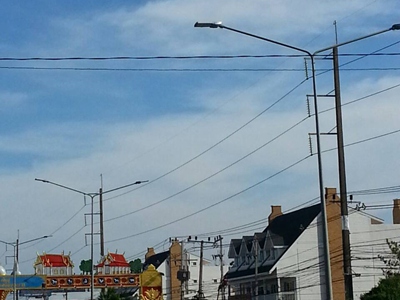

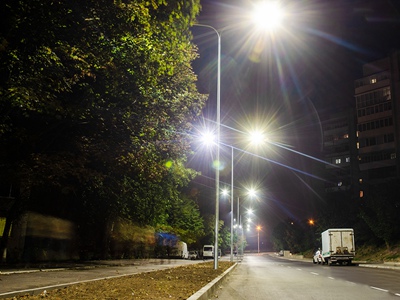

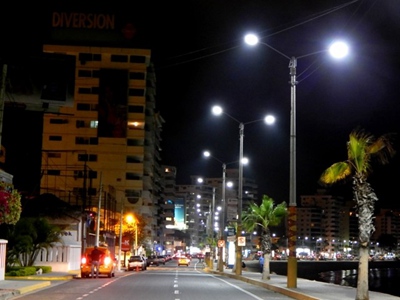

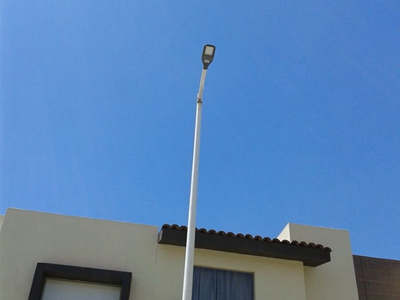

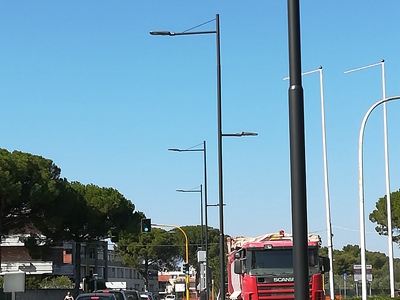

|LED Street Light Project in Ukraine||LED Street Light Project in Croatia||LED Street Light Project in Thailand|
|LED Street Light Project in Iraq||LED Street Light Project in Dubai||LED Street Light Project in Czech|
|Light Source Of LED Street Lamp||The Ways Does LED Street Lamp Radiate Heat?|
|In-Depth Analysis of Led Street Lights||How To Choose Led Street Lights Correctly?||LED Street Light System Installation Process|
· Significant energy savings - more than 60% as compared to typical street lighting
· Good color rendering, which makes colors appear more natural.
· Long service life - up to 100,000 hours, resulting in lower maintenance costs.
· White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.
· When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.
Color temperature is expressed in Kelvin and is a mathematical calculation based on a light source's Spectral Power Distribution (SPD). It enables a large range of unique color combinations. Different combinations of Correlated Color Temperature (CCT) and Color Rendering Indexes (CRI) are available in LED lighting, which can have different impacts on eyesight. The color temperature is measured in degrees Kelvin, with a warm light (yellowish) being around 2700K, neutral white being approximately 4000K, and cool white (bluish) being around 5000K or more.
Protecting the public with lighting that promotes alert drivers and a safe environment may be the greatest priority in many outdoor applications, to explain why it's necessary. In those circumstances, the suggested color temperature is used, taking into account the space and the people who will be using it.
Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.
