LED Street Light

Home  /  Projects / LED Street Light

LED Street Light Project in Czech

The outdoor park lighting project in the Czech was finished in 2018. 4 sets of 25W ZGSM tool-less open designed K series LED street lighting fixtures were mounted at a height of 6 meters. Our K series street lighting fixtures have a European Style housing, which perfectly fits the style of this park very well. The CCT of 3000K, which is also known as warm white, makes the park look more beautiful and reassuring at night. Most people enjoyed a nice experience here.


Products Details

25W LED Street Light, Model: ZGSM-LD25KS, 3000K, Type 2M, 4 sets in total.


Video

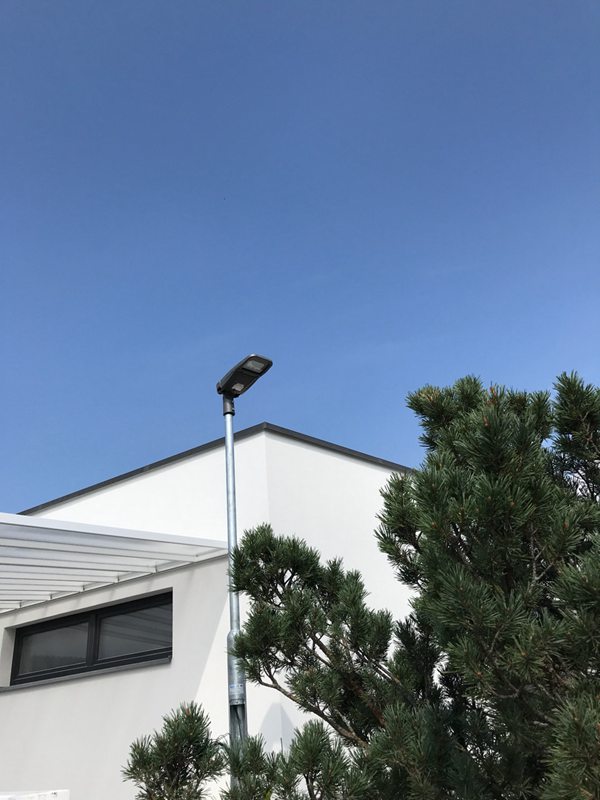

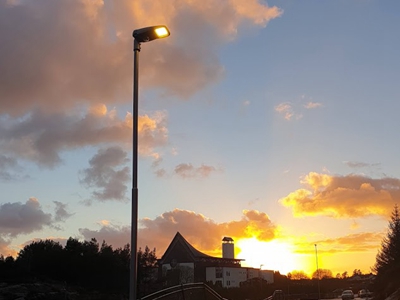

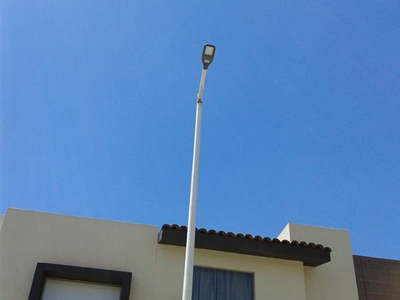

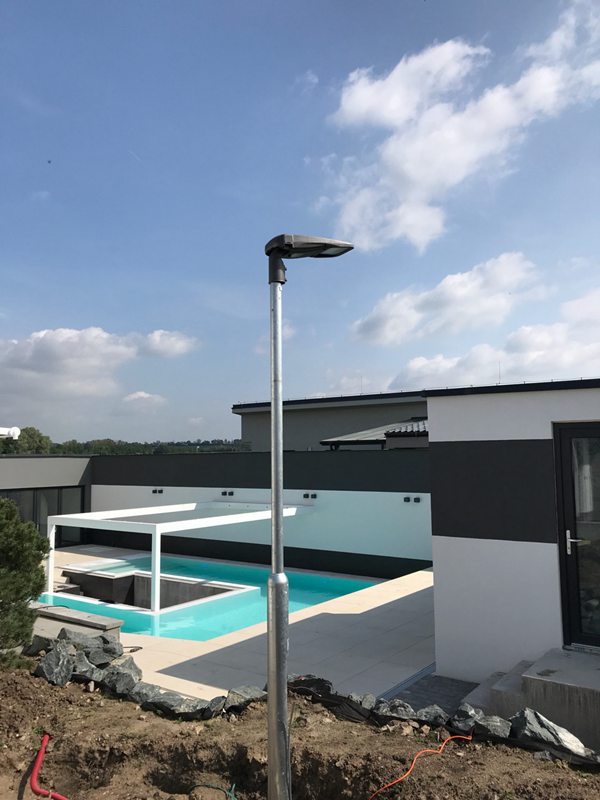

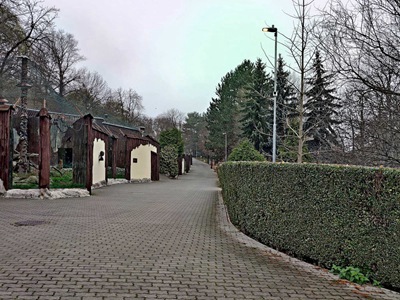

Project Photos


LED Street Light Project in CzechLED Street Light Project in Czech


Specification


ModelZGSM-LD25KS
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage25W
LED Chip Quantity3030: 48pcs 5050: 24pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-145 lm /w
Lamp Rated Lumen output3125-3625 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, or 4000K, or 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years


Download


Installation Manual_StreetLight_K.pdf

Data Sheet_ StreetLight_ZGSM-LD25KS.pdf


Related Products


LED Street Light Project in CzechLED Street Light Project in CzechLED Street Light Project in Czech

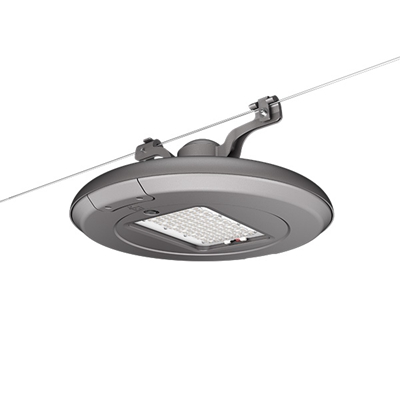

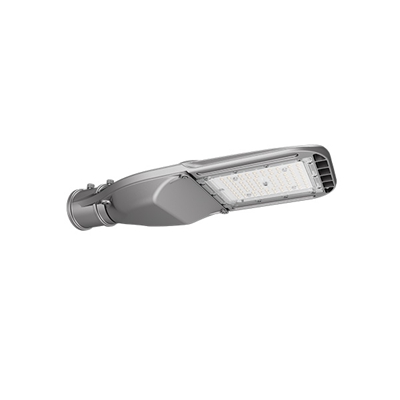

ENEC Certified 25W Tool-less Street Light FixturesEuropean Style 120w Suspended LED Street Light

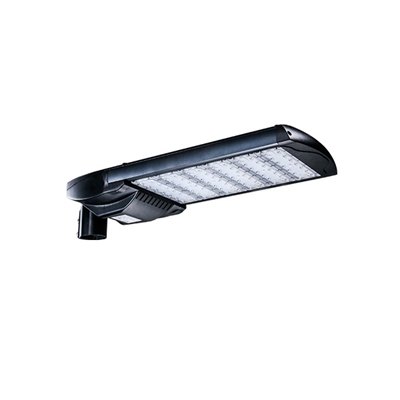

150w LED Street Light

LED Street Light Project in CzechLED Street Light Project in CzechLED Street Light Project in Czech
240w Class II Modular Design Street Luminaires
20w Economical LED Area LightsENEC Certified 120 Watt LED Street Light


Related Projects


LED Street Light Project in CzechLED Street Light Project in CzechLED Street Light Project in Czech

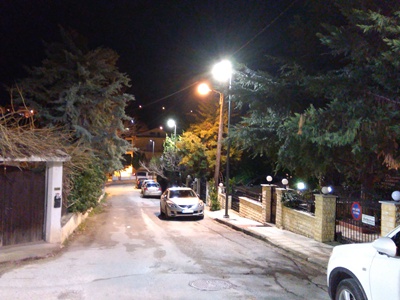

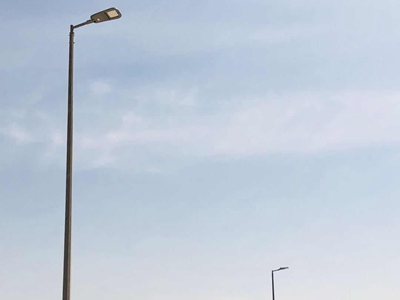

LED Street Light Project In MexicoLED Street Light Project In ItalyLED Street Light Project In Ukraine
LED Street Light Project in CzechLED Street Light Project in CzechLED Street Light Project in Czech

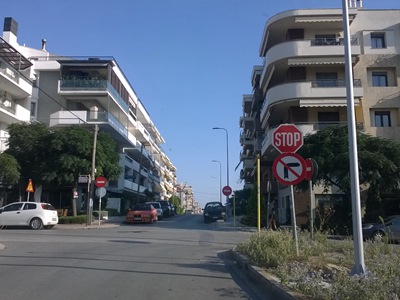

LED Street Light Project In Greece

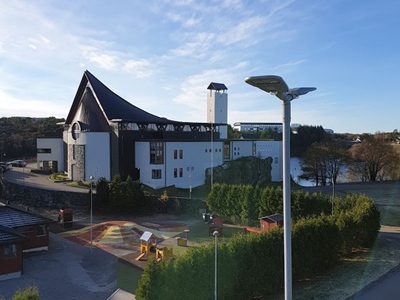

LED Street Light Project In Saudi ArabiaLED Street Light Project In Norway


Related Blogs


LED Street Light Project in CzechLED Street Light Project in CzechLED Street Light Project in Czech
LED Street Light Procurement Skills

Compare The Advantages And

Disadvantages Of LED Street Lights

The Reason For The Rapid Development

Of LED Street Light

LED Street Light Project in CzechLED Street Light Project in CzechLED Street Light Project in Czech
LED Street Light System Installation Process

What Are The Aging Test Standards

 For Led Street Lamps?

Light Source Of LED Street Lamp


People Also Ask


  1. How long do LED street lights last?

    About 15 to 20 years.

    LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.


  2. What is a motion sensor?

    A motion sensor is a device that recognizes physical movement on a product or in the surrounding area. Real-time physical and/or kinetic movements can be detected and recorded by it.

    Another name for a motion sensor is a motion detector.

    The motion sensors in LED lighting area are usually used for detecting passing persons or cars. When there are no persons or cars, the LED lights could work under energy-saving mode, for example 30% power. If there are persons or cars coming and detected by motion sensor, the motion sensor would turn the LED lights to 100% power automatically.


  3. How can optics and controls help mitigate any negative impacts of public light?

    Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.
