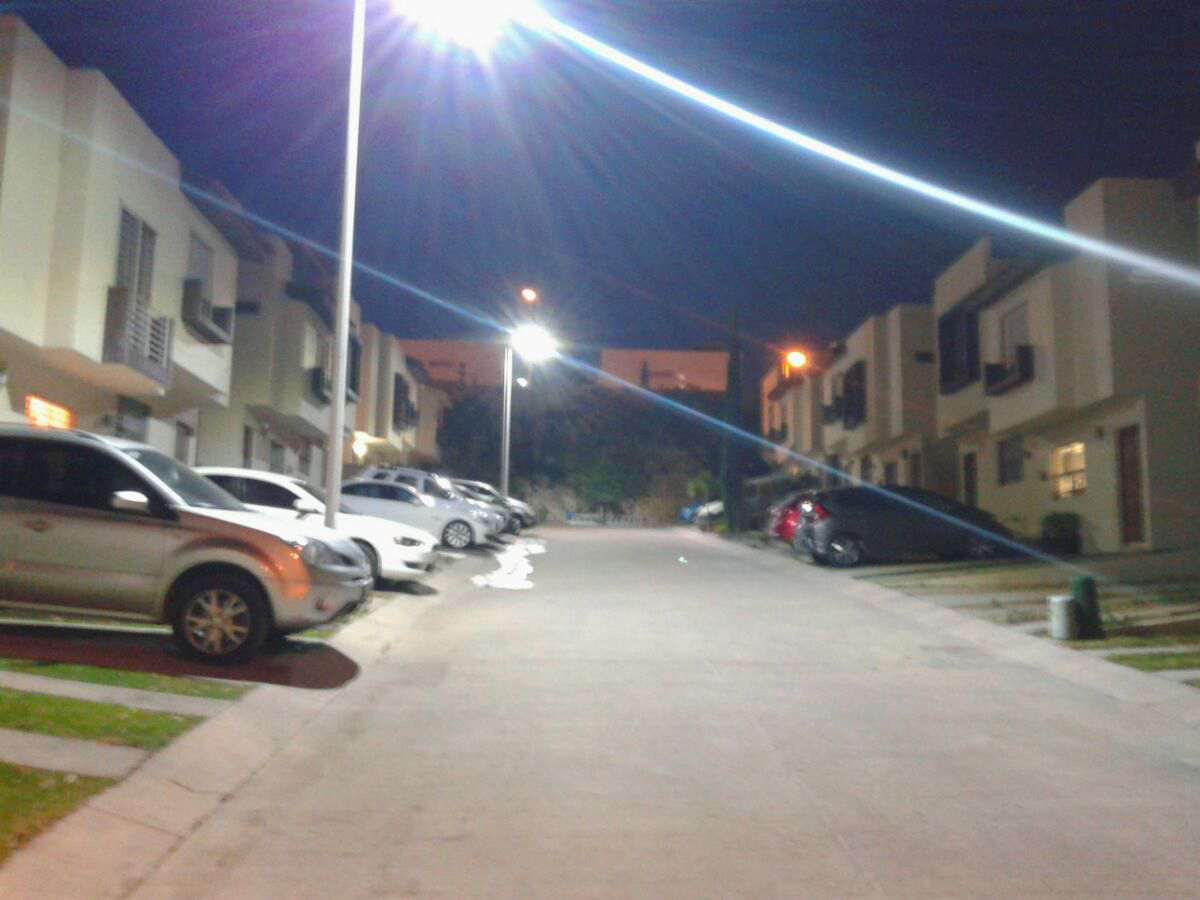

LED Street Light Project in Mexico

The residential road lighting project in Mexico was completed in 2018. After the DIALux lighting design, we chose 5 sets of 57W ZGSM full die-casting Kmini series LED street lighting fixtures, mounted at a height of 7.5m. The type 2M optics we choose makes the light output could not only illuminate the residential road but also could cover the parking lot on both sides of the road. What's more, the light won't directly into the houses to affect the rest of the residents.


Products Details


Product: 57W LED Street Light

Model No.: ZGSM-LD57Kmini

LED: Lumileds

Driver: Meanwell

CCT: 5700K

Optics: 2M

Installation Height: 7.5m

QTY: 5 Units


Video

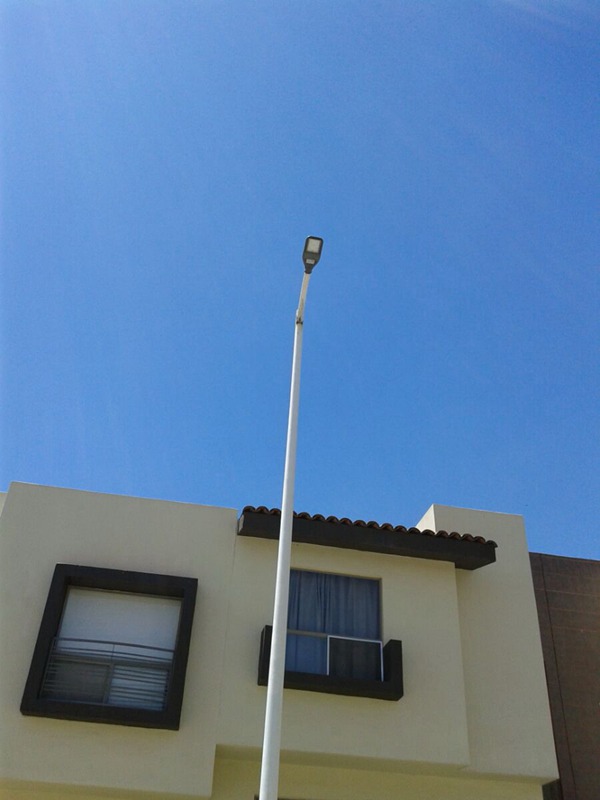

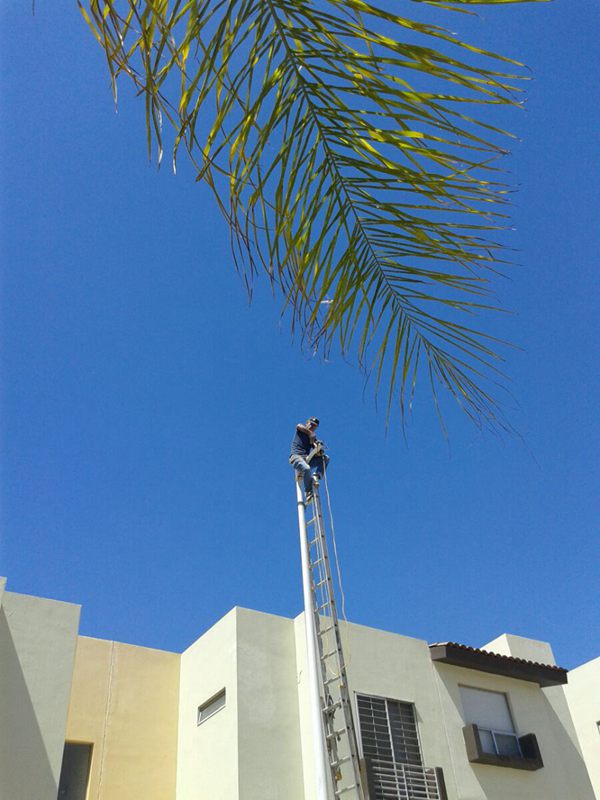

Project Photos


LED Street Light Project in MexicoLED Street Light Project in Mexico

LED Street Light Project in Mexico


Specification


ModelZGSM-LD57Kmini
LED BrandLUMILEDS® LUXEON 3030
Driver BrandInventronics
Normal Wattage57W
LED Chip Quantity3030: 80pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency137 lm /w
Lamp Rated Lumen output7809 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType II Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5 years



Download


Installation Manual_StreetLight_Kmini.pdf

Data Sheet_Kmini_StreetLight.pdf


Related Products


LED Street Light Project in MexicoLED Street Light Project in MexicoLED Street Light Project in Mexico

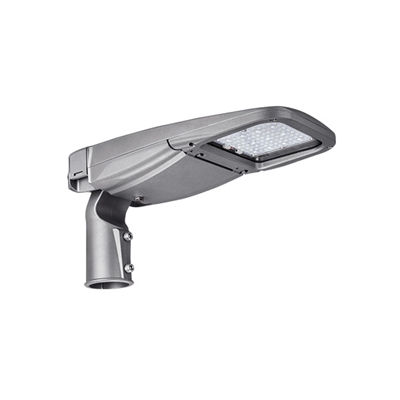

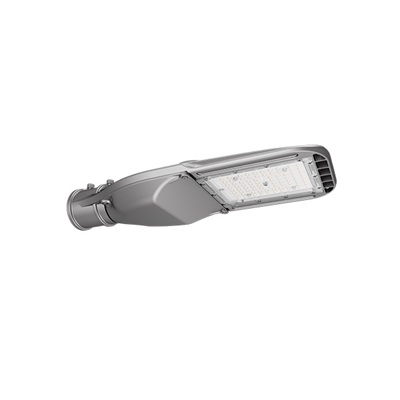

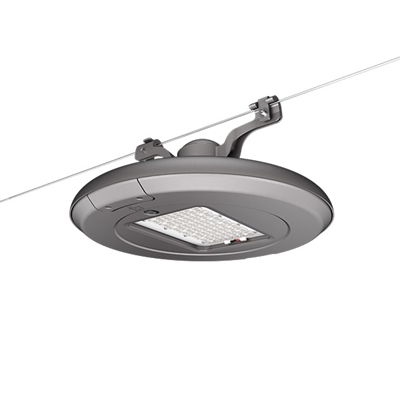

57w Economical Residential Street Lights55w Tool-less Parking lot Light56W Suspended LED Street Lighting Fixtures
LED Street Light Project in MexicoLED Street Light Project in MexicoLED Street Light Project in Mexico

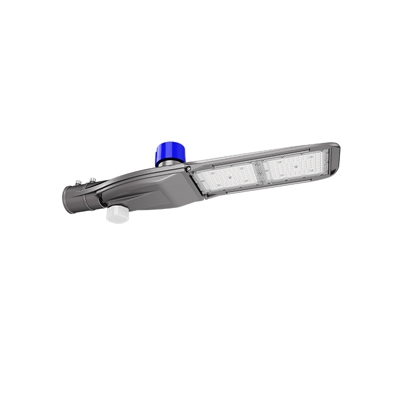

60w Modular Design LED Roadway Lighting70W LED Street Light with Motion Sensor80 watt Dali Dimming Street Light LED


Related Projects


LED Street Light Project in MexicoLED Street Light Project in MexicoLED Street Light Project in Mexico
LED Street Light Project In Australia
LED Street Light Project In Uruguay

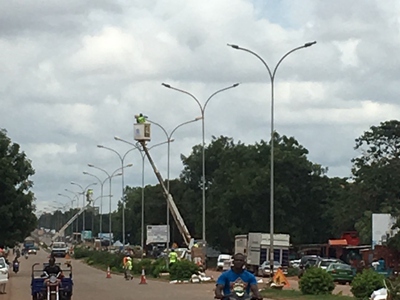

LED Street Light Project In Burkina Faso
