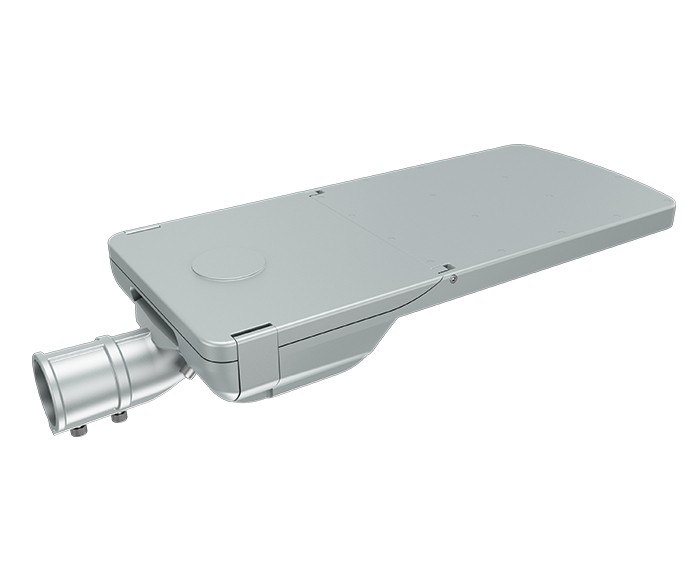

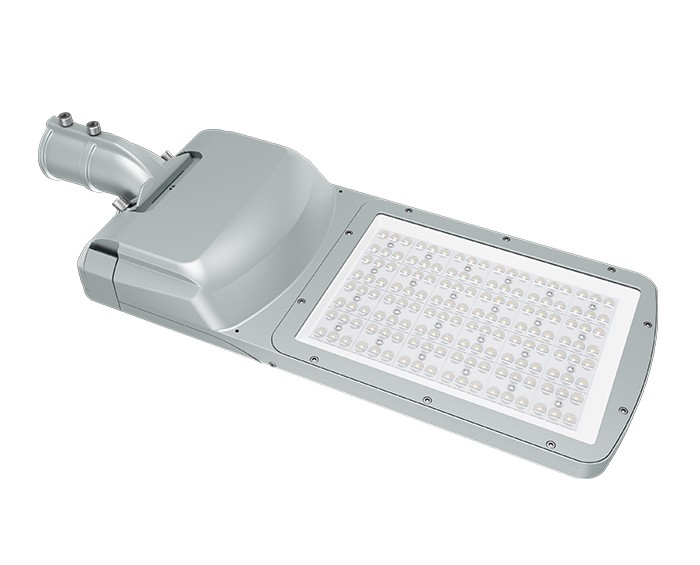

High cost performance LED Street Light
80 watt Dali Dimming Street Light LED has High-efficiency LED, and low-glare design combined with the latest management and intelligent lighting control systems. This Rifle series LED street lights has different optical designs throughout the range to best meet the needs of urban lighting.
1.70% energy saving, short ROI period
2. Up to 100, 000hrs @ L70, low maintenance cost
3. World-class, approbated quality components (LEDs /Driver /etc.)
4. Support horizontal and vertical mounted, suitable for different light poles
5. Tool-less opening of driver box, ease of maintenance
6. 5 years warranty
| Model | ZGSM-ST17-80M /ZGSM-ST17-80M+ |
| LED Brand | LUMILEDS 3030 OR 5050 |
| Driver Brand | Inventronics /Other brands on request |
| Normal Wattage | 80W |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 150-170lm/w |
| Lamp Rated Lumen output | 12000-13600 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Photometric Type | Type II, Type III |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | High-pressure die-cast aluminum |
| Cover | Tempered glass |
| Rating | IP66 IK10 |
| Protection | Class I (Default) /Class II |
| Certification | CE, RoHS, ENEC, CB, LM79, LM80, TM-21 |
| Dimming Options | 1-10V Dimming (Default) /Timer Dimming |
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, DALI Dimming |
| Color Options | Gray (Default) /Black (available on request) |
| Warranty | 5 years |
Other important factors for the best quality LED street lights
Lumens/watts (light output) for the entire street lamp.
Asymmetrical distribution of light through lenses or other arrangements. (It gives more light output to the curb and less output to the opposite side.) ）
The height of the lamp pole should be based on the rated power of the street lamp.
A major factor in a street lighting design scheme
· The brightness level should be appropriate.
· Brightness uniformity must be achieved.
· The degree of glare limitation is always incorporated into the design scheme.
· The lamp spectrum for visual clarity depends on the appropriate luminaire.
· The effectiveness of visual guidance is also an important factor.
