Multi-purpose 27w Tool-less UFO Street Light

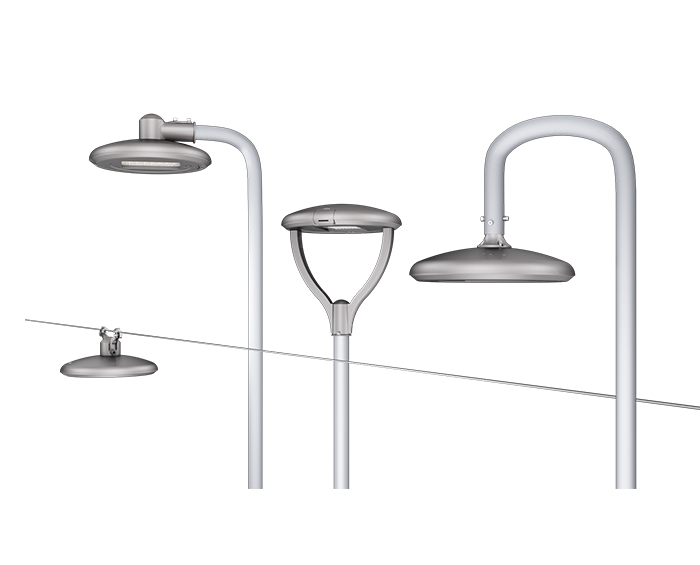

27W Tool-less UFO Street Light is a multi-purpose street light, Post-Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional. It looks like a UFO, with a modern shape, suitable for all street light installation environments.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED damage won't affect others' normal work

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

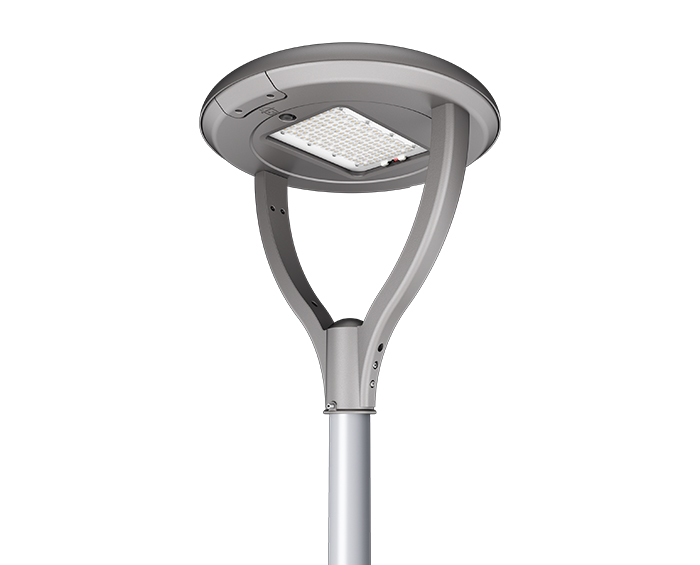

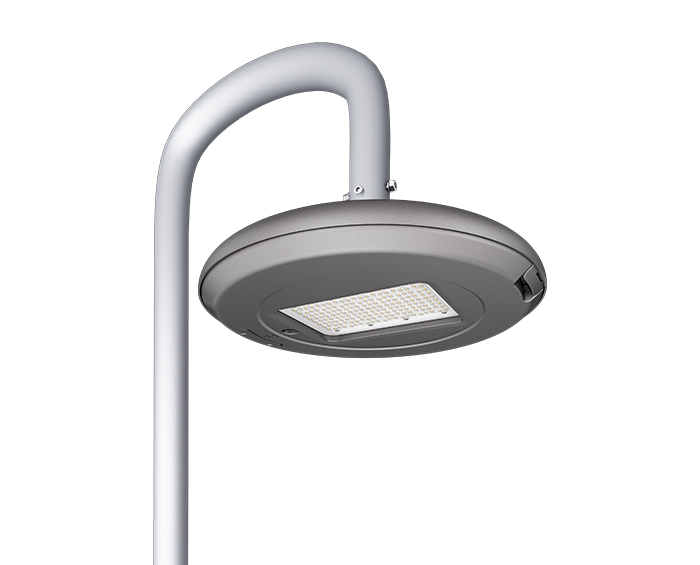

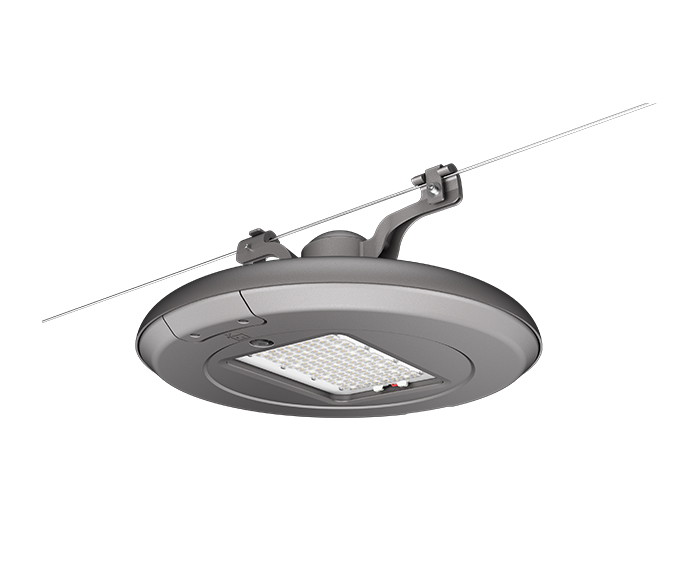

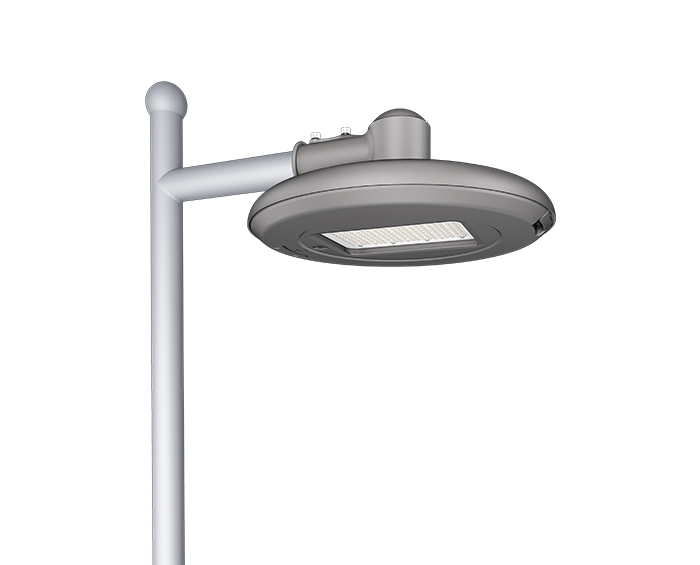

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.


Specifications

ModelZGSM-LD27LMX( X= A,B,C,D)
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage27W
LED Chip Quantity3030: 72pcs 5050: 36pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output3510-4050 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDark grey
Warranty7 years


FAQ

1. What is intelligent or smart street lighting?

Smart street lights refer to public street lights that adapt to the movement of pedestrians, cyclists, and cars in smart cities. Also known as adaptive street lighting, it lights up when it senses activity and dims when it doesn't. This is different from traditional fixed lighting, as well as dimmed lighting on a timer.


2. How many street lights can one gateway control?

200 street light controller

One IoT gateway can communicate with up to 200 street light controllers and motion sensors. This means you can monitor up to 200 smart street lights with a single gateway.


3. How to reduce the glare of street lights?

To minimize discomfort, they recommend minimizing the amount of light that hits the eye and the brightness contrast between the street lights and the background, which can be achieved through the good optical design of the LED light unit and the careful placement of each street light.
