LED Street Light Project in China

The city's main street lighting project in Wenchuan, Sichuan Province, China.  The city of Wenchuan experienced a 8.0 magnitude earthquake on May 12, 2012, and the city was severely damaged. ZGSM supplied 250 sets of 60W, 250 sets of 90W and 500 sets of 120W D series LED streetlights for post-disaster road reconstruction. Sichuan Province is an earthquake-prone area. Our company's street lights have been tested for vibration and can be safely installed and used in Sichuan Province. City leaders and citizens of Wenchuan expressed high affirmation of the quality and lighting effect of our street lamps.


Products Details


Products: 60W LED Street Light & 90W LED Street Light & 120W LED Street Light

Model No.: ZGSM-LD60WD & ZGSM-LD90WD & ZGSM-LD120WD

LED: Lumileds

Driver: Meanwell

CCT: 6500K

Optics; Type 2M

QTY: 1000+ Units

(Note: D series LED street lights have been discontinued and replaced by H series.)


Video

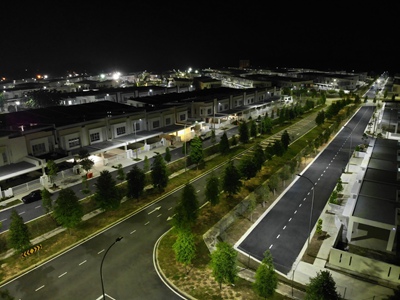

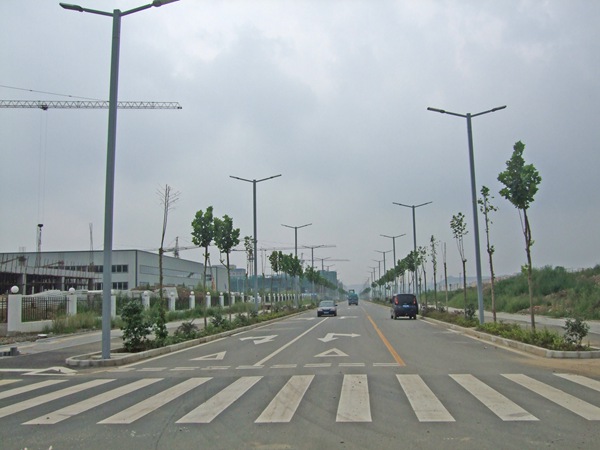

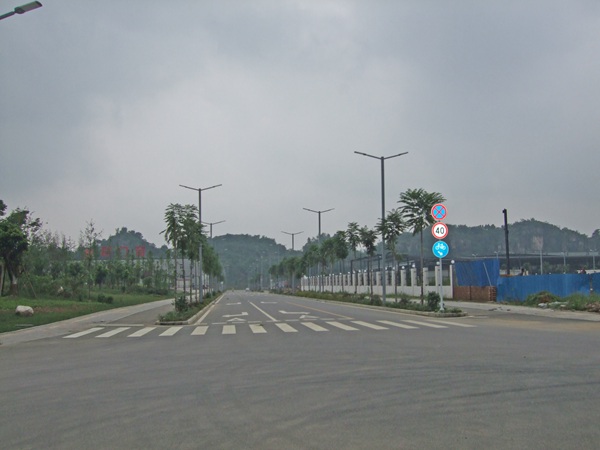

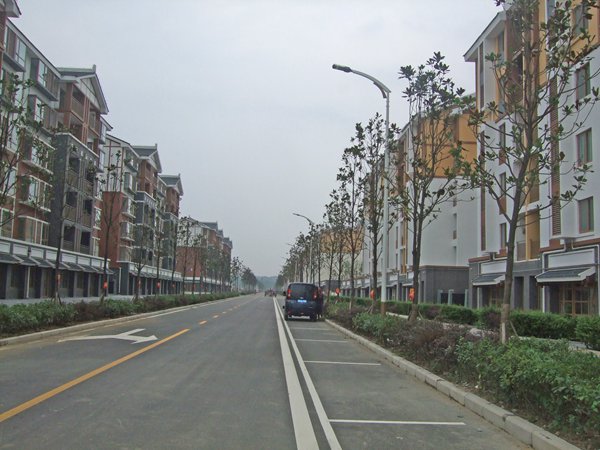

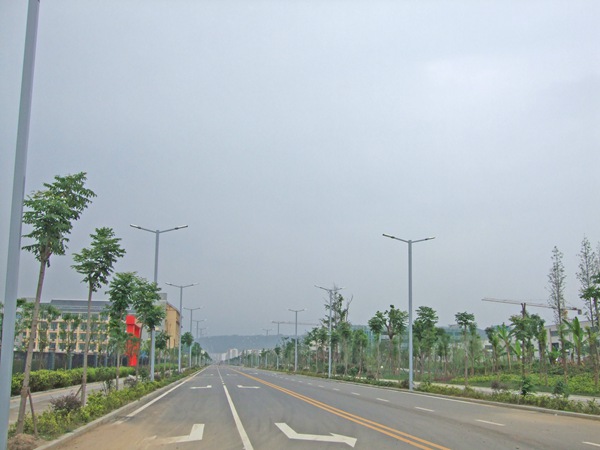

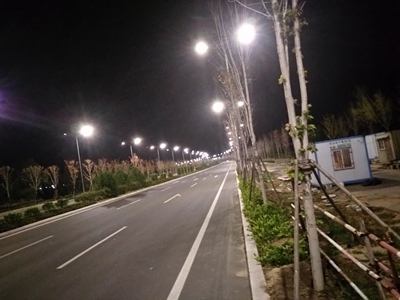

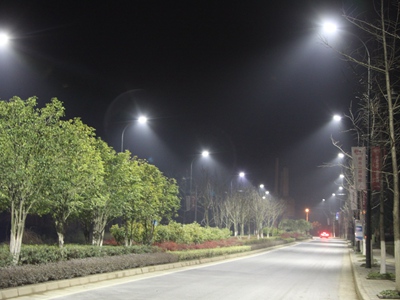

Project Photos


LED Street Light Project in ChinaLED Street Light Project in China

LED Street Light Project in ChinaLED Street Light Project in China


Specification


ModelZGSM-LD120H4
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage120W
LED Module Quantity3 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output16800-19800 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf

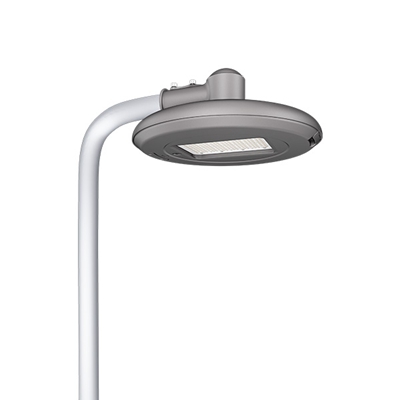

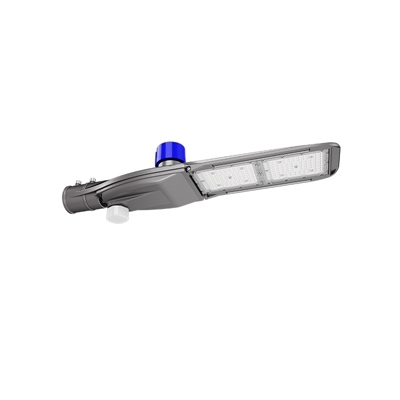

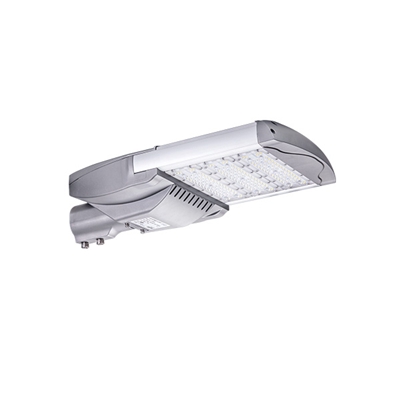

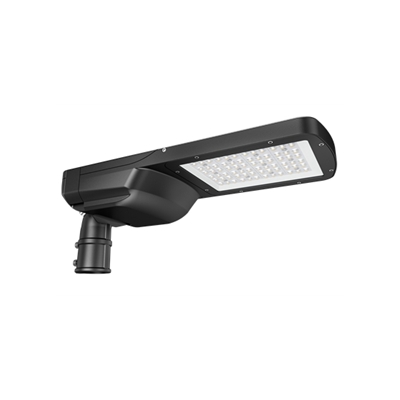

Related Products


LED Street Light Project in ChinaLED Street Light Project in ChinaLED Street Light Project in China

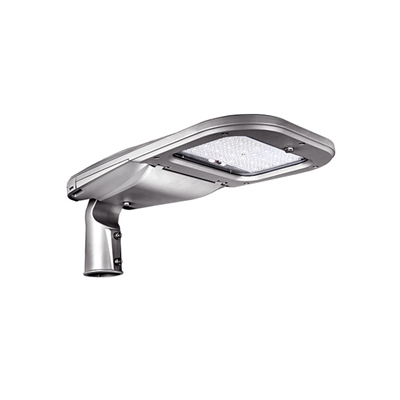

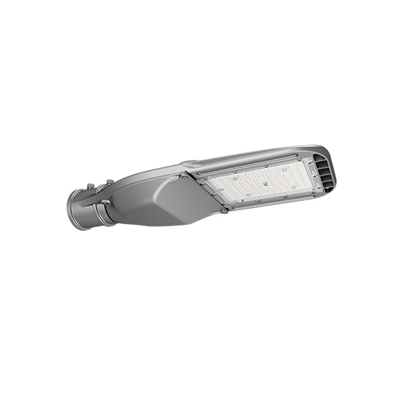

ENEC Approved 120w LED Module LightsFull die cast housing 90w Tool-less Street LightMulti-purpose 56w Tool-less LED Street Lights
LED Street Light Project in ChinaLED Street Light Project in ChinaLED Street Light Project in China
100000 Hours Lifespan 200w Highway Street Lights57w Economical Residential Street Lights90w Economical LED Street Light


Related Projects


LED Street Light Project in ChinaLED Street Light Project in ChinaLED Street Light Project in China

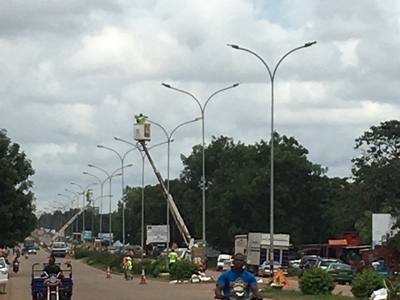

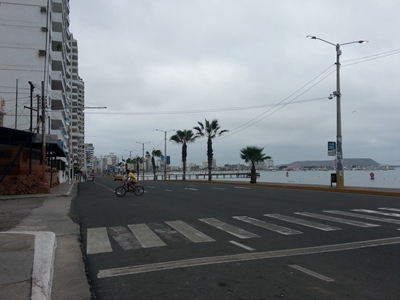

LED Street Light Project In UruguayLED Street Light Project In Burkina FasoLED Street Light Project In Ecuador
LED Street Light Project in ChinaLED Street Light Project in ChinaLED Street Light Project in China

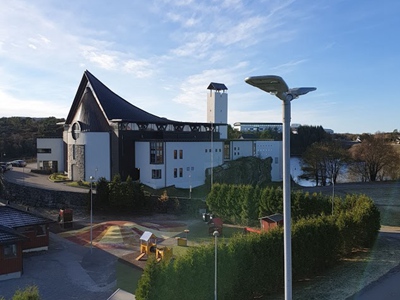

LED Street Light Project in NorwayLED Street Light Project in CzechLED Street Light Project In Thailand


Related Blogs


LED Street Light Project in ChinaLED Street Light Project in ChinaLED Street Light Project in China
LED Street Light Procurement Skills

Principle And Characteristics Of

 High Power White LED Street Light

The Reason For The Rapid Development

Of LED Street Light

LED Street Light Project in ChinaLED Street Light Project in ChinaLED Street Light Project in China

LED Street Light System Installation Process

Compare The Advantages And

Disadvantages Of LED Street Lights

Briefly Describe The Technical Requirements

Of Led Street Lights


People Also Ask


  1. How do LED street lights work?

    In comparison to traditional street lights, which typically include a reflector on the rear side of a high-pressure sodium lamp, most LED street lights have a lens on the LED panel that is designed to cast its light in a rectangular pattern.


  2. What are the benefits of LED solutions?

    · Significant energy savings - more than 60% as compared to typical street lighting

    · Good color rendering, which makes colors appear more natural.

    · Long service life - up to 100,000 hours, resulting in lower maintenance costs.

    · White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.

    · When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.


  3. What is 3G vibration rating?

    It's critical to understand that a luminaire's 3G certification denotes its ability to sustain fundamental resonant frequency vibrations for 100,000 cycles in each plane (x, y, z). In light of the product's inherent resonance, this is meant to offer the worst-case scenario.
