Tool-less LED Street Light

Home  /  Products / LED Street Light / Tool-less LED Street Light
  • Multi-purpose 56w Tool-less led external lights
  • Multi-purpose 56w Tool-less led external lights
  • Multi-purpose 56w Tool-less led external lights
  • Multi-purpose 56w Tool-less led external lights

Multi-purpose 56w Tool-less led external lights

56w Tool-less led external lights is a round multi-purpose outdoor lighting with a waterproof rating of IP66, Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional. Tool-less open for easy installation, replacement, and maintenance. 7 years limited warranty available.



Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED damage won't affect others' normal work

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

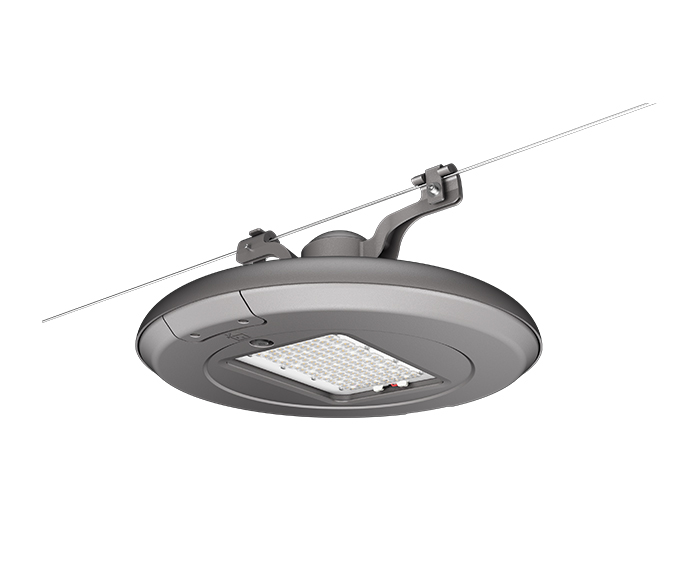

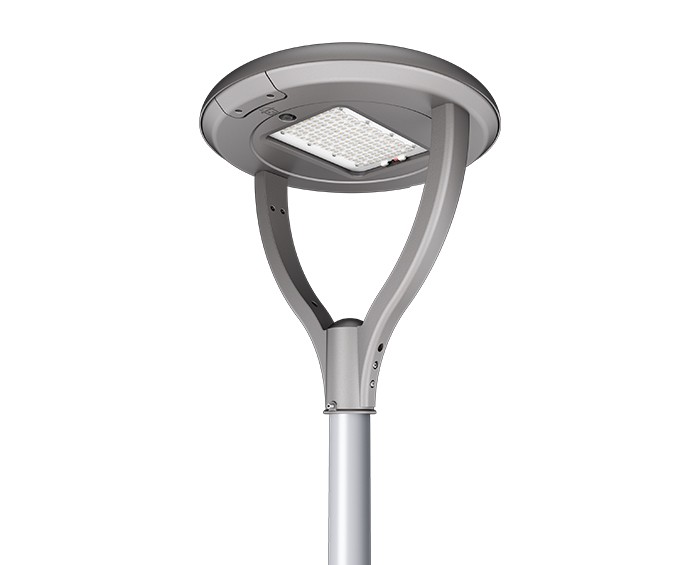

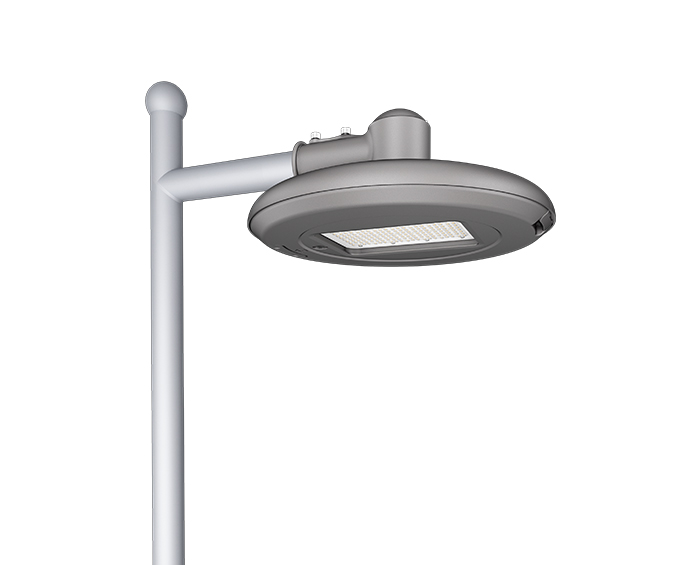

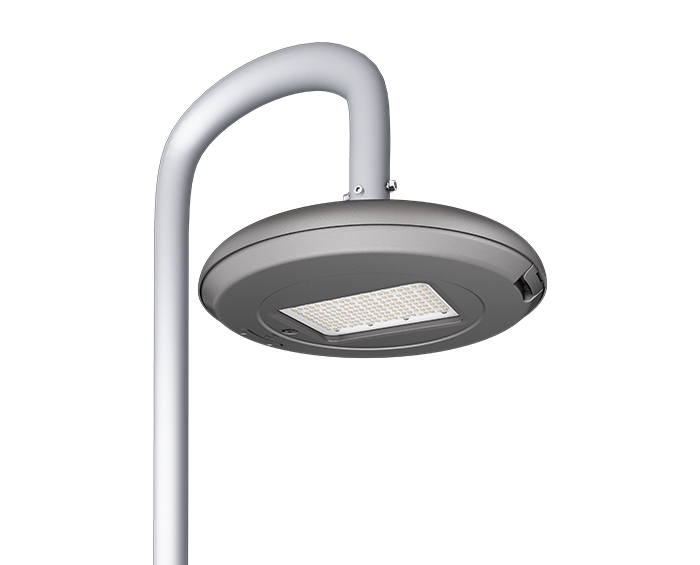

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.


ModelZGSM-LD56LMX( X= A,B,C,D)
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage56W
LED Chip Quantity3030: 120pcs 5050: 60pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output7280-8400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium;Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years


1. Is the 5000k suitable for outdoor lighting?

For residential outdoor lighting, the primary Kelvin you use ranges from 2500k-4000k. A useful rule of thumb: use a warmer color temperature of about 2500k-2700k on architectural elements and a cooler color temperature between 3000k-4000k for trees and plants.

2. How are photocells used on street lights?

The scientific principle of photocell

They are essentially photoresistors because their output is proportional to the amount of light that falls on them. Because of this effect, they are also called photoresistors or light-dependent resistors.

3. What IP ratings are required for outdoor lights?

IP44 and above

IP ratings between 44 and 65 can be used for indoor and general outdoor use. However, any device below IP44 can only be used indoors. IP44 outdoor lights are rainproof and safe for outdoor use, however, they should not be exposed to pressurized water, such as jet cleaning.

The outdoor LED street lights and LED flood lights produced by ZGSM are all IP66 waterproof designed and no problem to be used for outdoor lighting applications such as city street lighting, square lighting, park lighting, parking lot lighting, billboard lighting and so on.
