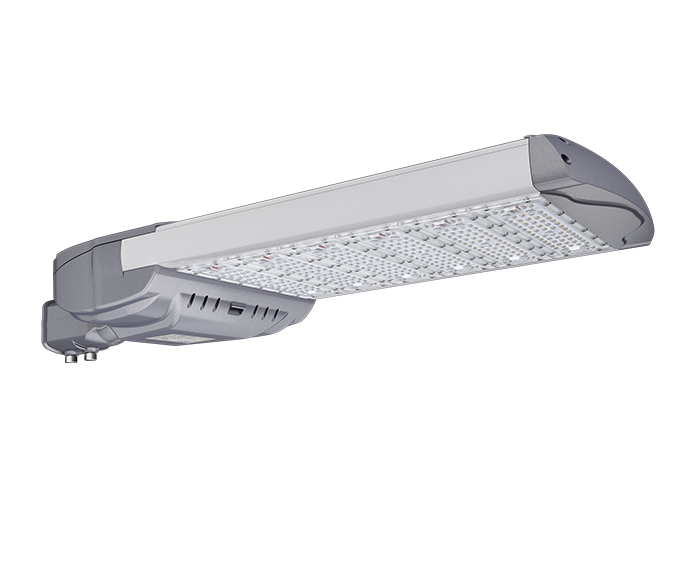

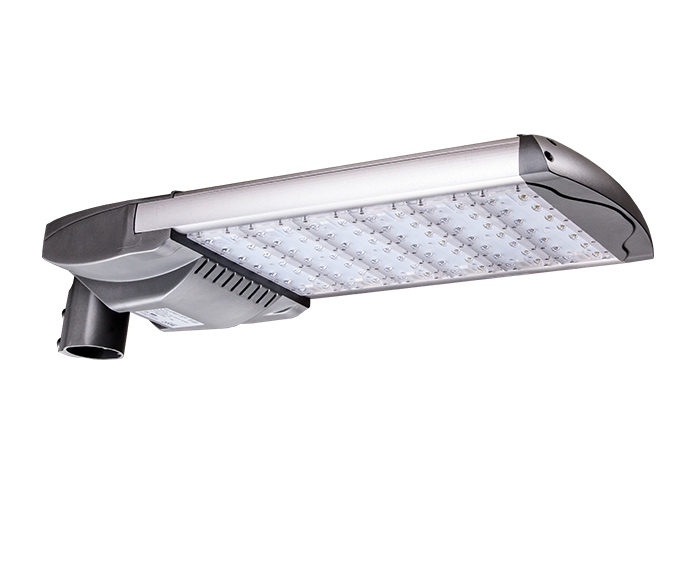

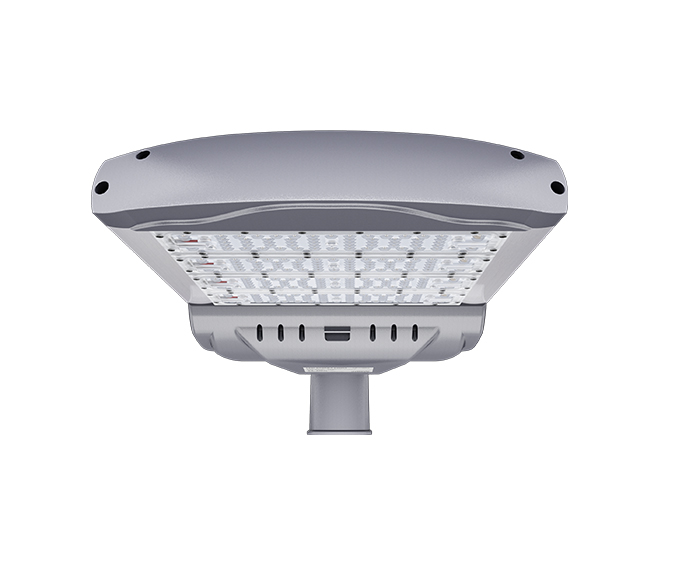

IP66 IK10 300W Modular LED Lights

IP66 IK10 300W Modular LED Lights use Modular designs based on standardized units or size construction to achieve the flexibility and versatility of modular luminaires, which are our company's proven products for street lights, and high bay lights, floodlights, canopy lights, and tunnel lights.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD300H5
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage300W
LED Module Quantity6 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output39000-48000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, ENEC, CB, LM80, LM79, FCC, IP66, IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control

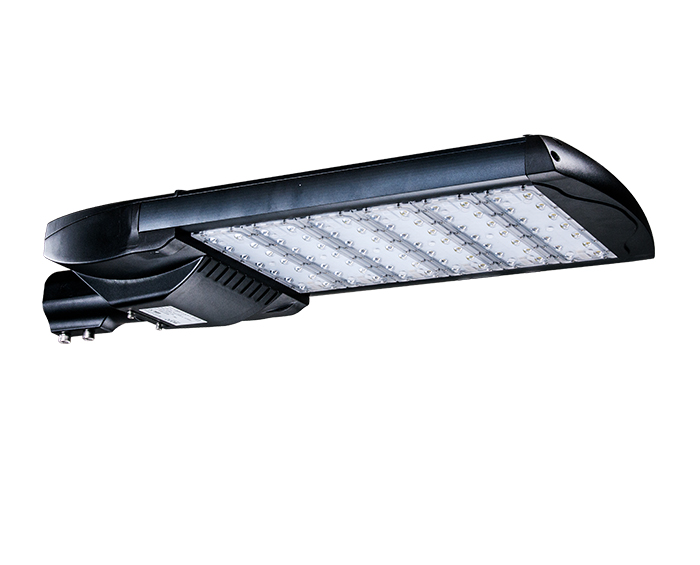

Color OptionsSilver or Black
Warranty7 years


FAQ

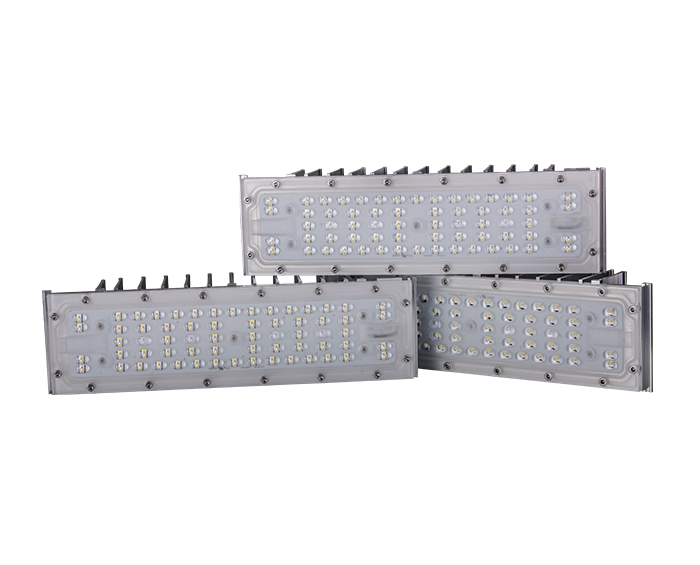

1. What are modular LED lights?

A light-emitting diode (LED) module is a stand-alone LED device designed to operate independently or plug into a compatible unit. LED modules are often used to create energy-efficient or portable lighting. When powered on, the modules emit bright light from a small bulb.


2. What is the LED module made of?

LED modules, also known as LED arrays, are simple LED assemblies. They use one or more diodes arranged on the board. Circuit boards used in LEDs include printed circuit boards (PCBs) made of materials designed to improve heat dissipation.


3. What is a replaceable LED module?

LED modules that provide a light source can be easily replaced without having to replace the entire downlight – making it easier for retailers, hoteliers, restaurateurs, or homeowners, among others, to change the color temperature and lumen output.
