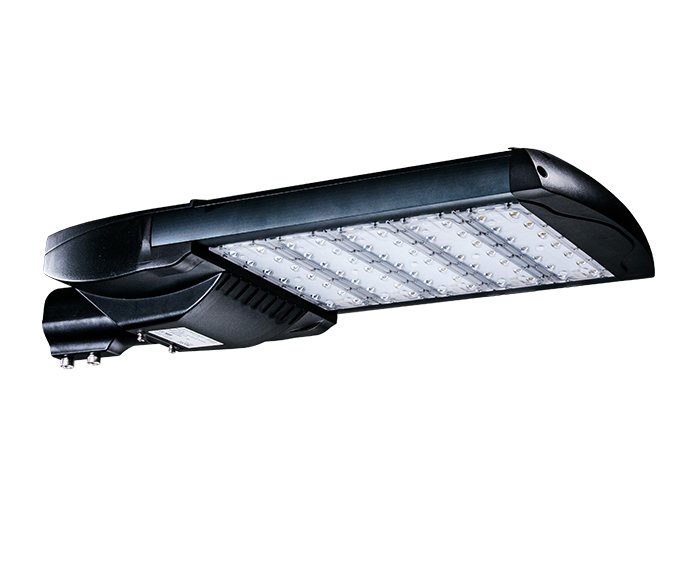

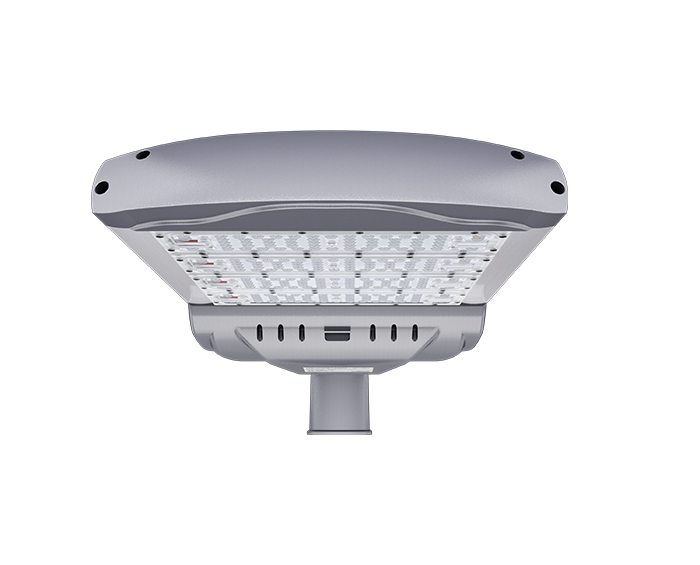

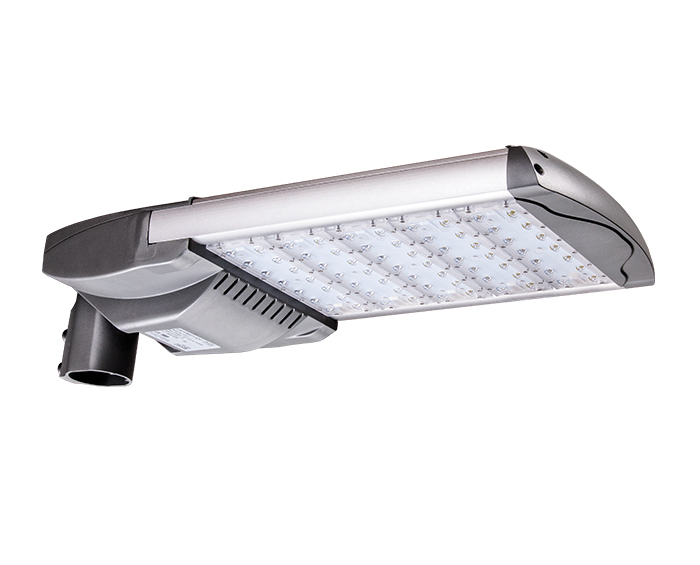

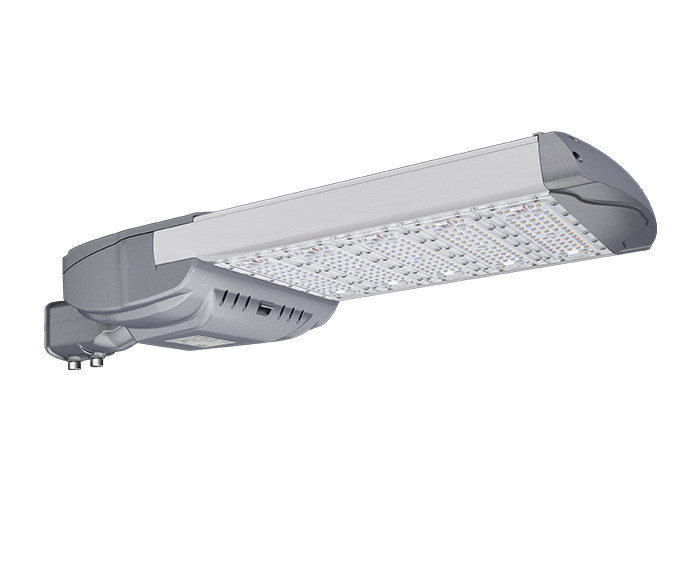

IP66 IK10 240w Modular Design LED Street Light Fixtures

IP66 IK10 240w modular design LED street light, the modular design is not only conducive to the heat dissipation of the lamp but also convenient for maintenance. There are other derivatives of this design, like modular design high bay lights, recessed lights, floodlights, tunnel lights

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

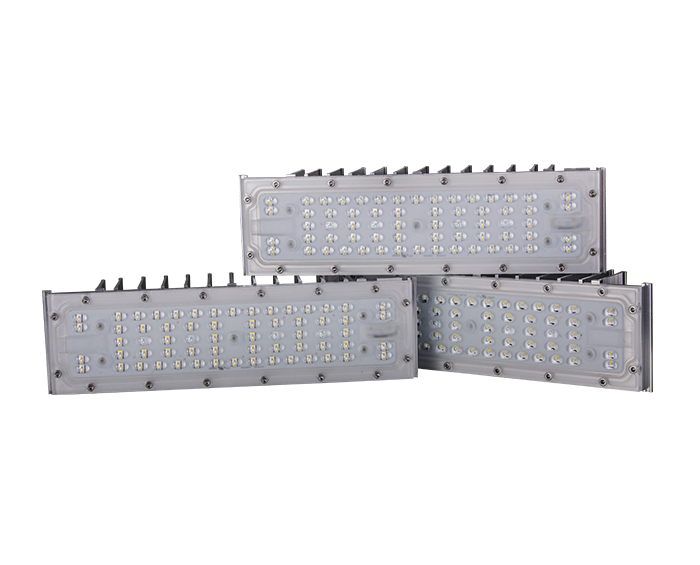

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty


Specifications

ModelZGSM-LD240H5
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage240W
LED Module Quantity5 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output31200-38400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium,TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


FAQ

How many lumens is a led street light?

ApplicationLumens Requirement
Landscape50-300 lumens
Street Lights for residential areas5000 lumens
Street Lights for roadways6,400-18,000 lumens
High mast for highways25,000-100,000 lumens

Specifying brightness in lumens makes more sense, helping you get the correct brightness you need by specifying the number of lumens you need for your LED outdoor lighting.

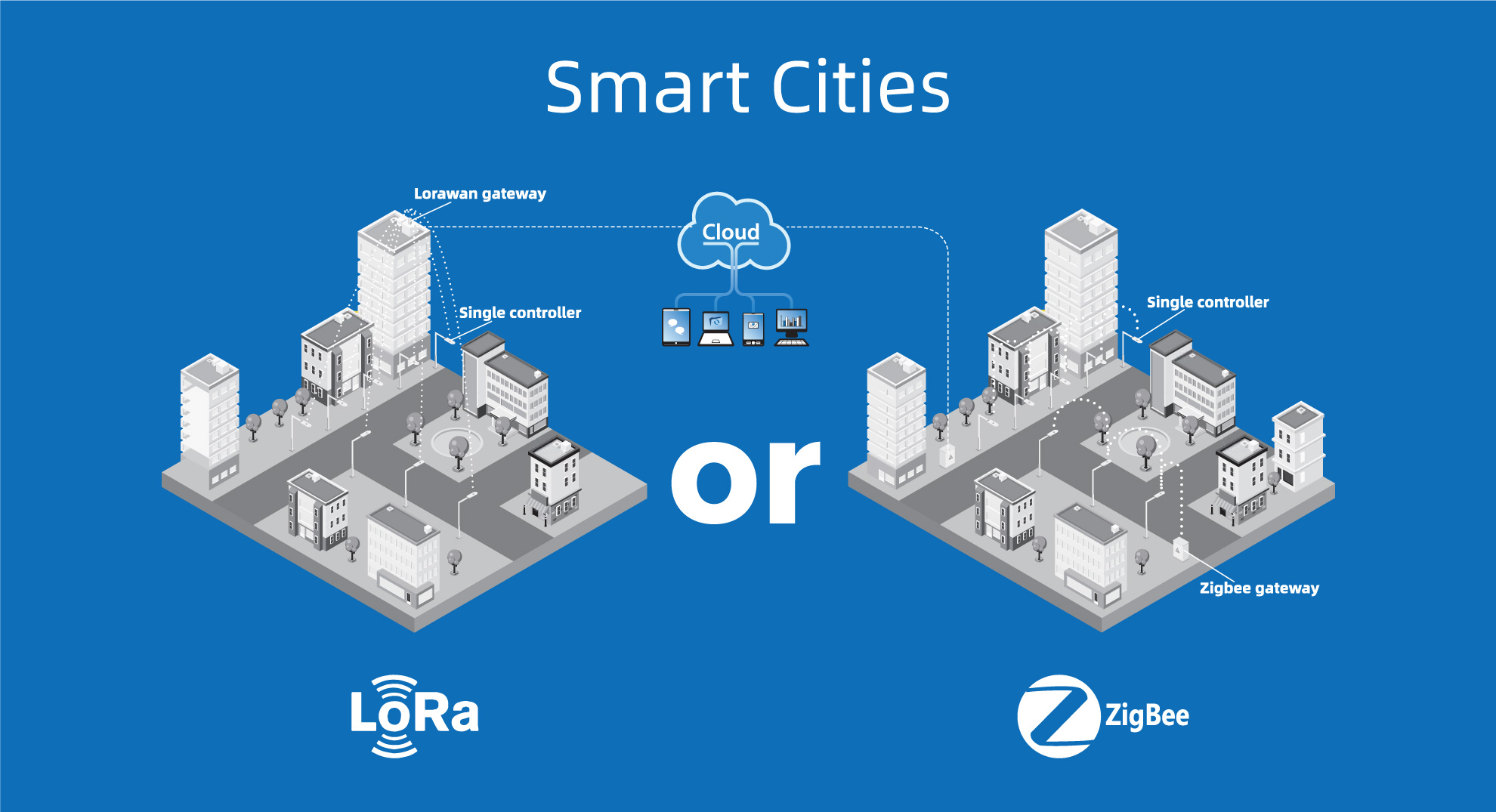

What is a smart street light system?

A smart street light is a public lighting fixture that incorporates technologies such as cameras, photocells, and other sensors to introduce real-time monitoring capabilities. Distributed wireless telemetry, remote control, and remote communication control system composed of computer, wireless communication data transmission, spread spectrum power carrier communication technology, computer intelligent information processing and energy-saving electrical control, and other technologies. It has the functions of intensity adjustment of light brightness, the soft start of light, timing control, scene-setting, and other functions; and achieves the predetermined characteristics.


IP66 IK10 240w Modular Design led street light fixtures
