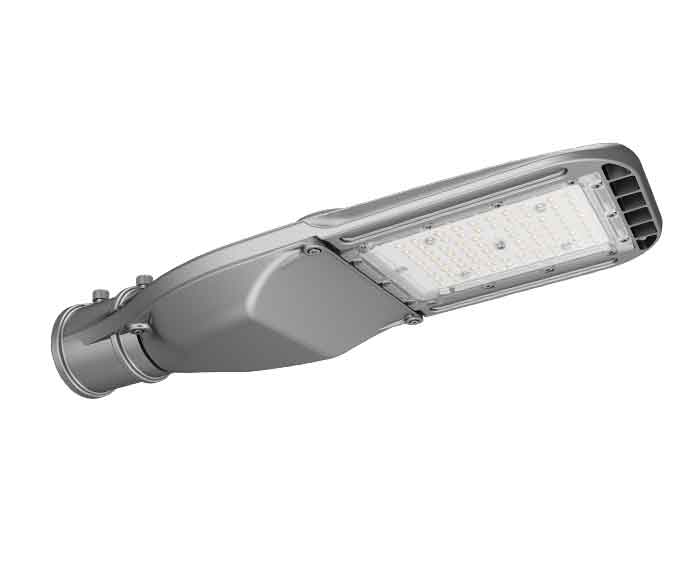

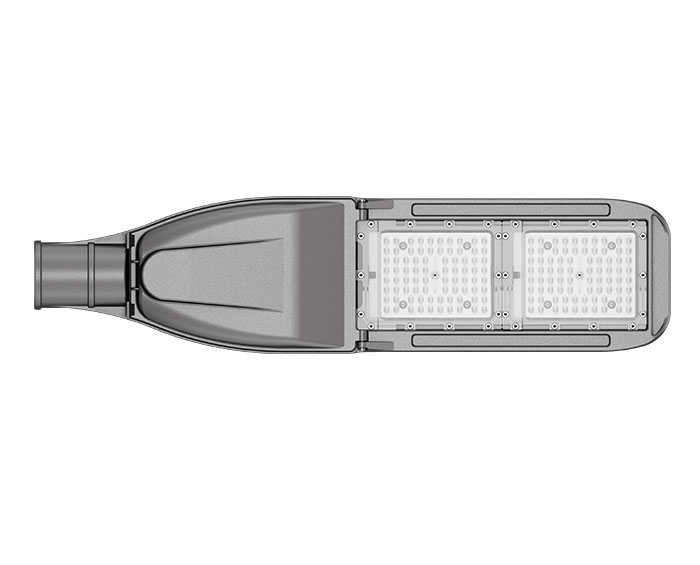

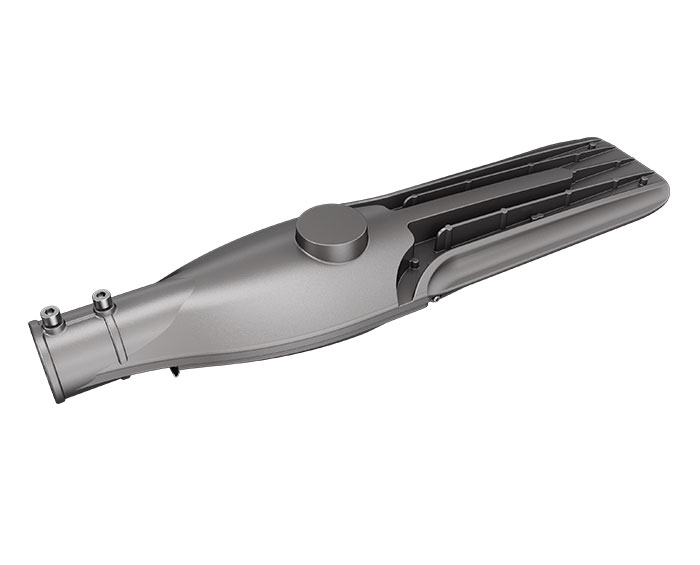

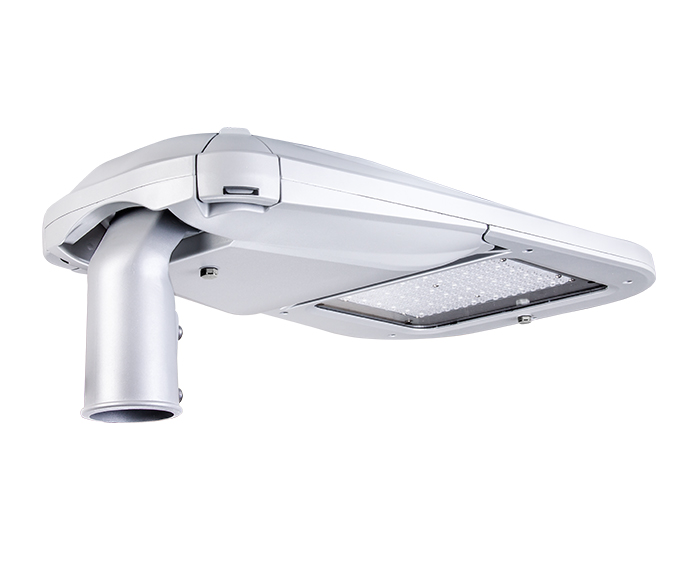

100w Economical Smart LED Street Light

100w Economical Smart LED Street Light is the main economical street light. The small and exquisite design saves transportation costs. The optional intelligent controller realizes urban smart lighting and saves maintenance time. It is very suitable for engineering projects.

PRODUCT DESCRIPTION

Key Features

● Wide power range: 60W~130W.

● Smart design, low transportation costs.

● Special circuit design, single LED damage won't affect others' normal work.

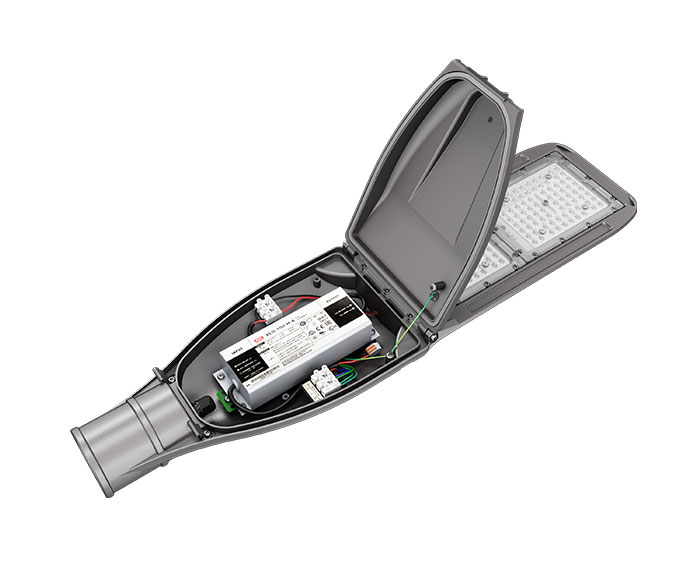

● Tool-less open for easy installation, replacement, and maintenance.

● High Lumen output up to 160lm/ w with high-quality LED chips.

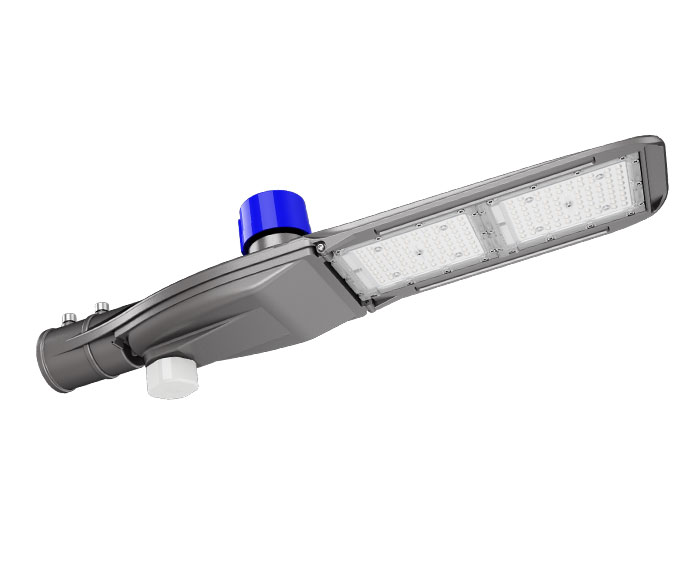

● Multiple lighting control options are available, e.g.1-10V, photocell, and motion sensor.

● Designed to last at least 100,000 hours at L70.


Specifications

ModelZGSM-LD100Kmini2
LED BrandLUMILEDS® LUXEON 3030/ 5050
Driver BrandInventronics/Meanwell
Normal Wattage100W
LED Chip Quantity

3030: 112pcs  5050: 44pcs

Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency3030: 137 lm /w  5050: 150 lm /w
Lamp Rated Lumen output3030: 13700 lm  5050: 15000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric Type3030: Type II Medium  5050: Type II Medium BLS
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK10, ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5 years


FAQ

1. What is a smart LED street light?

Smart street lights are public lighting fixtures that combine technologies such as cameras, photosensitive photocells, and other sensors to introduce real-time monitoring capabilities. Through gateway control, smart city lighting is realized. One gateway could control up to 200pcs LED Lamps.


2. What can smart street lights do?

The technology can remotely control the output of individual street lights, detect faults, monitor energy performance, and, when combined with sensors, can even facilitate real-time alerts for city-wide issues such as traffic flow, parking spaces, power outages, and possible accidents.


3. How do street light sensors work?

Active infrared sensors emit low-intensity infrared energy to specific areas to detect vehicles. When this energy is interrupted by the presence of the vehicle, the sensor sends a pulse to the traffic light to change the light.
