Economical 100 Watt LED Street Light

Economical 100 watt led street light, which power ranges from 60W to 130W, exquisite and compact design saves transportation costs, combined with Photocell or Smart control to achieve smart city lighting, and can also be used with solar accessories as the street lamp head of split solar street lights.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

● Wide power range: 60W~130W.

● Smart design, low transportation costs.

● Special circuit design, single LED damage won't affect others' normal work.

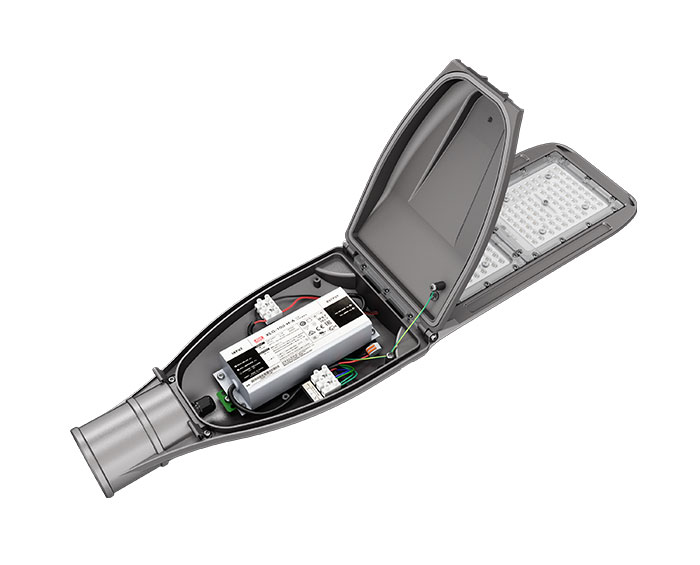

● Toolless is open for easy installation, replacement, and maintenance.

● High Lumen output up to 160lm/ w with high-quality LED chips.

● Multiple lighting control options are available, e.g.1-10V, photocell, and motion sensor.

● Designed to last at least 100,000 hours at L70.


Specifications

ModelZGSM-LD100Kmini2+
LED BrandLUMILEDS® LUXEON 3030/ 5050
Driver BrandInventronics
Normal Wattage100W
LED Chip Quantity

3030: 160pcs  5050: 56pcs

Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency3030: 146 lm /w  5050: 154 lm /w
Lamp Rated Lumen output3030: 14600 lm  5050: 15400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type3030: Type II Medium  5050: Type II Medium BLS
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK10, ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5 years



FAQ

1. What are the requirements for good street lighting?

A major factor in a street lighting design scheme

  • The brightness level should be appropriate. ...

  • Brightness uniformity must be achieved. ...

  • The degree of glare limitation is always incorporated into the design scheme. ...

  • The lamp spectrum for visual clarity depends on the appropriate luminaire. ...

  • The effectiveness of visual guidance is also an important factor.


2. How to choose a street lamp?

Consumers should not buy products based on the energy consumed (watts) but should consider how much light (lumens) they provide us with. Wattage is a measure of a light bulb's energy consumption, not the amount of light it emits. LEDs use fewer watts to emit the same brightness (lumens).


3. What is the spacing of street lights?

The spacing between the two poles should be about 2.5-3 times the height of the poles. Shorter light poles should be mounted at close intervals. The density, travel speed, and type of light source along the corridor will also determine the ideal height and spacing.
