LED Street Light Project in Malaysia

The residential street lighting project in Malaysia was finished in 2016. It installed more than 500 sets of 135W H series street lights LED on the poles on both sides of streets. We improved the lighting conditions by making it 50% brighter. What's more, we provided a solution with the right light distribution and mounting angle of LED street lights, which could focus the light on the street and will not shine into the residential buildings on both sides of the street, causing light pollution and affecting the rest of the residents. Both our clients and the residents are satisfied with the lighting effect after installing our H series street light LED.


Products Details

135W LED Street Light, Model: ZGSM-LD135H, 5000K, Type 3M, 500PCS+


Video

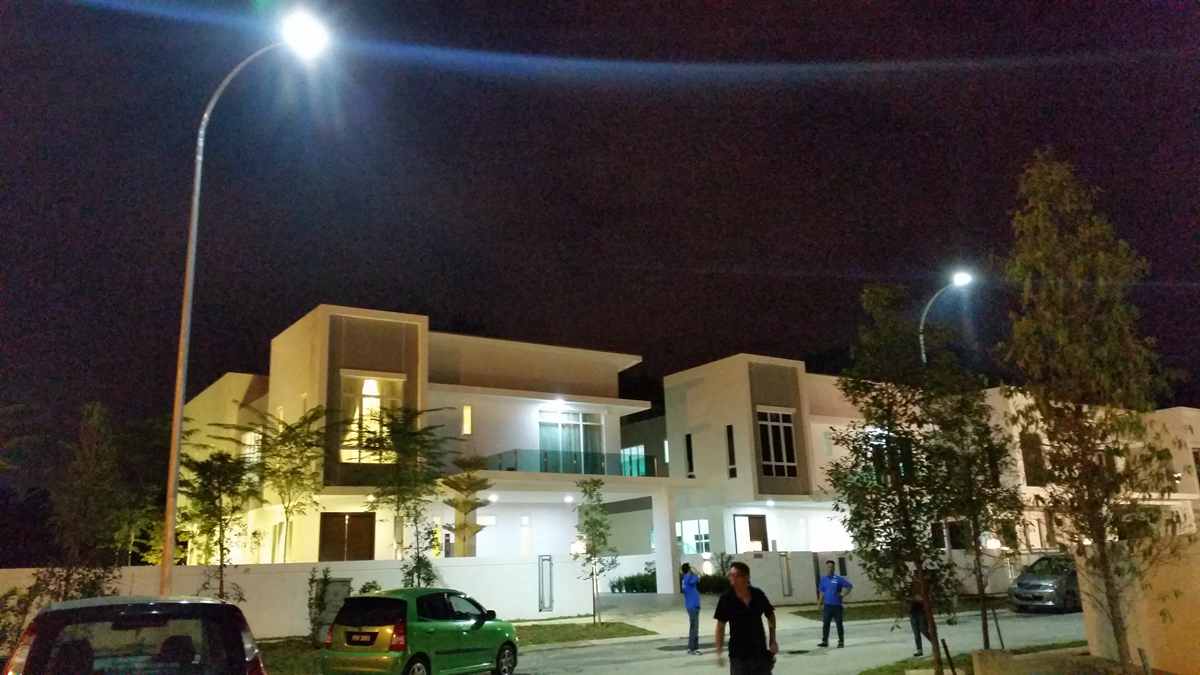

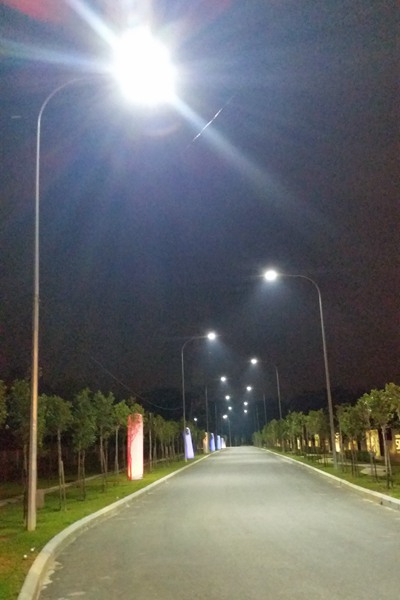

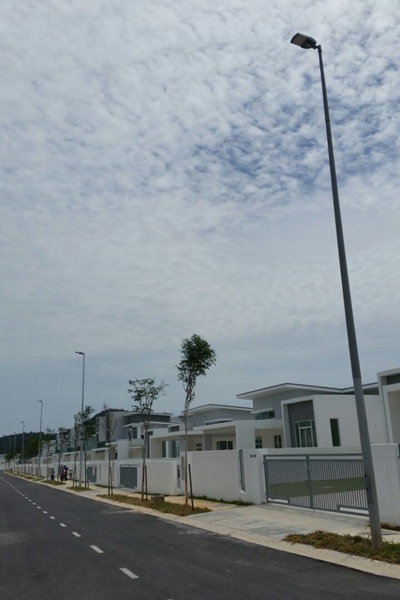

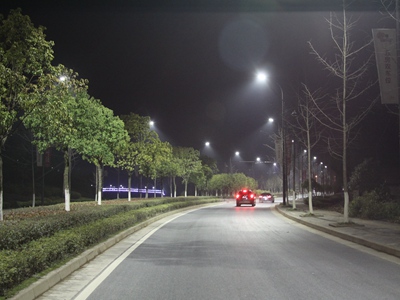

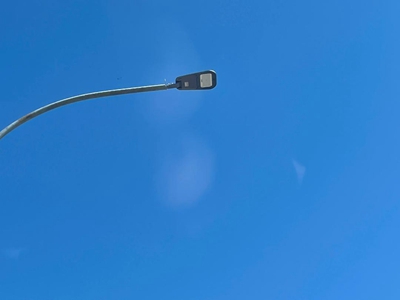

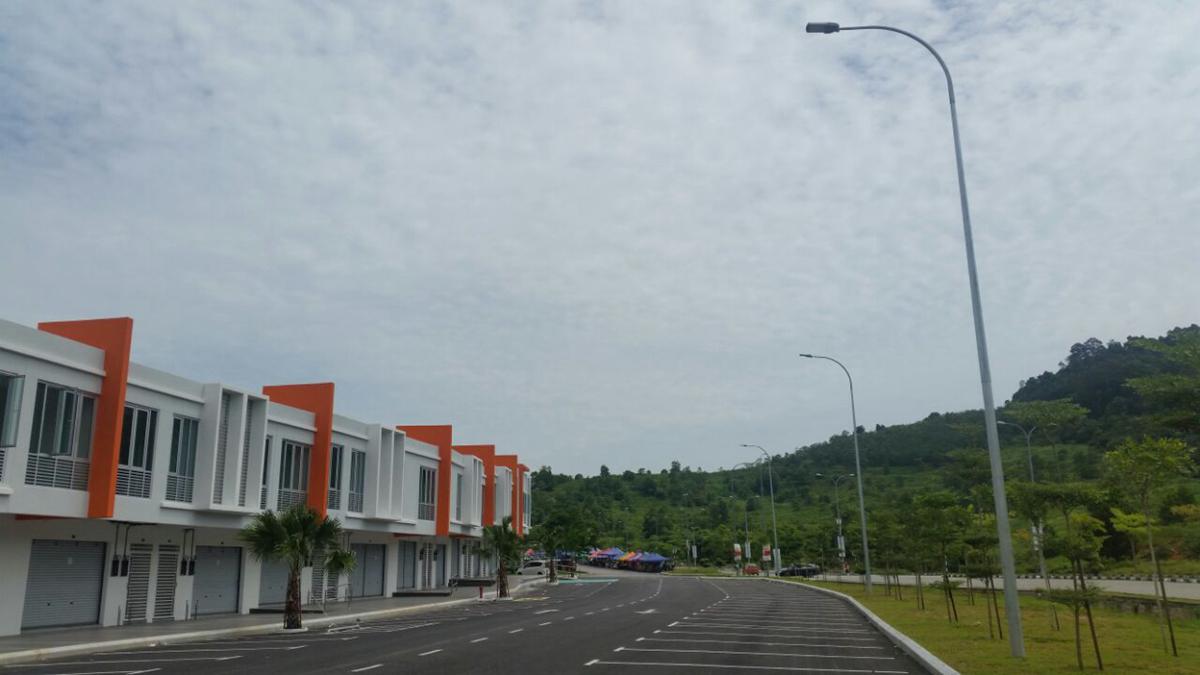

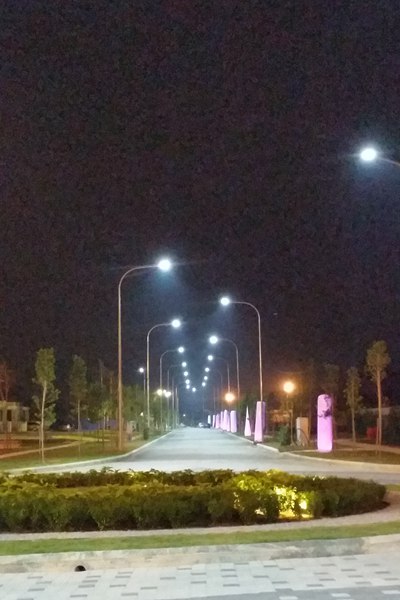

Project Photos


LED Street Light Project in MalaysiaLED Street Light Project in MalaysiaLED Street Light Project in Malaysia

LED Street Light Project in Malaysia

LED Street Light Project in Malaysia


Specification


ModelZGSM-LD135H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage135W
LED Module Quantity4 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output14850 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf

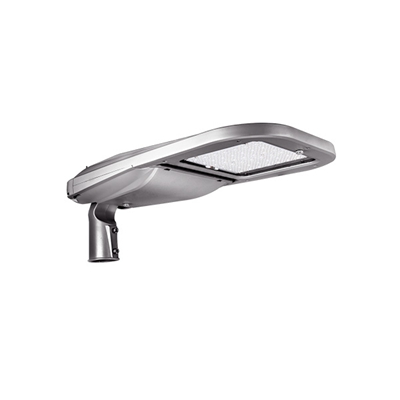

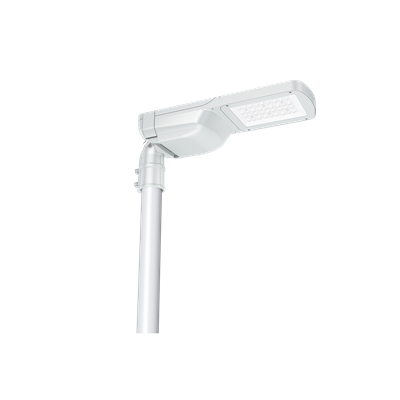

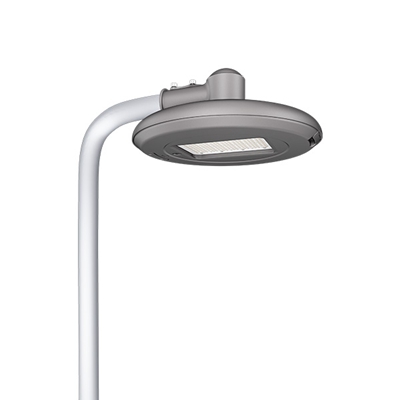

Related Products



LED Street Light Project in MalaysiaLED Street Light Project in MalaysiaLED Street Light Project in Malaysia

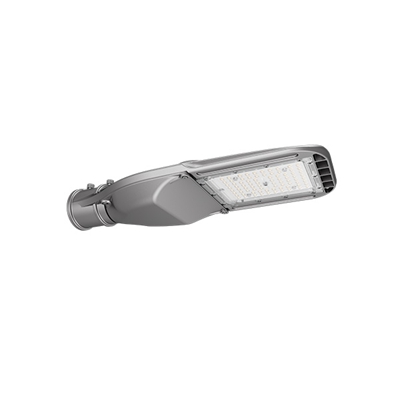

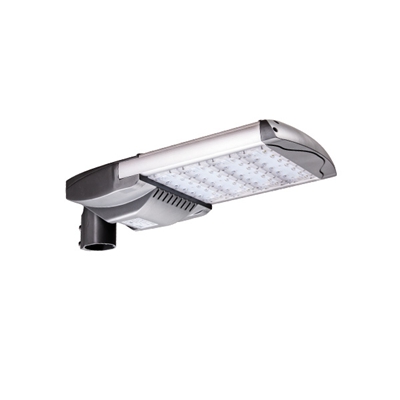

120w Class II Modular Design Road light LED80 watt Dali Dimming Street Light LED150w Cobra Head LED Street Light
LED Street Light Project in MalaysiaLED Street Light Project in MalaysiaLED Street Light Project in Malaysia
Wholesale LED Street Lights 30WEconomical 100 Watt LED Street Light120W Tool-less Outdoor Modern Street Lamp

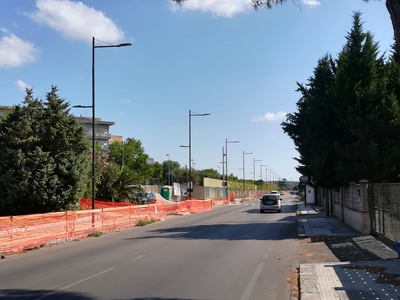

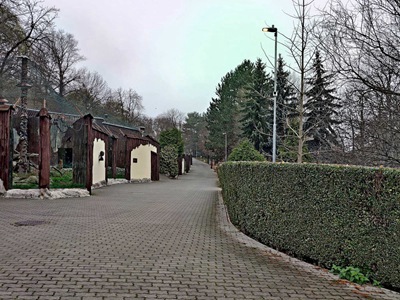

Related Projects


LED Street Light Project in MalaysiaLED Street Light Project in MalaysiaLED Street Light Project in Malaysia

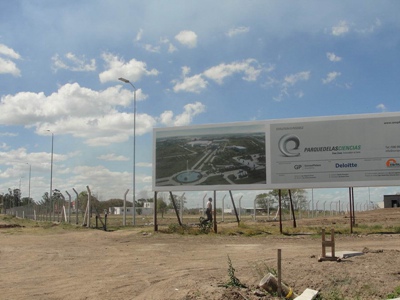

LED Street Light Project In Uruguay

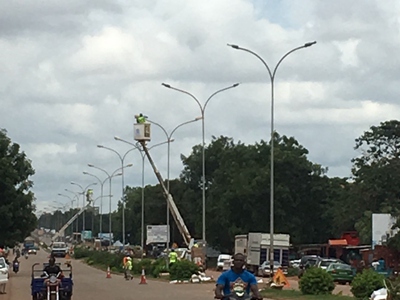

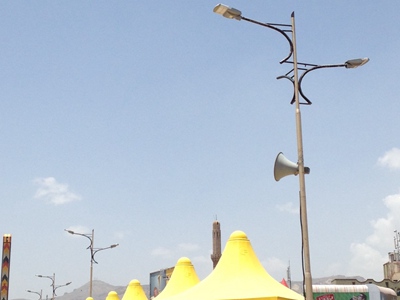

LED Street Light Project In Burkina FasoLED Street Light Project In Dubai
LED Street Light Project in MalaysiaLED Street Light Project in MalaysiaLED Street Light Project in Malaysia

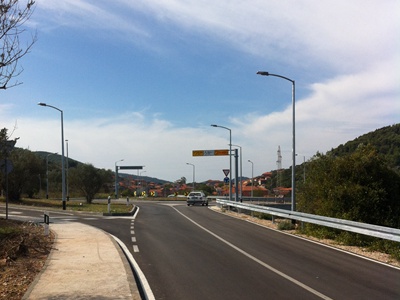

LED Street Light Project In ThailandLED Street Light Project In CroatiaLED Street Light Project In Italy


Related Blogs


LED Street Light Project in MalaysiaLED Street Light Project in MalaysiaLED Street Light Project in Malaysia
LED Street Light Procurement Skills

Principle And Characteristics Of

 High Power White LED Street Light

The Reason For The Rapid Development

Of LED Street Light

LED Street Light Project in MalaysiaLED Street Light Project in MalaysiaLED Street Light Project in Malaysia
LED Street Light System Installation Process

Purchasing LED Street Lights

 Must Know These Points

Briefly Describe The Technical Requirements

 Of Led Street Lights


People Also Ask


  1. What is LED?

    LED means Light-emitting diodes. These are electronic components that use the passage of electrons within the diode's substance to directly transform electrical energy into light. LEDs are significant because they are starting to replace the majority of traditional light sources thanks to their efficiency and low energy consumption.


  2. How can optics and controls help mitigate any negative impacts of public light?

    Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.


  3. Is there an industry standard for street lighting?

    For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
