LED Street Light

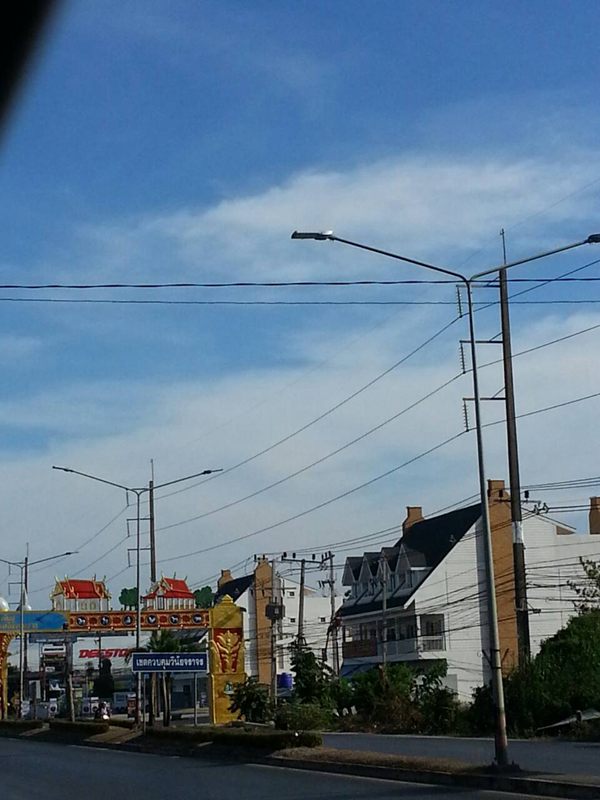

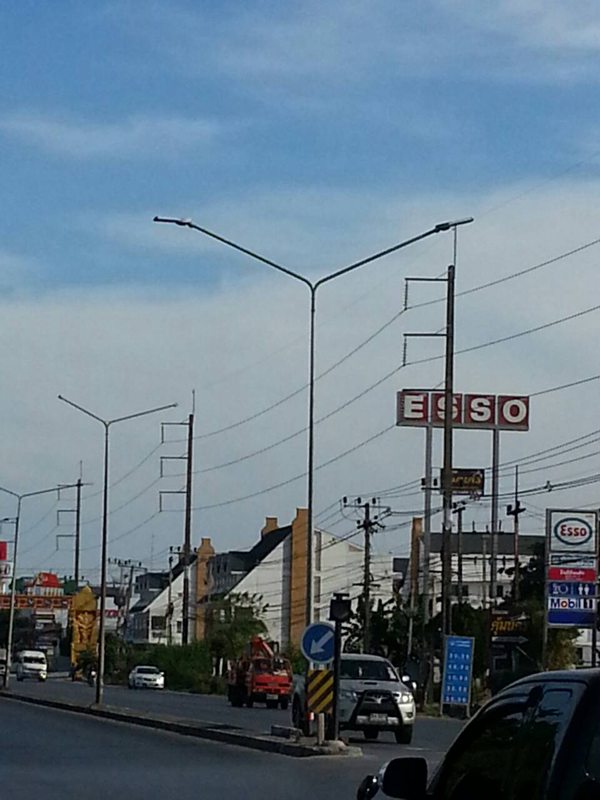

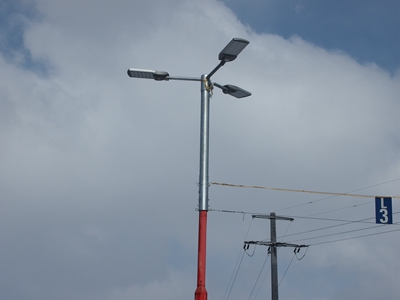

The city street LED lighting project in Thailand was completed in 2014. There are more than 300 units of ZGSM hot sale 165W H series LED street lights in this project. After these street LED lights were put into use, the lighting conditions of this street have been greatly improved. Traffic congestion and accidents have been significantly reduced. It's our honor to work together with our clients to make the world better by saving energy and illuminating the world to be brighter.

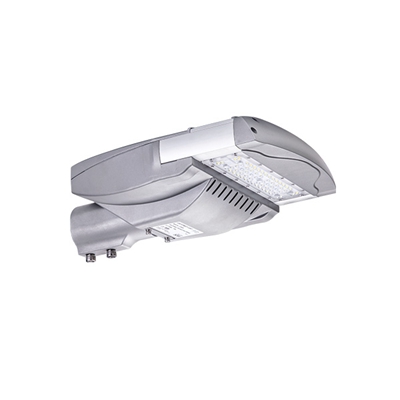

Product: 165W LED Street Light
Model No.: ZGSM-LD165H
LED: Lumileds Luxeon Tx
Driver: Meanwell
CCT: 5000-5650K
Optics: Type 1M
QTY: 300+ Units
| Model | ZGSM-LD165H |
| LED Brand | Lumileds Luxeon TX |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 165W |
| LED Module Quantity | 5 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 18150 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
Data Sheet_LEDStreetLight_H.pdf
 |  |  |
| UL and DLC Listed 165w Street LED Lighting | Tool-less 120W LED Street Lighting | 20w Economical LED Area Lights |
 |  |  |
| 40W Class II Outdoor Street Lighting | 150w LED Street Light |
 |  |  |
| LED Street Light System Installation Process | ||
 |  |  |
LED means Light-emitting diodes. These are electronic components that use the passage of electrons within the diode's substance to directly transform electrical energy into light. LEDs are significant because they are starting to replace the majority of traditional light sources thanks to their efficiency and low energy consumption.
· Significant energy savings - more than 60% as compared to typical street lighting
· Good color rendering, which makes colors appear more natural.
· Long service life - up to 100,000 hours, resulting in lower maintenance costs.
· White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.
· When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.
The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
ZGSM is also available to provide LED street lights work under 347VAC, 480VAC and so on. More details, pls kindly contact us.
