LED Street Light Project in Vietnam

The city street lighting project in Vietnam was finished in 2019. In this project, we recommended our clients choose ZGSM 150W KL series street LED lights with the ZIGBEE smart control system. With this smart control system, we could monitor and control all the street LED lights equipped with a smart lamp controller. In this way, we can not only achieve more energy saving, but also find faulty lamps the first time, and repair and maintain them in time. Nowadays, many countries are striving to realize smart cities, and smart lighting is also an indispensable part of smart cities.


Products Details

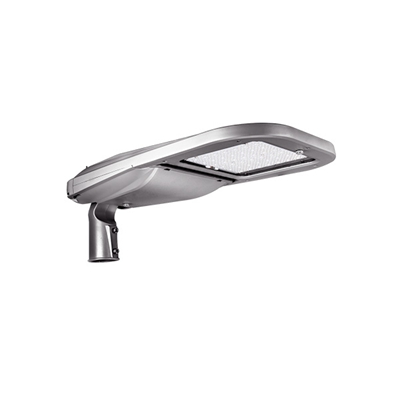

150W KL Series LED Street Light, ZGSM-LD150KL, 4000K, type III, Lumileds 3030, Inventronics 0-10V dimming drivers, 55sets in total.

ZIGBEE smart control system, including single lamp controller, gateway and control platform(website).


Video

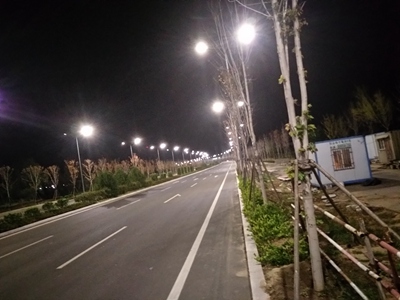

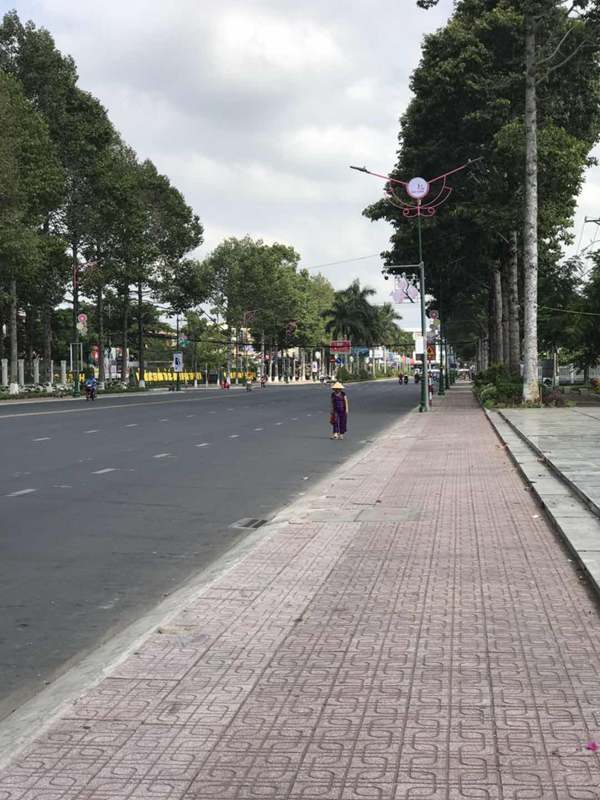

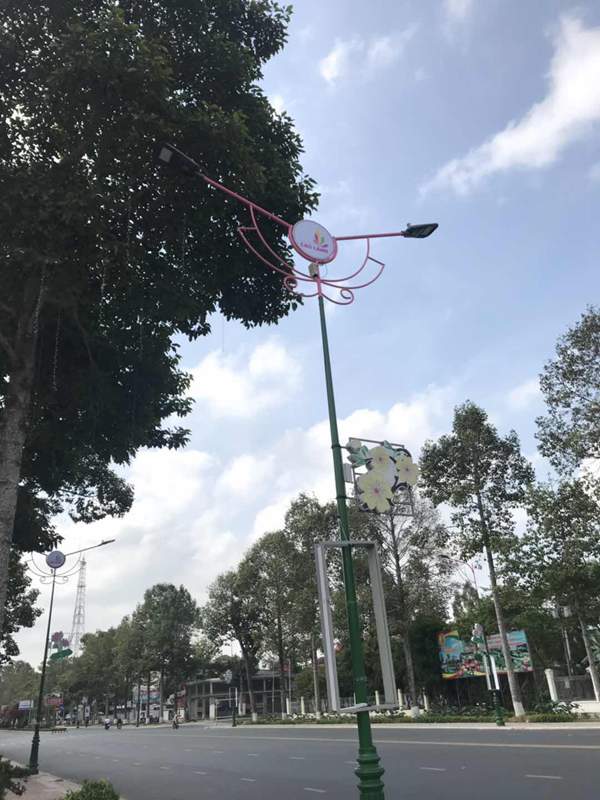

Project Photos


LED Street Light Project in VietnamLED Street Light Project in Vietnam


Specification


ModelZGSM-LD150KL
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics/ Inventronics
Normal Wattage150W
LED Chip Quantity3030: 240pcs 5050: 120pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output19500-22500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum;Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB,ROHS,LM-80,LM79,ISTMT,IP66,IK08
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years


Download


Installation Manual_StreetLight_K.pdf

Data Sheet_ StreetLight_ZGSM-LD150KL.pdf


Related Products


LED Street Light Project in VietnamLED Street Light Project in VietnamLED Street Light Project in Vietnam

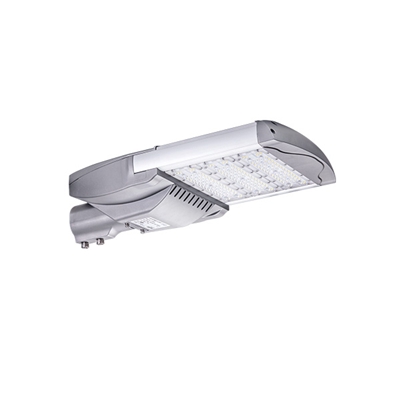

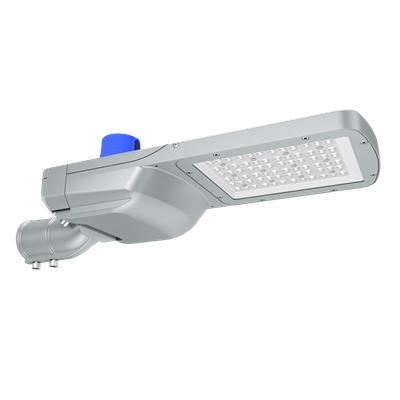

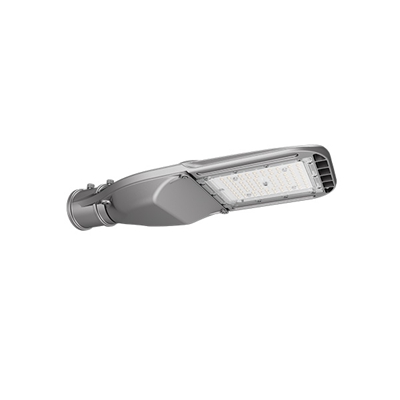

150w Cobra Head LED Street LightIP66 IK10 150w Modular Design Street LED Lights100W Street Light With 7 Pin NEMA Socket
LED Street Light Project in VietnamLED Street Light Project in VietnamLED Street Light Project in Vietnam

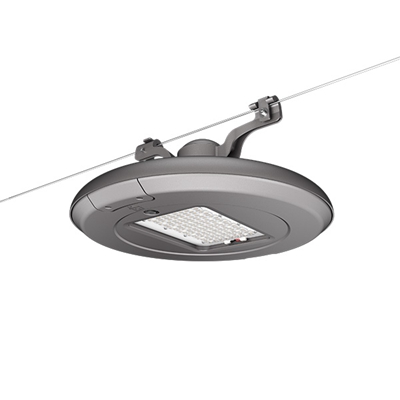

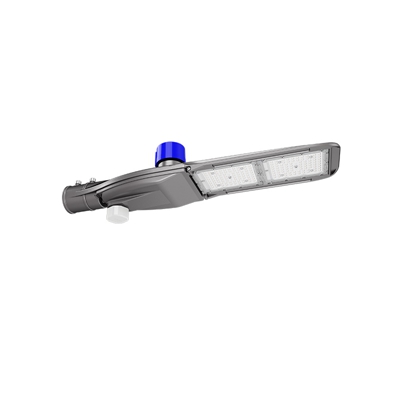

European style 120w Suspended LED Street Light57W Economical Residential Street LightsENEC 130w Commercial LED Street Lights


Related Projects


LED Street Light Project in VietnamLED Street Light Project in VietnamLED Street Light Project in Vietnam

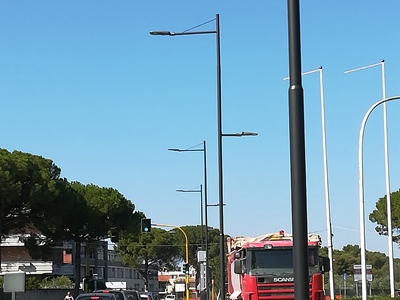

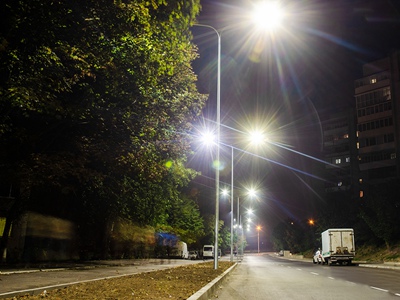

LED Street Light Project in CzechLED Street Light Project In Ukraine

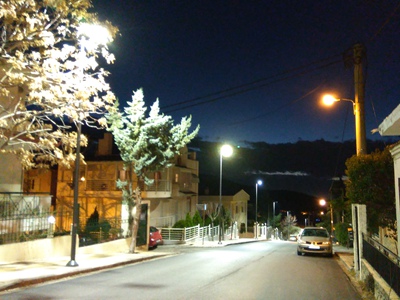

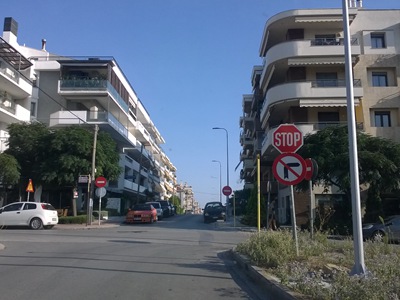

LED Street Light Project In Greece
