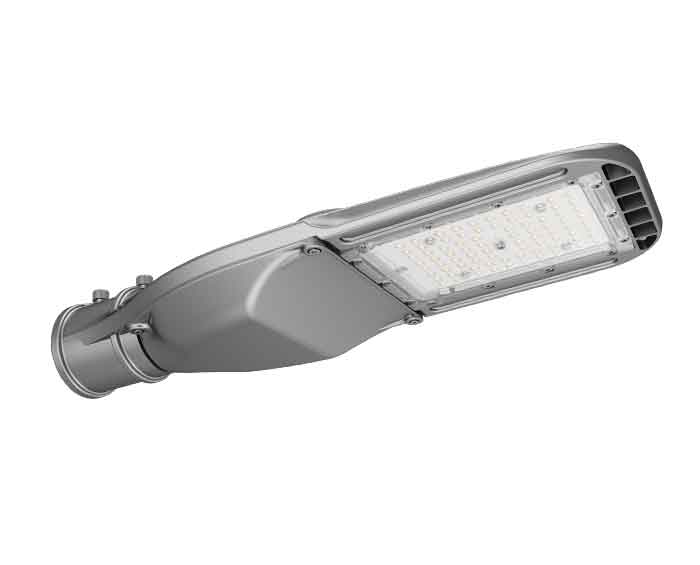

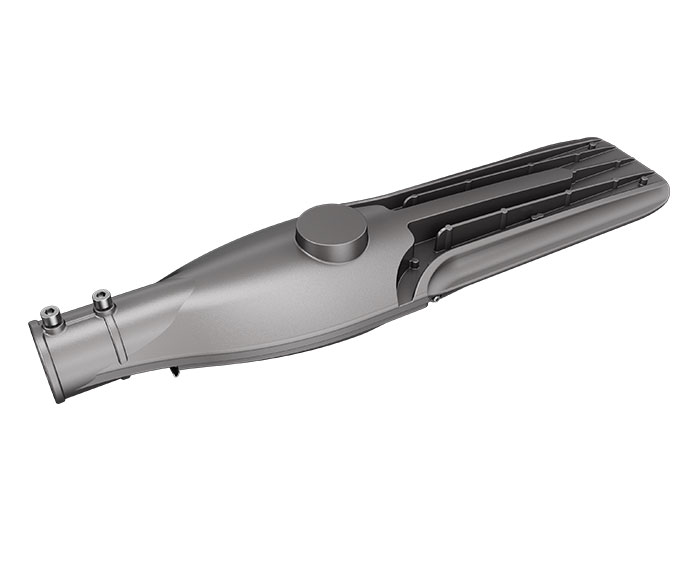

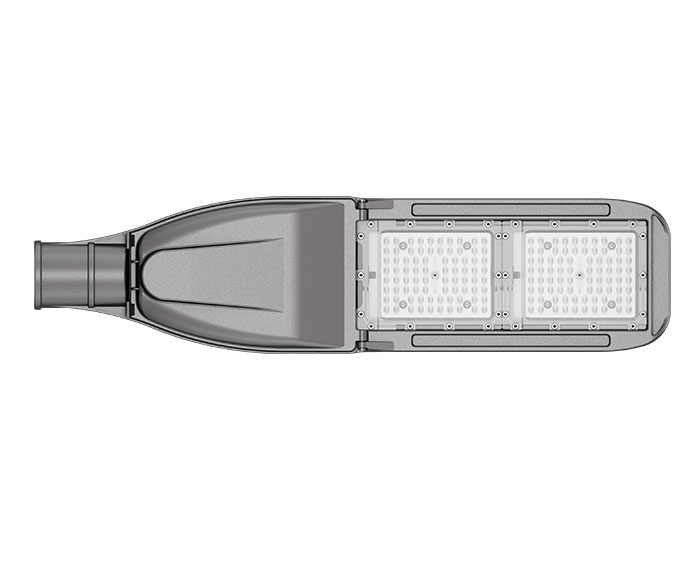

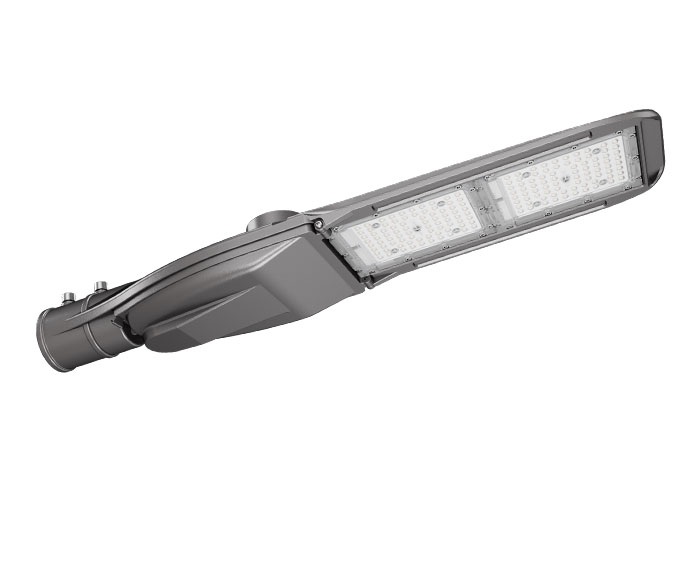

ENEC 130w Commercial LED Street Lights

130w Commercial LED Street Lights with smart design, and low transportation costs. It can not only be used as urban or residential lighting, but also can be used in conjunction with solar energy systems, which are more energy-saving and environmentally friendly, and is suitable for rural use in suburban areas where wiring is inconvenient.

PRODUCT DESCRIPTION

Key Features

● Wide power range: 60W~130W.

● Smart design, low transportation costs.

● Special circuit design, single LED damage won't affect others' normal work.

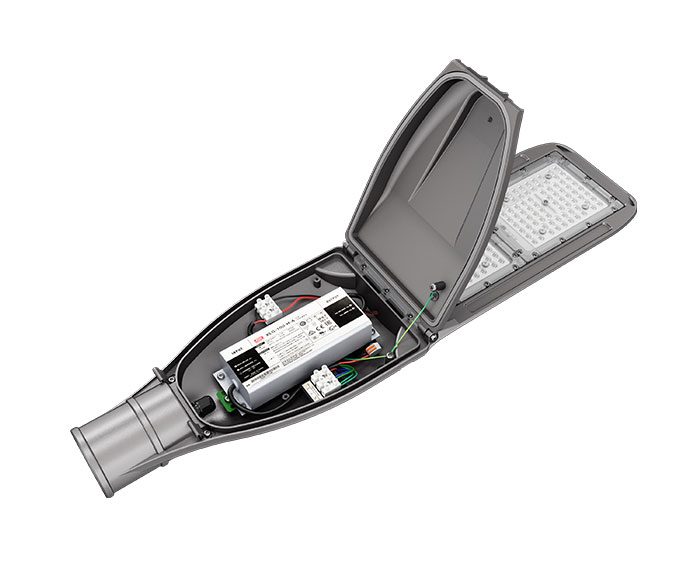

● Tool-less open for easy installation, replacement, and maintenance.

● High Lumen output up to 160lm/ w with high-quality LED chips.

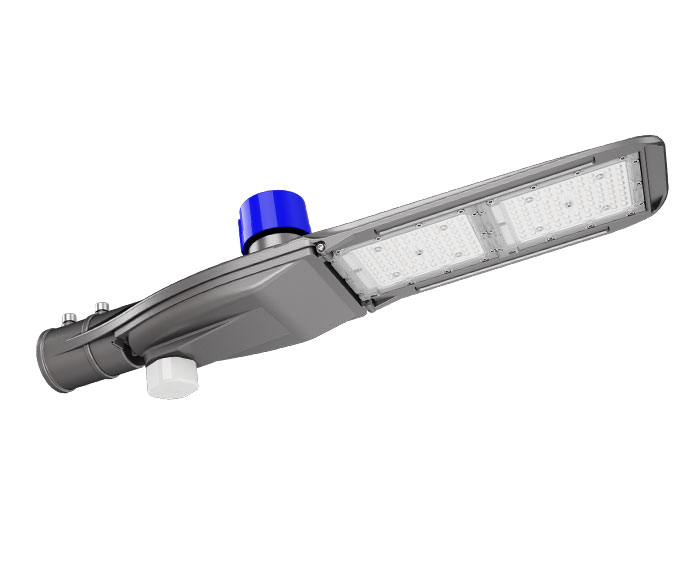

● Multiple lighting control options are available, e.g.1-10V, photocell, and motion sensor.

● Designed to last at least 100,000 hours at L70.


Specifications

ModelZGSM-LD130Kmini2
LED BrandLUMILEDS® LUXEON 3030/ 5050
Driver BrandInventronics / Meanwell
Normal Wattage130W
LED Chip Quantity

3030: 160pcs  5050: 56pcs

Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency3030: 136 lm /w  5050: 150 lm /w
Lamp Rated Lumen output3030: 17680 lm  5050: 19500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric Type3030: Type II Medium  5050: Type II Medium BLS
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; PC Lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK10, ISTMT
Dimming Options1-10V
Control OptionsPhotocell or Smart control
Color OptionsDeep grey
Warranty5 years


FAQ

1. Can LED lights be used as street lights?

LED lights can of course be used as street lights. LEDs provide better control over where the light is illuminated. This means that they can often meet the same lighting requirements as traditional street lights while emitting much less light, further reducing any short-wavelength content. Myth: Street lighting should not emit any short wavelengths of light.


2. A major factor in a street lighting design scheme

What design factors are considered in road lighting that provides all the necessary functions?

The brightness level should be appropriate.

Brightness uniformity must be achieved.

The degree of glare limitation is always incorporated into the design scheme.

The lamp spectrum for visual clarity depends on the appropriate luminaire.

The effectiveness of visual guidance is also an important factor.

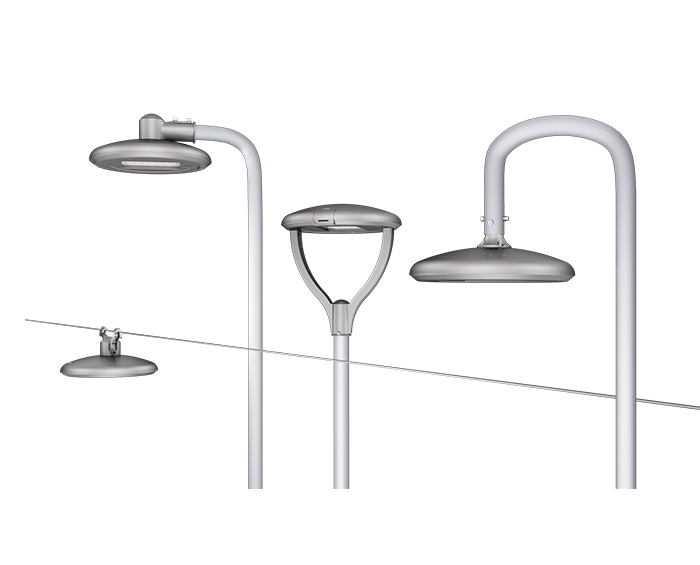

3. What Is A Round LED Street Light?

The Round LED Street Lights is one kind of LED street lights with a round body design, like ZGSM L series and Halo series. It not only have the same advantages of high efficacy, long lifespan, energy saving as other LED street lights. The elegant housing design also makes it could be applied to city street lighting, garden lighting, community Lighting, residential area lighting and so on.
