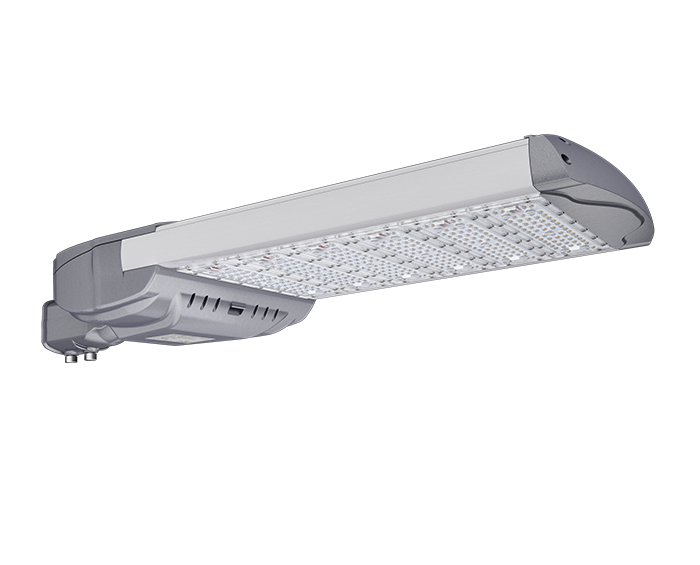

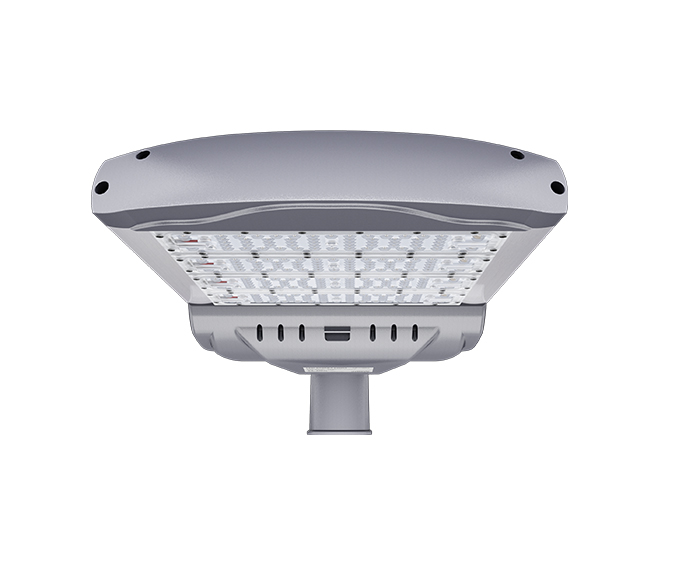

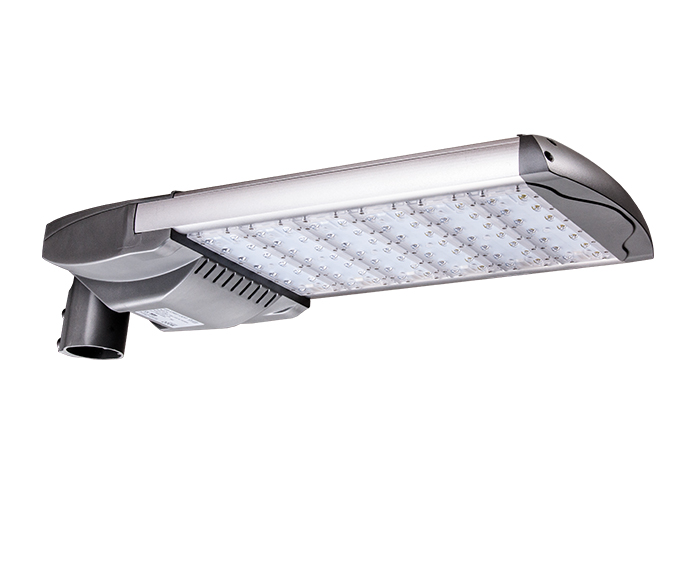

Equipped with Meanwell or Inventronics dimmable light driver, a variety of color temperatures and spectra are available. Photocell or Motion sensor or Smart control is optional, making your commercial street lights more intelligent, and horizontal installation and vertical installation meet different installation environments.
1. Wide power range: 35W~320W.
2. Special circuit design, single LED damage won't affect others' normal work.

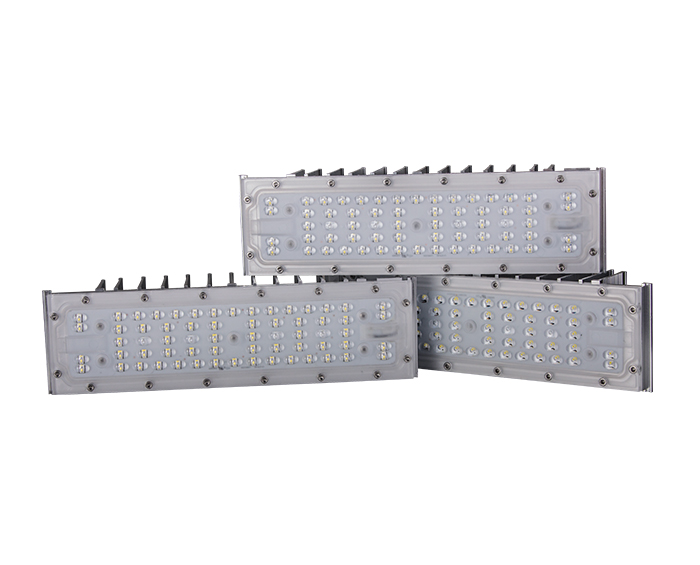

3. Modular design and tool-less open for easy replacement and maintenance.
4. Power-off protection makes the power automatically off when the fixture is opened (optional).
5. Level bubble makes it easy for the installer to adjust the position of the lamp.
6. Breather ensures air balance inside and outside of the driver box of the lamp.
7. High Lumen output up to 165lm/ w with high-quality LED chips.
8. 1000 hours salt spray test report.
9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.
10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.
11. Designed to last at least 100, 000 hours at L70.
12. Multiple lighting distributions are available.
13. CE, ROHS, GS, CB, UL, cUL, DLC, LM80, FCC, IP66, IK10
14. 7 years warranty
|LED Brand||Lumileds 3030/5050|
|Driver Brand||Meanwell or Inventronics|
|LED Module Quantity||6 modules|
|Lamp Rated Luminous Efficiency||140-165 lm/w|
|Lamp Rated Lumen output||33600-39600 lm (Lumen tolerance +/- 5%)|
|Color Rendering Index||70( 80 optional）|
|Color Temperature||3000K, 4000K, 5000K, or 5700K|
|Photometric Type||Type I Medium; Type II Medium; Type III Medium, TypeV, Short|
|Optimal Operating Temperature||25°|
|Working Environment||Between-40°C~+50°C, 10%~90%RH|
|Total Harmonic Distortion||< 10%|
|Lumen Maintenance||> 100000 hours -L70, @25 ºC (77 ºF)|
|Wind Index||Force 12|
|Body||Die-cast Aluminum Housing|
|Pole Fitter Diameter||60mm ( 50mm optional)|
|Protection||Class I ( Class II optional)|
|SPD||10KV (20KV optional)|
|Certification||CE, ROHS, ENEC, CB, LM80, LM79, FCC, IP66, IK10|
|Dimming Options||1-10V or DALI or PWM or Timer|
|Control Options||Photocell or Motion sensor or Smart control|
|Color Options||Silver or Black|
Commercial-grade lighting products are made of better quality LED drivers, LED modules, radiators, etc., and last longer than residential-grade products. As a result, they are more durable and last longer than residential lighting options.
What is an LED street light? LEDs represent LIGHT-emitting diodes. LED light source is efficient and environmentally friendly. It is more controllable than previous types of street lighting because it can dim when necessary and focus light where it is needed, reducing light pollution.
IP code is defined by the International Electrotechnical Commission (IEC) under the international standard IEC 60529 which classifies and provides a guideline to the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. It is published in the European Union by the European Committee for Electrotechnical Standardization (CENELEC) as EN 60529.
IP66 means the enclosures of this products are able to protect against powerful water jets. Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. Test duration: at least 3 minutes. Water volume: 100 litres per minute.
The LED lights with IP66, such as ZGSM Halo series LED street lights, could be applied to outdoor lightings without worrying about the rain.
