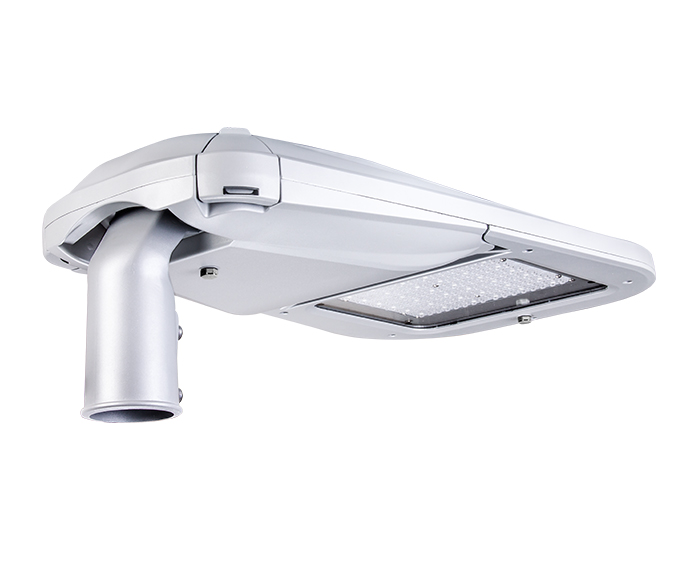

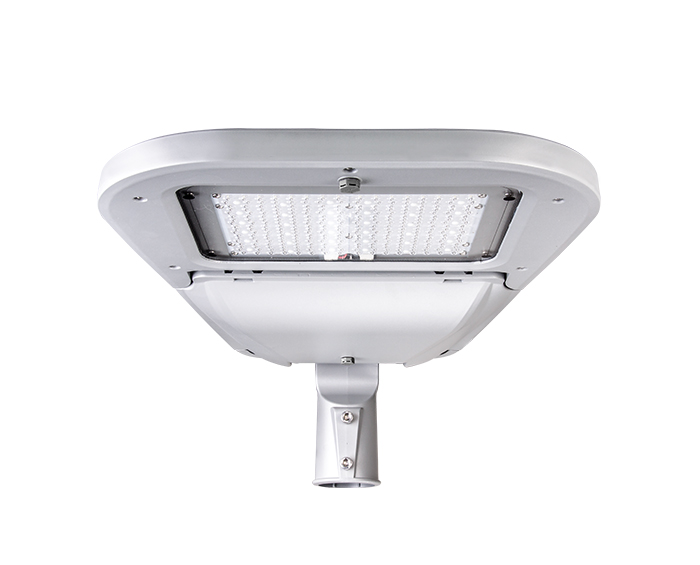

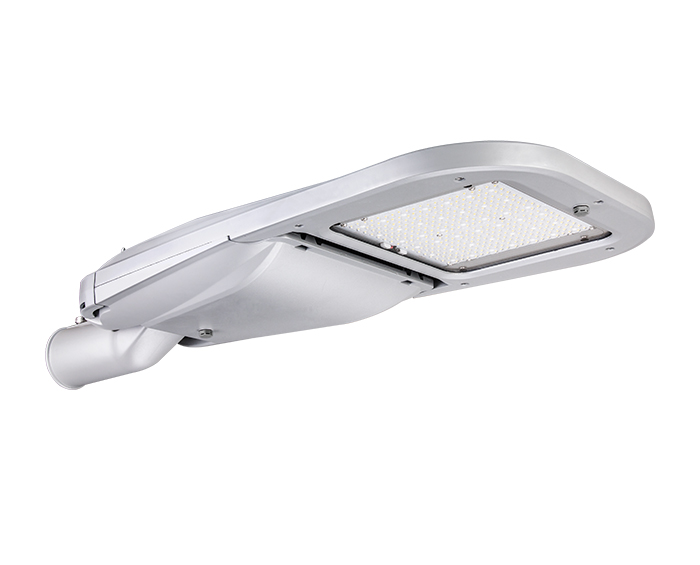

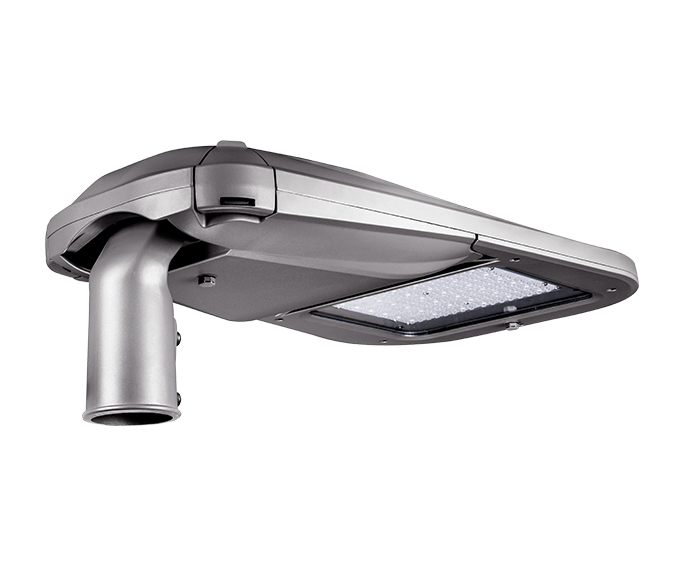

Full die cast housing 200w Tool-less Intelligent Street Lighting

Photocell or Motion sensor, or Smart control are optional for ZGSM Full die cast housing intelligent street light. Tool-less open design makes it easy to install, replace, and maintain. Intelligent Street Lighting use secure connections and sensors to simplify lighting management while monitoring and analyzing environmental, traffic, and parking information in smart cities.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

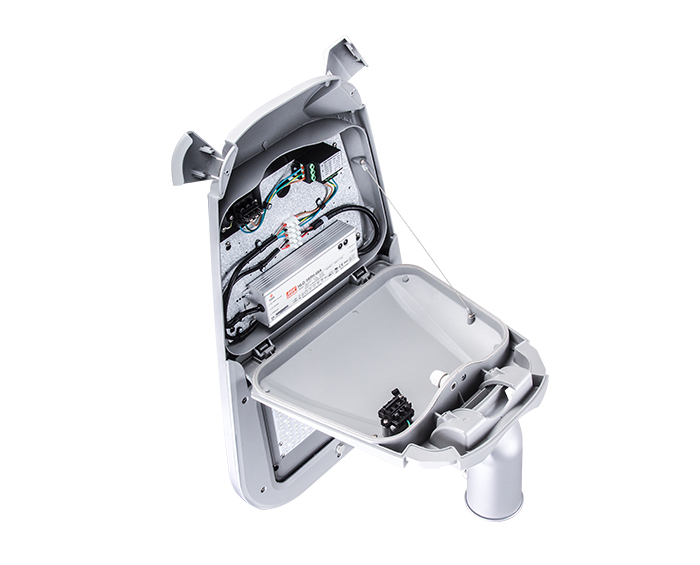

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

ModelZGSM-LD200KL
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell / Inventronics
Normal Wattage200W
LED Chip Quantity3030: 336pcs 5050: 168pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output26000-30000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum;Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB, ROHS, LM-80, LM79, ISTMT, IP66, IK08
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years


FAQ

1. What is intelligent or smart street lighting?

Smart street lights refer to public street lights that adapt to the movement of pedestrians, cyclists, and cars in smart cities. Also known as adaptive street lighting, it lights up when it senses activity and dims when it doesn't. This is different from traditional fixed lighting, as well as dimmed lighting on a timer.


2. How does intelligent street lighting work?

Essentially, smart street lights use a management system that enables connected street lights to be remotely controlled and monitored via a centralized online application.


3. Do dimming lights reduce power?

Can dimming the lights save energy? Dimmers save energy by reducing the current flowing to the bulb and allowing the lamp to operate at a lower power output. Since lamps with less pressure emit light for longer periods of illumination, it is well known that dimmers can also extend the life of lamps.
