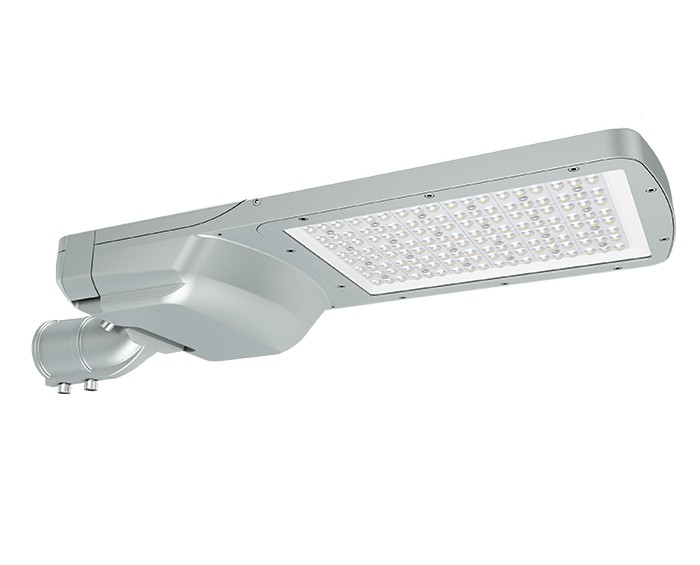

240w LED Public Lighting For Street Project

This 240w LED Public Lighting is very suitable for government infrastructure projects, public welfare projects, and other engineering projects. ZGSM Rifle series LED Public light has a modern appearance, high light efficiency, and high lumens, and there are two installation methods of horizontal installation and vertical installation, which are very cost-effective. It's also customizable to choose different kinds of dimming functions.



Key Features

1. 70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

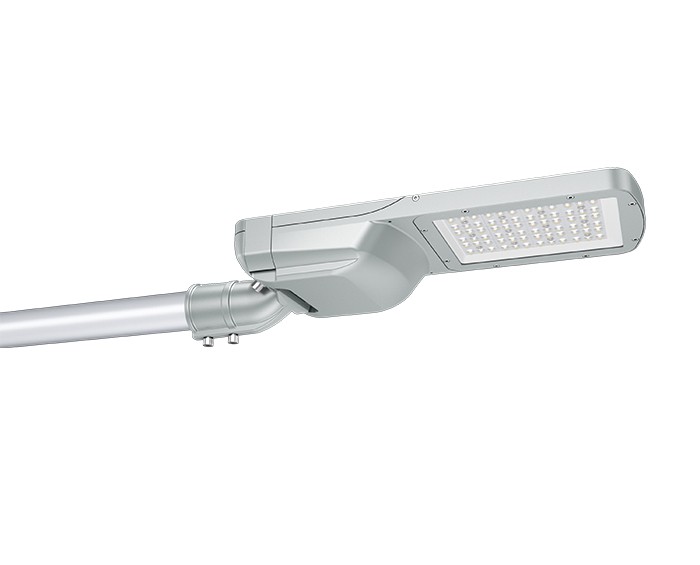

4. Support horizontal and vertical mounted, suitable for different light poles

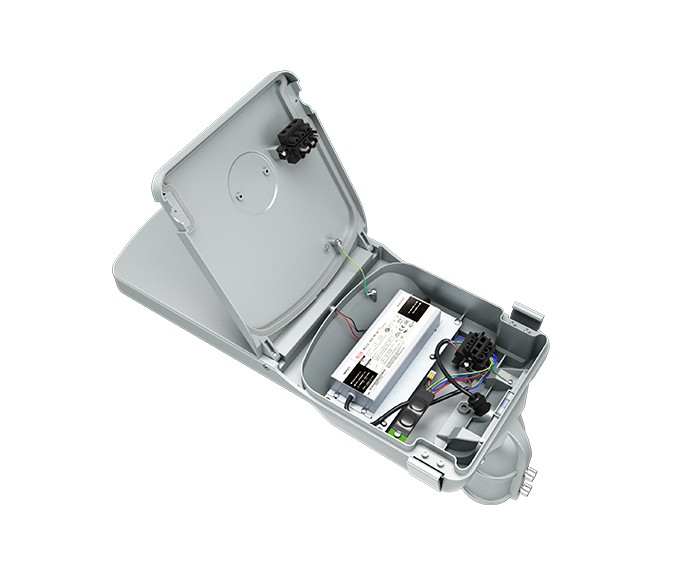

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty

7. CE, RoHS, CB, ENEC, LM-79, LM-80, ISTMT, ISO9001, ISO14001 Certified for both Class I & Class II Version.

8. Accessories of Photocell, Motion Sensor, Smart Control System (LORA & ZIGBEE), NEMA Socket (3/5/7 Pin), ZHAGA Socket available for options.


LED BrandLUMILEDS 3030 OR 5050
Driver BrandInventronics /Other brands on request
Normal Wattage240w
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency150-160lm/w
Lamp Rated Lumen output36000-38400lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, 5700K
Photometric TypeType II, Type III
Optimal Operating Temperature25
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverTempered glass
RatingIP66, IK10
Protection Class I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming (Default) /Timer Dimming
Available on requestNEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife  switch, NTC, OLC, Solar Compatible, DALI Dimming
Color OptionsGray (Default) /Black (available on request)
Warranty5   years


1. Benefits of modern public lighting systems

Strengthen road traffic safety

Increases visibility at night, thereby reducing criminal activity and increasing citizens' sense of security

Productivity increases due to the increase in legal activities after dusk and the longer working days that allow people to travel safely at a later time

Reduced electricity consumption due to energy-saving technologies, reduced costs (sometimes drastically)

A valid and highly visible way for municipalities to demonstrate commitments to voters

Over the past few years, public lighting projects have been effectively implemented through public-private partnerships. Through PPPs, governments contract with private suppliers to provide services – lamps – not assets – the luminaires themselves.

2. Which lighting is the most economical for street lighting?


LEDs are the most efficient street lighting technology, and their costs are rapidly decreasing, but the cost per luminaire is usually 2-4 times that of traditional high-pressure sodium technology. However, it uses more than 30–50% less energy and significantly reduces energy costs over its lifetime.

3. How long do LED street lights last?

About 15 to 20 years.

LEDs use up to 50% less energy than standard sodium bulbs and can last for 15 to 20 years. There are also some surprising advantages. Better street lighting may make it easier to use public transit by reducing the feeling of danger and increasing visibility on the roads.
