High cost performance LED Street Light

Home  /  Products / LED Street Light / High cost performance LED Street Light
  • 100w STREET LIGHT With 7 Pin NEMA Socket
  • 100w STREET LIGHT With 7 Pin NEMA Socket
  • 100w STREET LIGHT With 7 Pin NEMA Socket
  • 100w STREET LIGHT With 7 Pin NEMA Socket
  • 100w STREET LIGHT With 7 Pin NEMA Socket

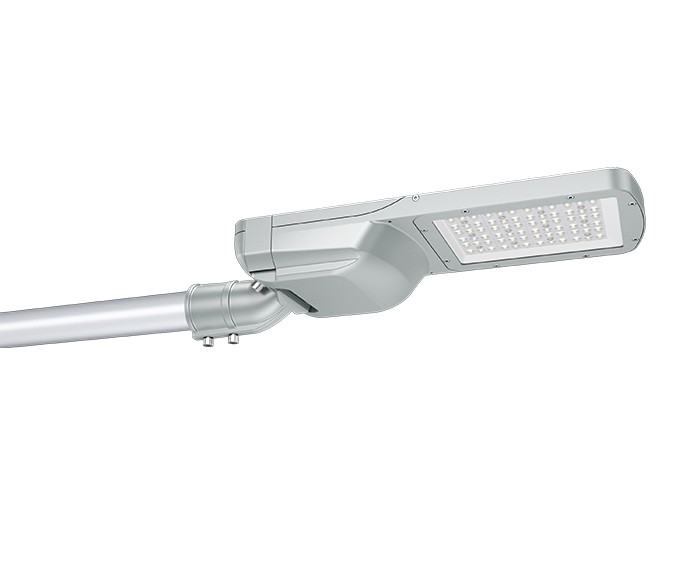

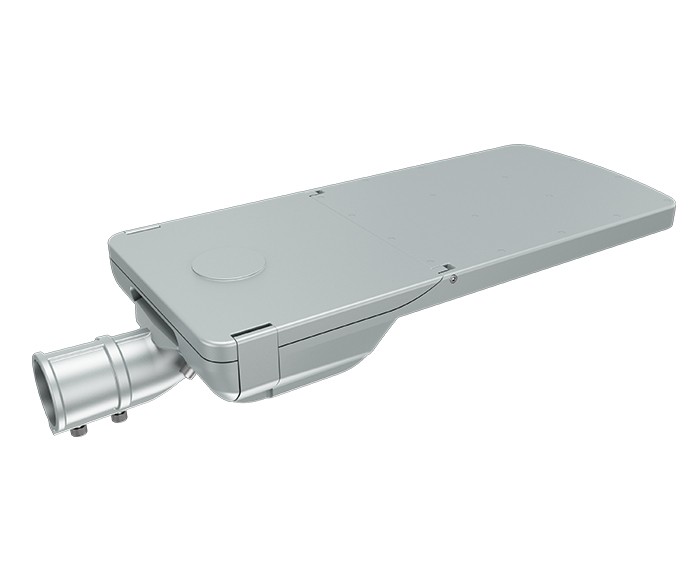

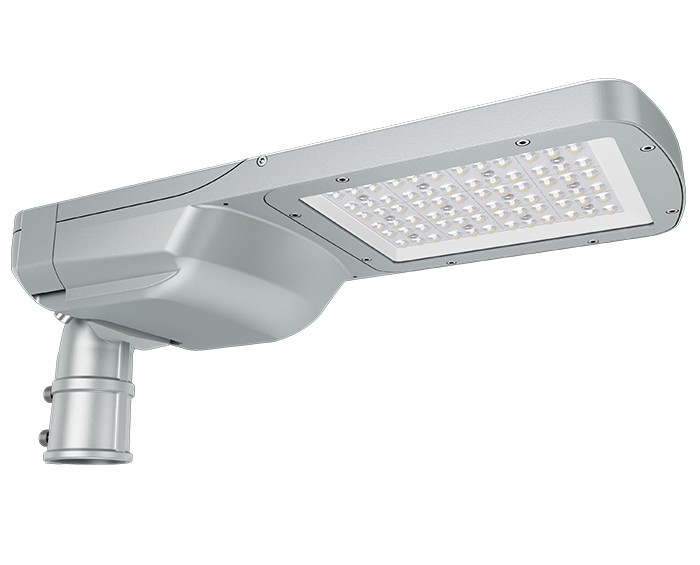

100w STREET LIGHT With 7 Pin NEMA Socket

NEMA /ZHAGA socket, short cap, photocell, motion sensor, knife switches, NTC, OLC, solar compatible, and DALI dimming can be used in NEMA socket street lighting. Realize real smart lighting, make your LED lighting more intelligent, Humanization, cost-saving, and work efficiency.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1.70% energy saving, short ROI period

2. Up to 100, 000hrs @ L70, low maintenance cost

3. World-class, approbated quality components (LEDs /Driver /etc.)

4. Support horizontal and vertical mounted, suitable for different light poles

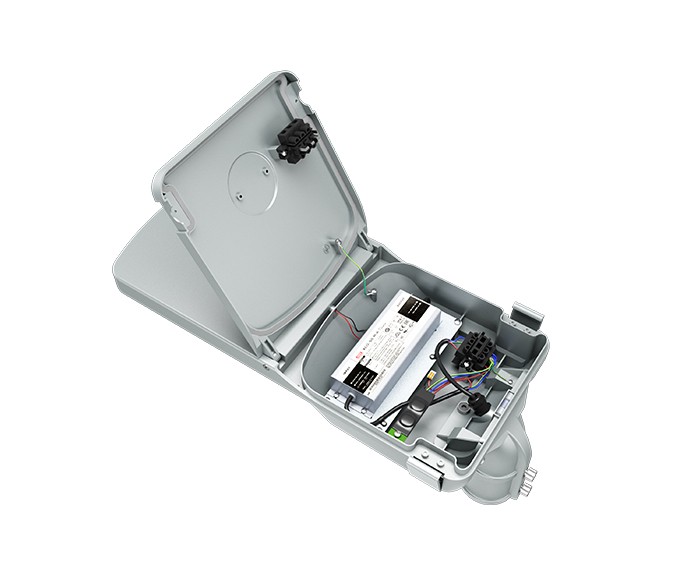

5. Tool-less opening of driver box, ease of maintenance

6. 5 years warranty


Specifications

ModelZGSM-ST17-100M
LED BrandLUMILEDS 3030 or 5050
Driver BrandInventronics  /Other brands on request
Normal Wattage100W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency155-165lm/w
Lamp Rated Lumen output15500-16500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, 5700K
Photometric TypeType II, Type III
Optimal Operating Temperature25
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverTempered glass
RatingIP66, IK10
Protection Class I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming (Default) /Timer Dimming
Available on requestNEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife   switch, NTC, OLC, Solar Compatible, DALI Dimming
Color OptionsGray (Default) /Black (available on request)
Warranty5   years


FAQ

What is a 7-pin NEMA socket?

NEMA sockets provide electrical and mechanical connections between the control unit and the luminaires. The ANSI C136 coding standard clearly defines the size, lock type, and other details of the socket. NEMA sockets are the standardized type of connection for the entire lighting industry.


How do smart street lights work?

How smart street lights work. The technology behind smart street lights may vary depending on their functions and requirements, but usually, it involves a combination of cameras and sensors. When implemented on standard street lights, these devices can detect motion, enabling dynamic illumination and dimming.


What is a NEMA protector socket?

Most street lights or parking lot lights have a blue or black circular knob on top that is actually used as a lighting control device.
