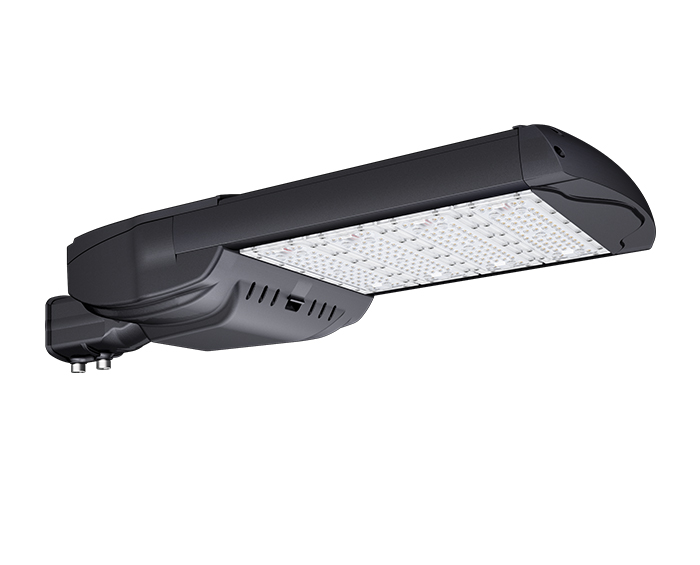

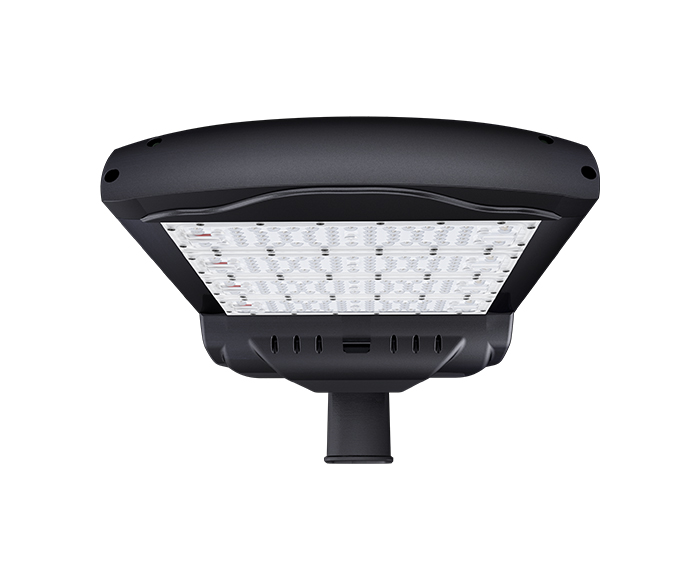

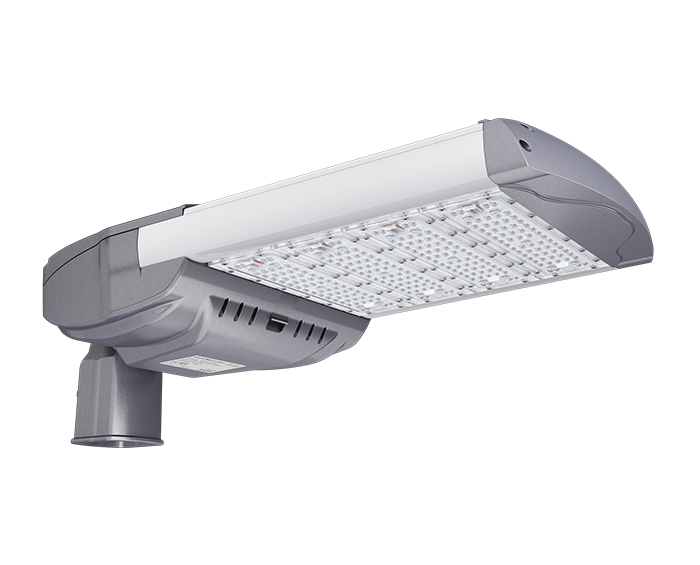

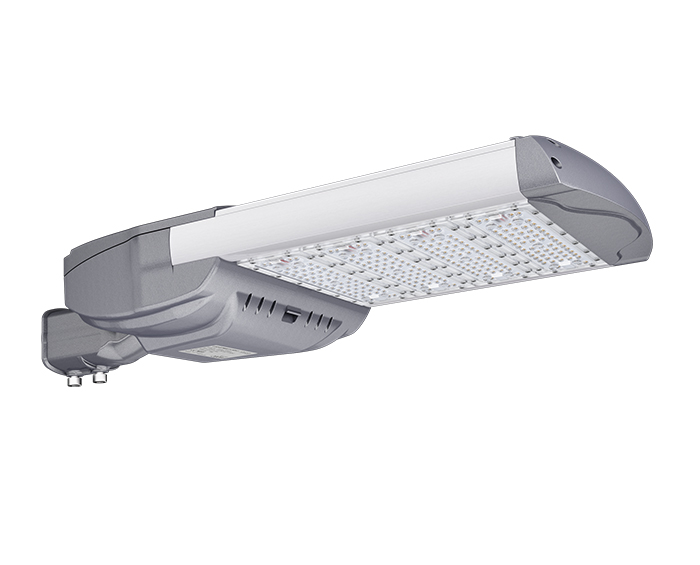

IP66 IK10 200w Modular Design LED Street Light Head

This IP66 IK10 200w Modular Design LED Street Light Head has been tested to achieve a waterproof rating of IP66, which can be safely used outdoors. A variety of spectra are available to meet your needs for different lighting venues.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

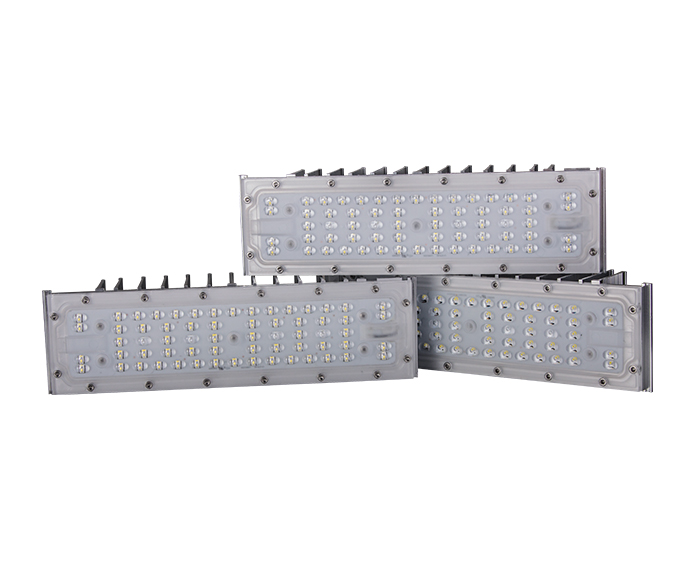

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty

Specifications

Model	ZGSM-LD200H5
LED Brand	Lumileds 3030/5050
Driver Brand	Meanwell or Inventronics
Normal Wattage	200W
LED Module Quantity	4 modules
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	130-160 lm/w
Lamp Rated Lumen output	26000-32000 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70( 80 optional）
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body	Die-cast Aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE, ROHS, ENEC, CB, LM80, LM79, FCC, IP66, IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Silver or Black
Warranty	7 years

FAQ

1. What is an IP rating?

Ingress Protection (IP) rating is a safety rating. "ingress" is the act of entering or entering, and the larger the number, the better the protection. The format of the rating is IP followed by a two-digit number. The first number represents solid protection and the second number represents liquid protection.

2. What happens when an outdoor light gets wet?

As long as the lights are actually rated for indoor and outdoor use as well as weather resistance, you should have no problem if it rains or gets too much moisture. You don't want to deliberately dip them in a bucket of water, but for regular use, you should have no problem.
