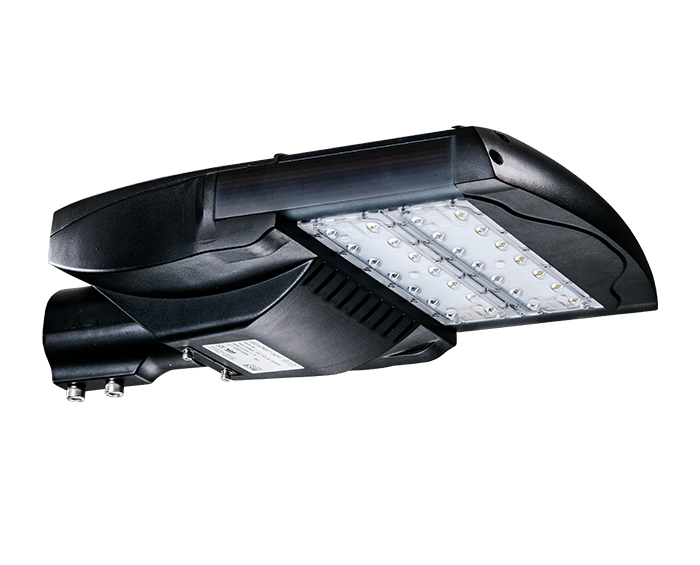

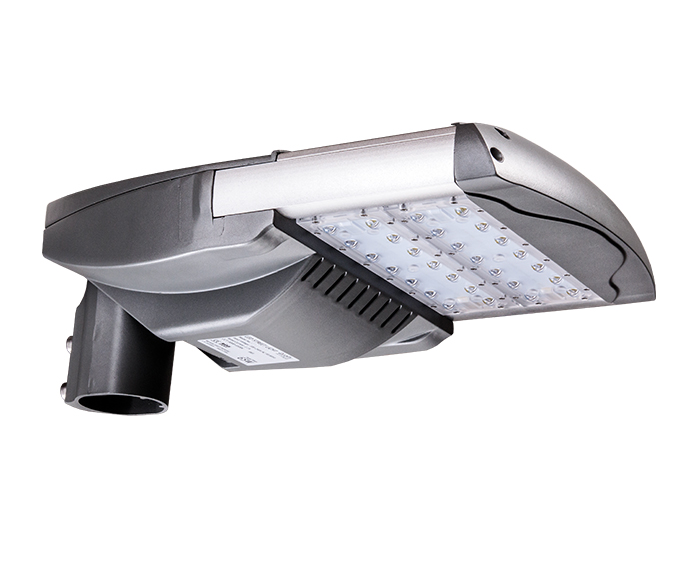

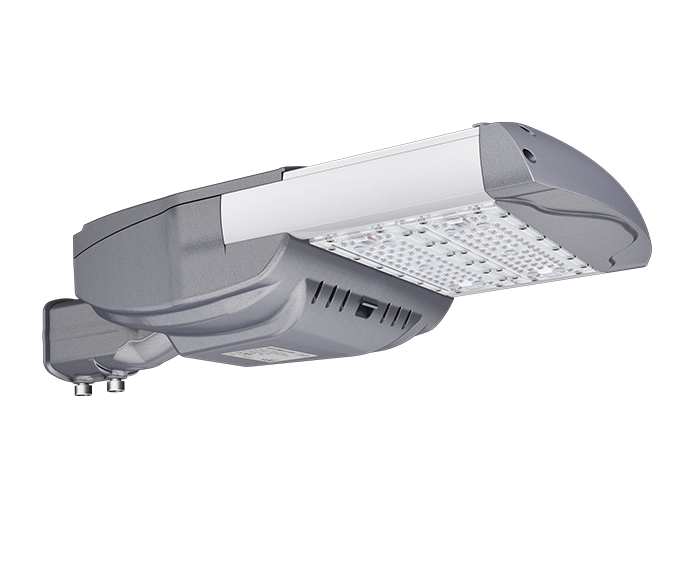

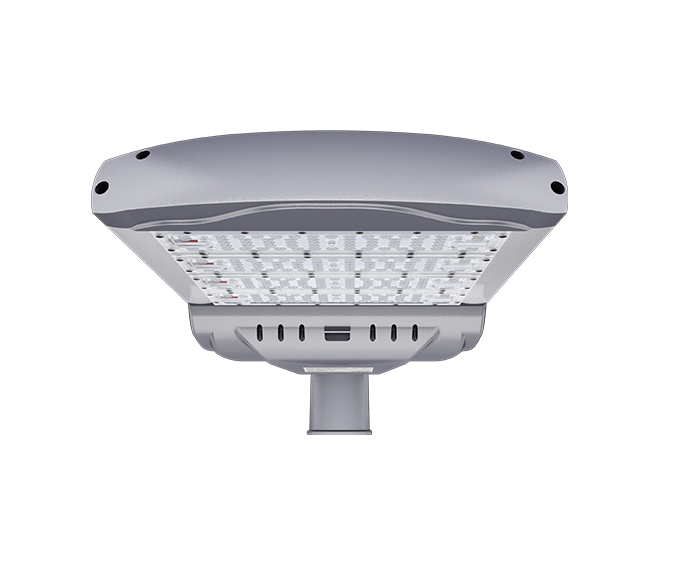

IP66 IK10 100w Modular Design Outdoor Street Lights

Q: 3. The benefits of a smart street light system

Smart street lights can help monitor traffic flow, parking, crosswalks, seismic activity, or changes in the atmosphere. They can be equipped with speakers to alert people to dangerous situations or conditions, or cameras to help police solve cases or verify garbage collection and other activities.

IP66 IK10 100w Modular Design outdoor street lights, At ZGSM, we provide our utility and infrastructure customers with customizable, rugged, and serviceable outdoor lighting products designed to meet the luminaire parameters and specifications of any customer need.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

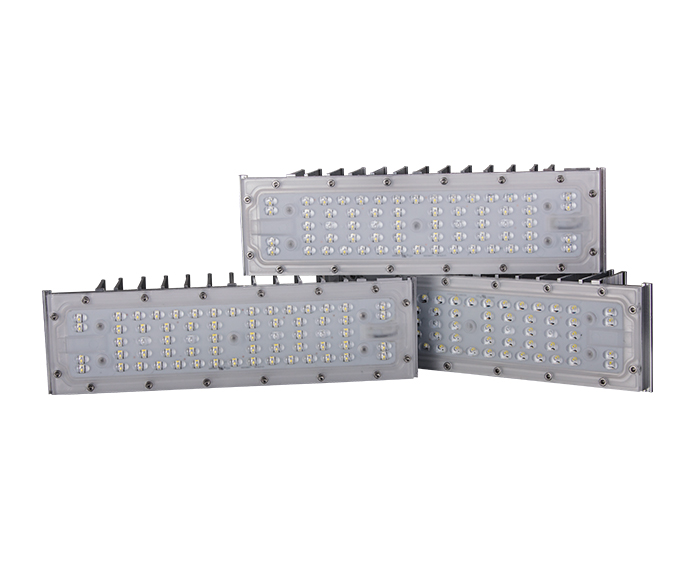

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty

Specifications

Model	ZGSM-LD100H5
LED Brand	Lumileds 3030/5050
Driver Brand	Meanwell or Inventronics
Normal Wattage	100W
LED Module Quantity	2 modules
Input Voltage	100-240/277VAC/DC24V
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	130-160 lm/w
Lamp Rated Lumen output	13000-16000 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70( 80 optional）
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body	Die-cast Aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Silver or Black
Warranty	7 years

FAQ

1. What are IP and IK?

When buying outdoor or bathroom lighting, you may have seen the term "IP rating" appear. This code is a simple way to indicate how protected a lighting product is from external influences. Like IP ratings, IK ratings specify how much protection a shell provides for its contents. However, the IK rating is not intended to prevent the ingress of solid objects and liquids, but rather indicates the amount of protection the housing from external mechanical impacts.

2. What is the best lightning protection?

Surges caused by lightning can soar to hundreds of volts. You can use a surge protector to help protect your device from lightning strikes. However, in a storm, the best protection is to unplug your appliances.

3. The benefits of a smart street light system

Smart street lights can help monitor traffic flow, parking, crosswalks, seismic activity, or changes in the atmosphere. They can be equipped with speakers to alert people to dangerous situations or conditions, or cameras to help police solve cases or verify garbage collection and other activities.
