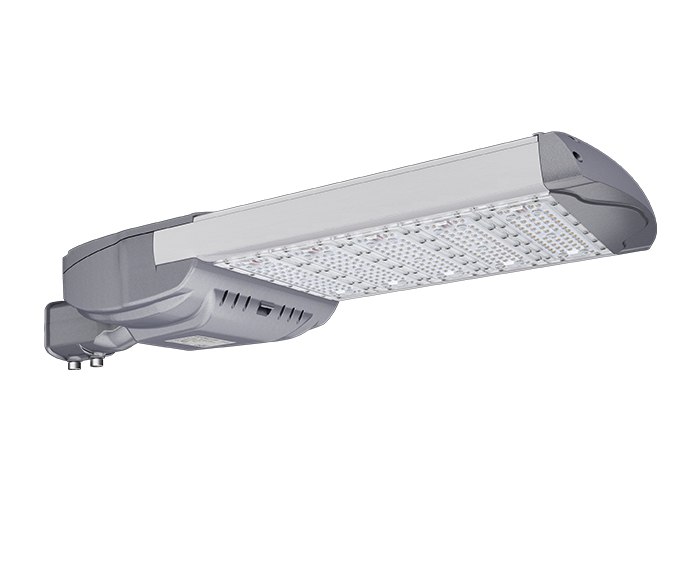

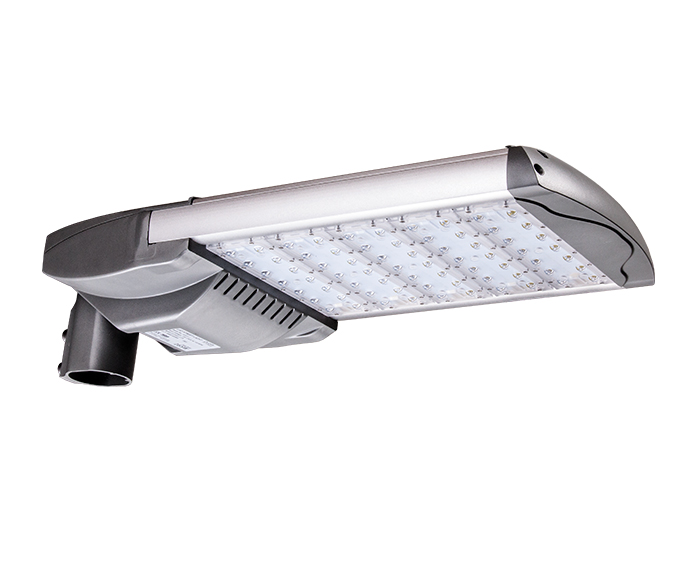

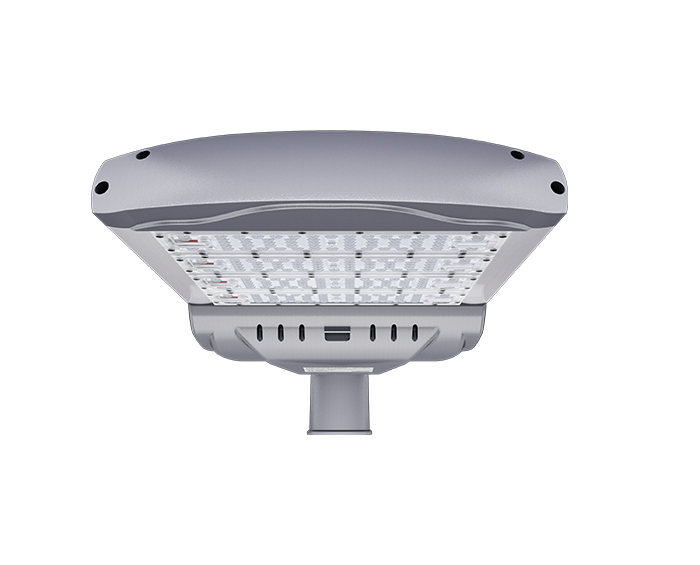

200w Class II Modular Design LED Street Light Suppliers

As 200w Class II Modular Design LED Street Light Suppliers, ZGSM provide customers with professional lighting simulation design and matching professional LED lighting products. Module design series products are our star products, welcome to buy.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

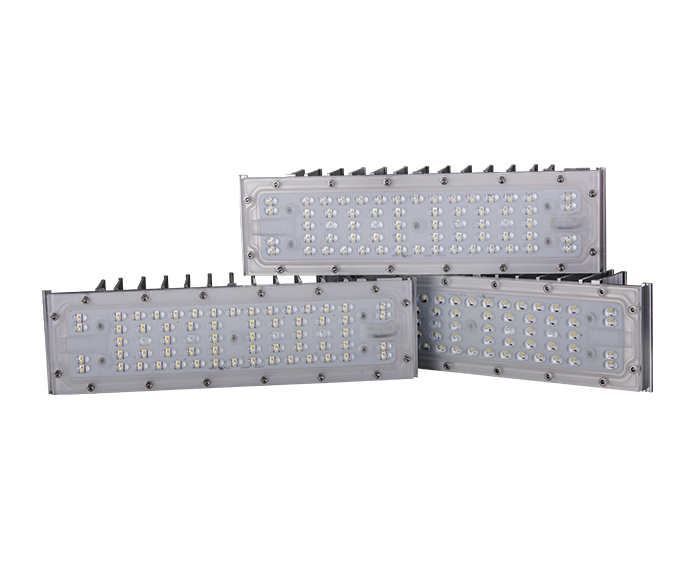

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,UL, DLC, LM79, LM80,FCC,IP66,IK10

14. 7 years warranty


Specifications

ModelZGSM-LD200H2
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage200W
LED Module Quantity5 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output22000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, GS, CB, LM80, FCC, IP66, IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control

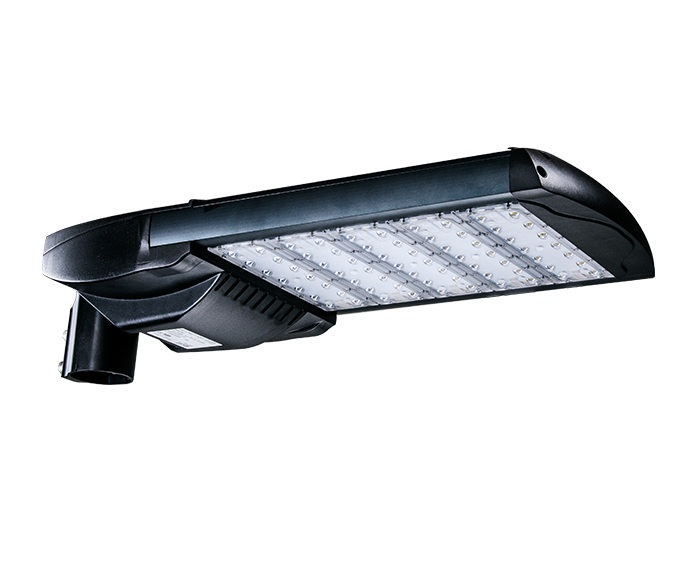

Color OptionsSilver or Black
Warranty7 years



FAQ

1. What voltage are most street lights?

120 volts

The most common street lamp operating voltage is 120 volts (62%), followed by 240 volts (28%). The majority of entities (82%) that own street lights use a separate photocell to control the on/off function of the street light.


2. What power supply voltage do LED street lights to use?

Each LED module is driven by a constant current driver. In this type of system, the main supply generates an isolated fixed voltage of typically 24 or 48V that is low enough to comply with UL safety limits.

For AC drivers, there are narrow voltage (200-240VAC) drivers and wide voltage(90-305VAC) drivers. You could choose the suitable drivers according to the voltage of mains of the country you will install these LED street lights to.

Sometimes for industrial lighting, we also need to choose high voltage drivers with 347VAC, 480VAC or 528VAC.


3. Is there an industry standard for street lighting?

For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
