LED High Bay Light Project In Israel

The industrial warehouse lighting project in Israel was finished in 2016. The lighting situation of this industrial warehouse is very important. Because there are a lot of trucks driving in and out every day. With more than 400 units of 120W HB series LED High Bay Lights, we have greatly improved the environment lighting conditions in this warehouse. Both workers and drivers feel safer and more comfortable working here. We provide 7 years warranty for these warehouse lighting fixtures. No failure feedback about this project was received by now.


Products Details

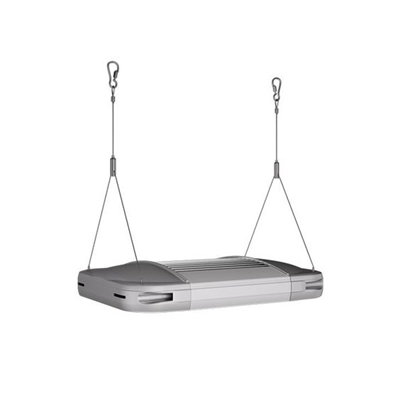

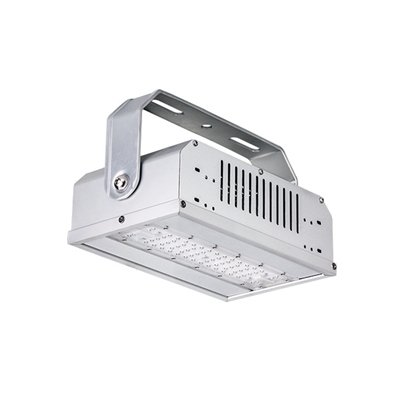

120W LED high bay Light for warehouse lighting, Model: ZGSM-GCD120HB, 4000K, 110degrees,400pcs+


Video

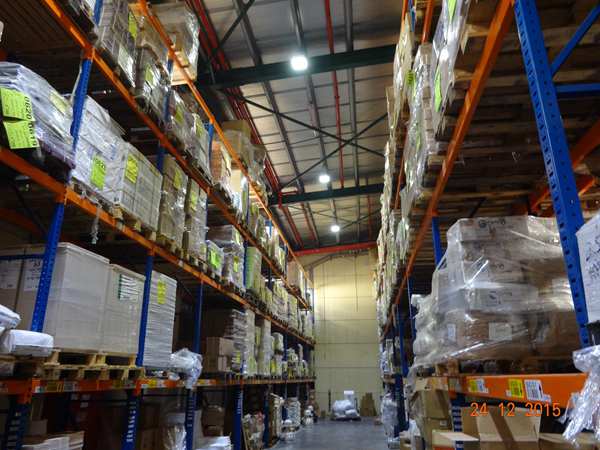

Project Photos

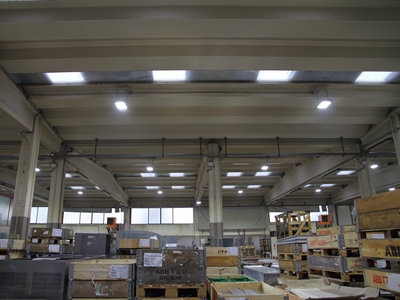

LED High Bay Light Project In IsraelLED High Bay Light Project In Israel


Specification


ModelZGSM-GCD120HB
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Norminal Wattage120W
LED Module Quantity3 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output13,200 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf

Data Sheet_HighBay&Flood&TunnelLight_HB.pdf


Related Products


LED High Bay Light Project In IsraelLED High Bay Light Project In IsraelLED High Bay Light Project In Israel

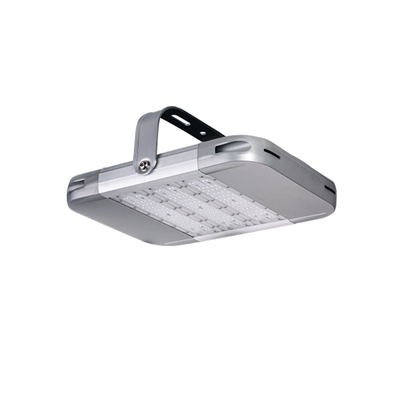

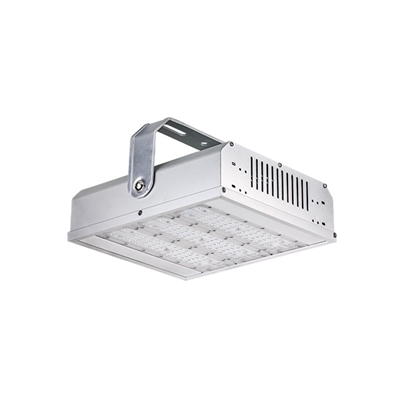

60W Modular Design Warehouse LED Lighting180W Modular Design LED Warehouse Lighting160W UFO High Bay Light
LED High Bay Light Project In IsraelLED High Bay Light Project In IsraelLED High Bay Light Project In Israel
150W High Bay LED Lights For Warehouse200W LED Warehouse Lighting
100W LED UFO Industrial High Bay Light


Related Projects


LED High Bay Light Project In IsraelLED High Bay Light Project In IsraelLED High Bay Light Project In Israel
LED High Bay Light Project in HungaryLED High Bay Light Project in ItalyLED High Bay Light Project in UAE
LED High Bay Light Project In IsraelLED High Bay Light Project In IsraelLED High Bay Light Project In Israel
LED High Bay Light Project in SpainLED High Bay Light Project in Bulgaria
LED High Bay Light Project in Lebanon


Related Blogs


LED High Bay Light Project In IsraelLED High Bay Light Project In IsraelLED High Bay Light Project In Israel
Types And Advantages Of LED High Bay LightsWhat Is a High Bay Light and Its Purpose?
Guide to Buy Led High Bay Light
LED High Bay Light Project In IsraelLED High Bay Light Project In IsraelLED High Bay Light Project In Israel

How To Replace And Repair

Industrial Workshop Lights?

Interpret The Precautions For The Use

Of LED High Bay Light In The Workshop

How To Prevent LED High Bay Light From

Being Damaged By Lightning?


People Also Ask


1. Which type of light is best for warehouse?

The lighting industry's newest rage is LED high bay lighting fixtures. They work incredibly well as warehouse illumination. High-performance, superior quality, and versatile LED high bay lights are available. In comparison to conventional HID and fluorescent lighting systems, they could save energy by more than 60%.


2. How many high bay LED lights do I need for industrial warehouse lighting?

High Bay lights rated at 100 watts should be spaced every 8-14 feet (8 for high brightness, 14 for adequate). For example, a 6x3 pattern has 18 lights for basic lighting, or a 7x3 pattern (or 6x4/8x3 depending on wiring) has 21-24 lights for medium brightness. 8x4 for 32 would be really bright.


3. How to choose the Color Temperature(CCT) for warehouse lighting?

We could provide 3000K, 4000K, 5000K, 5700K and 6500K for your options. The color you choose is influenced by your personal preferences, but it is mostly determined by the purpose for which it will be utilized. The color temperature we sold most are these 3 kinds as below:

3000K: It is a warm color that is often used in restaurants and residences.

4000K: It is a natural color that works well in workplaces and conference rooms.

5000K: It is the most common color, which provides a cool white color close to sunshine. It works best in large spaces or outdoors.
