LED High Bay Light Project In Hungary

The warehouse LED lighting project in Hungary was finished in 2016. More than 500pcs 100W HB series high bay LED lights with Meanwell dimmable drivers were installed in this project. Meanwell HLG series drivers have 3 in 1 dimming functions, including 1-10V DC, 10V PWM signal and resistance dimming. These functions could meet different requirements of different LED high bay lighting applications, such as remote control, smart lighting systems, adding motion sensors. We provide 7 years warranty to our HB series high bay lights.


Product Details

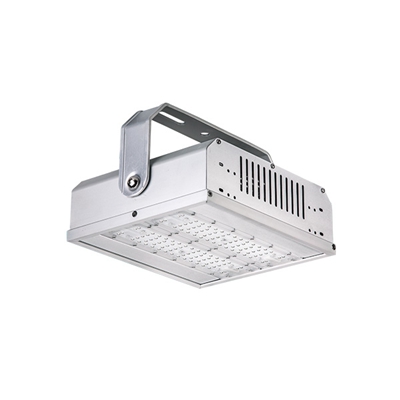

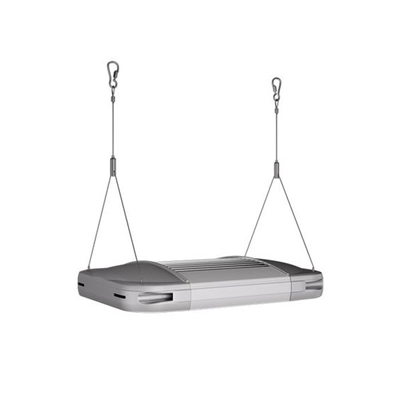

100W LED High Bay/ Flood Light, Model:ZGSM-GCD100H5B, 5000K,110degree,+500pcs


Video

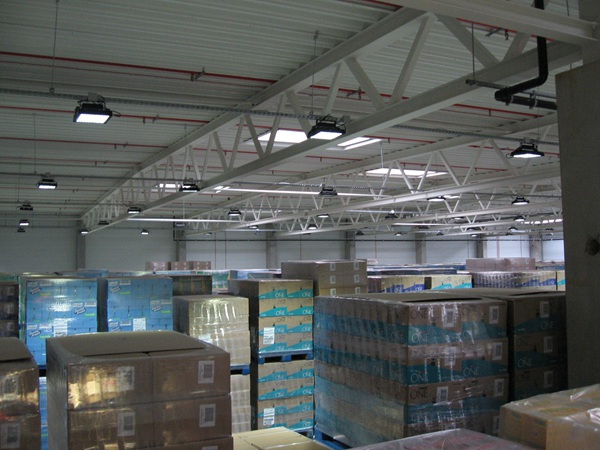

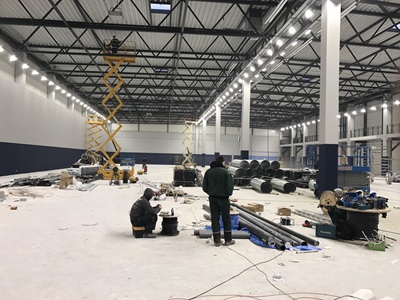

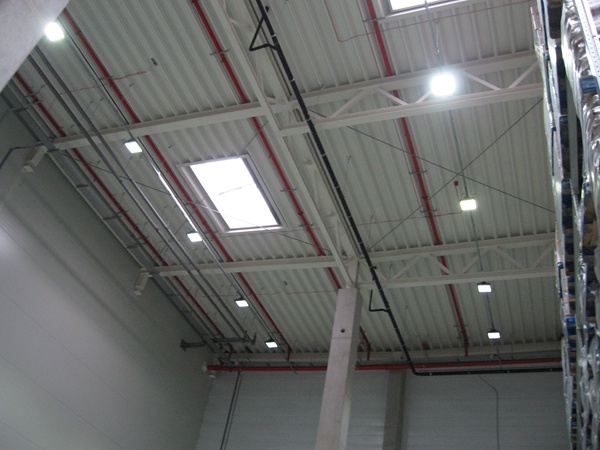

Project Photos


LED High Bay Light Project In HungaryLED High Bay Light Project In Hungary


Specification


ModelZGSM-GCD100H5B
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Norminal Wattage100W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output13000-16000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf

Data Sheet_HighBay&Flood&TunnelLight_HB.pdf


Related Products


LED High Bay Light Project In HungaryLED High Bay Light Project In HungaryLED High Bay Light Project In Hungary

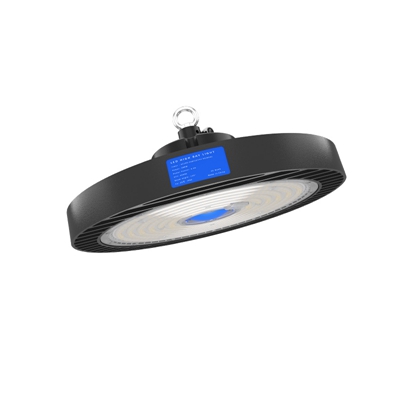

120W High Bay LED LightingIP66 IK10 160W UL High Bay Light160W UFO High Bay Light
LED High Bay Light Project In HungaryLED High Bay Light Project In HungaryLED High Bay Light Project In Hungary
360W Workshop LED LightSuspended 120W High Bay LED Lighting150 Watt UFO High Bay LED Light


Related Projects


LED High Bay Light Project In HungaryLED High Bay Light Project In HungaryLED High Bay Light Project In Hungary
High Bay LED Light Project In UAE
High Bay LED Light Project In BulgariaHigh Bay LED Light Project In France
LED High Bay Light Project In HungaryLED High Bay Light Project In HungaryLED High Bay Light Project In Hungary
High Bay LED Light Project In ItalyHigh Bay LED Light Project In Israel
High Bay LED Light Project In Spain


Related Blogs


LED High Bay Light Project In HungaryLED High Bay Light Project In HungaryLED High Bay Light Project In Hungary
How To Choose A Good LED High Bay Light?What Are The Advantages Of Led High Bay Light ?Why Does Led Use High Bay Light?
LED High Bay Light Project In HungaryLED High Bay Light Project In HungaryLED High Bay Light Project In Hungary

What Is The Installation Distance

Of LED High Bay Light?

Interpret The Precautions For The Use Of

LED High Bay Light In The Workshop

How To Prevent LED High Bay Light From

Being Damaged By Lightning?


People Also Ask


1. How many high bay LED lights do I need?

High Bay lights rated at 100 watts should be spaced every 8-14 feet (8 for high brightness, 14 for adequate). For example, a 6x3 pattern has 18 lights for basic lighting, or a 7x3 pattern (or 6x4/8x3 depending on wiring) has 21-24 lights for medium brightness. 8x4 for 32 would be really bright.


2. Why do some high bay LED lights have 7 wires?

Typical high bay LED light fixtures have three, five, or even seven wires coming out of the fixture housing. Two wires, black and white, are used for power, while green is used for ground. 0-10v dimming is available on high bay lights with 5 wires. High bay lights with seven wires are designed to work with 12 volt controllers. The cables are labeled in most cases so you know which ones are for 0-10v dimming and which ones are for 12v controls.

Any other questions, pls contact us for more details.
