LED High Bay Light Project In Italy

The factory warehouse lighting project in Italy was finished in 2017.  About 33 units of 240W H5 series LED high bay lights (ZGSM-GCD240H5) were installed on the ceiling of this warehouse at the height of 8 meters. Modular design 240W H5 series high bay LED lights have 5 modules. It's easy to maintain and install. Equipped with high-end Meanwell drivers, our H5 series high bay lights can be applied to different countries with voltage ranges from 90V to 305V AC.


Product Details


Product: 240W LED High Bay Light

Model No.: ZGSM-GCD240H5

LED: Lumileds 3030

Driver: Meanwell

CCT: 5700K

Optics: 110degrees

QTY: 33 Units


Video

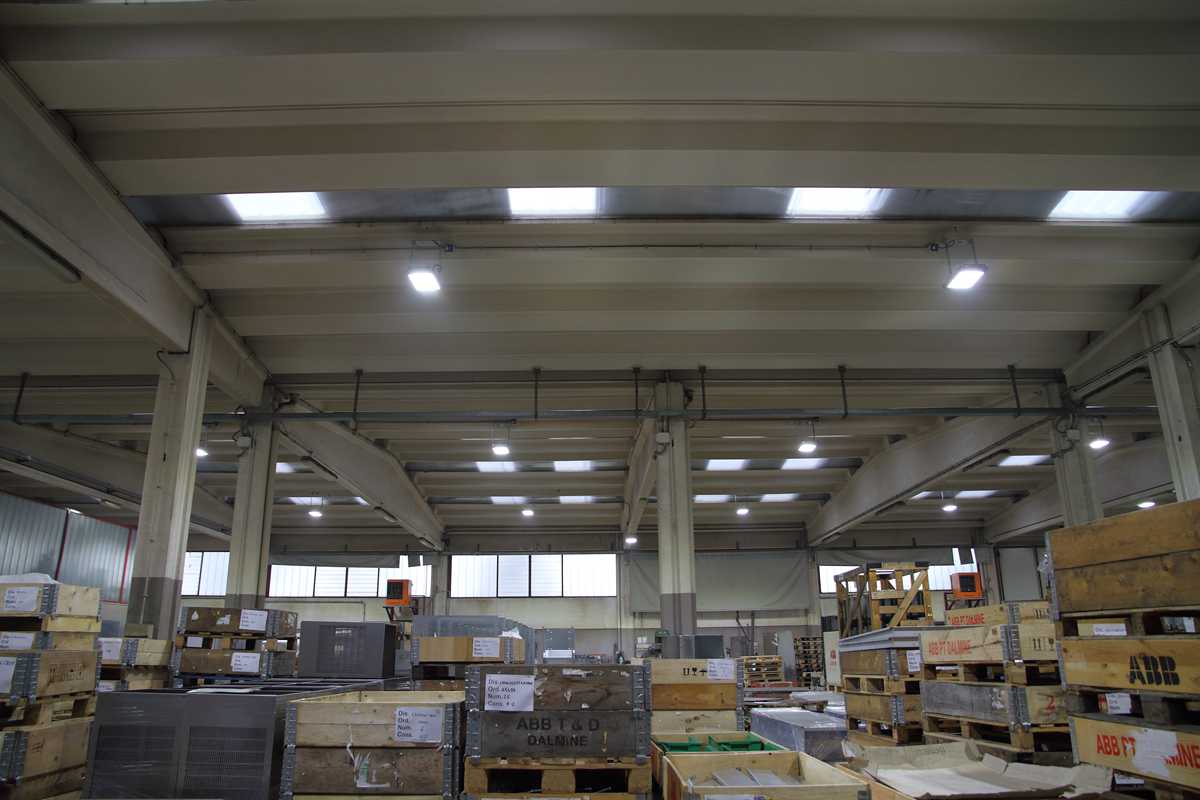

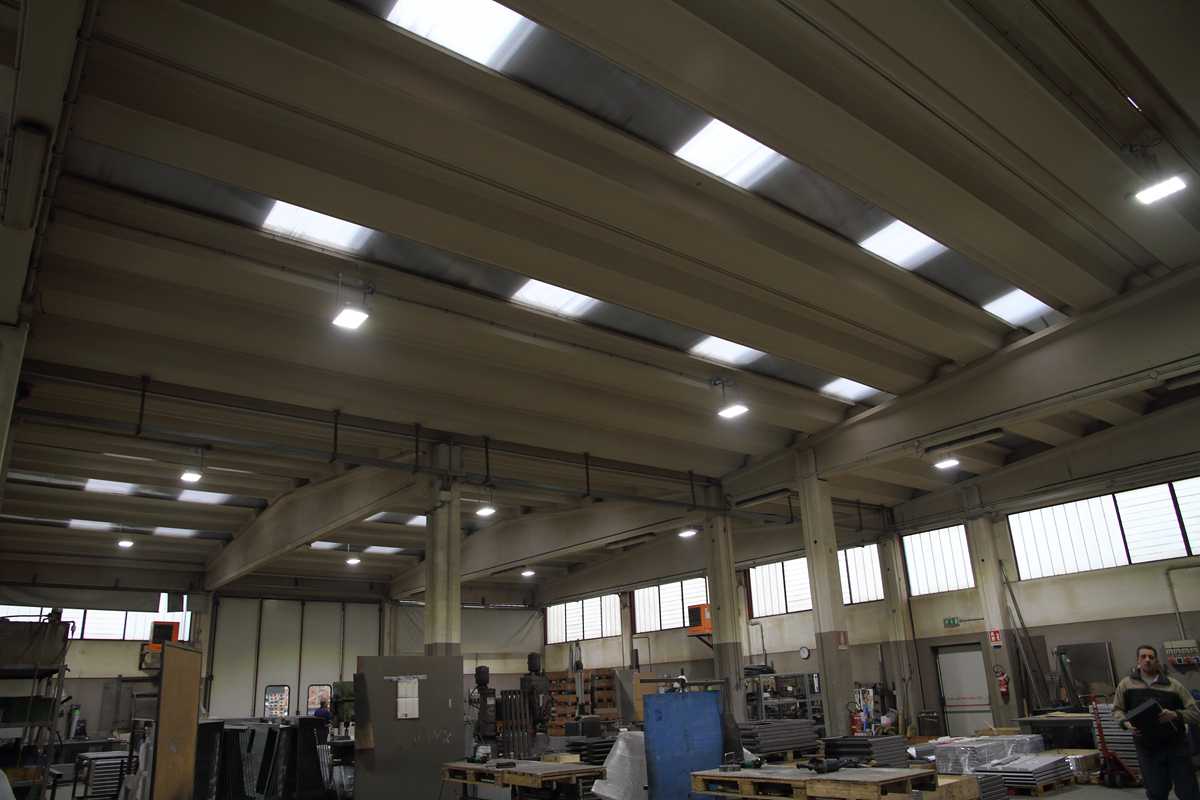

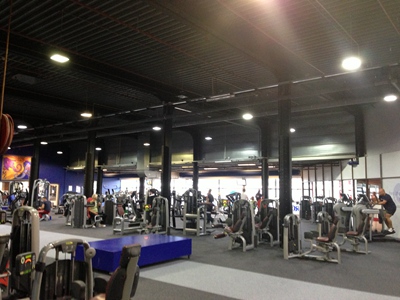

Project Photos


LED High Bay Light Project In Italy

LED High Bay Light Project In Italy


Specification


ModelZGSM-GCD240H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage240W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output31200-38400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf


Related Products


LED High Bay Light Project In ItalyLED High Bay Light Project In ItalyLED High Bay Light Project In Italy

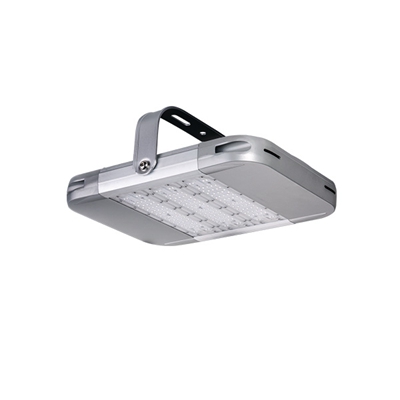

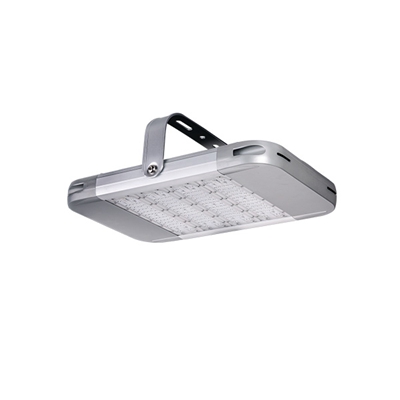

150W High Bay LED Lights For Warehouse200W LED Warehouse Lighting200W UFO High Bay Light For Warehouse
LED High Bay Light Project In ItalyLED High Bay Light Project In ItalyLED High Bay Light Project In Italy

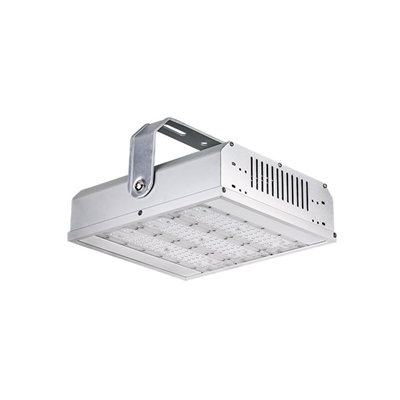

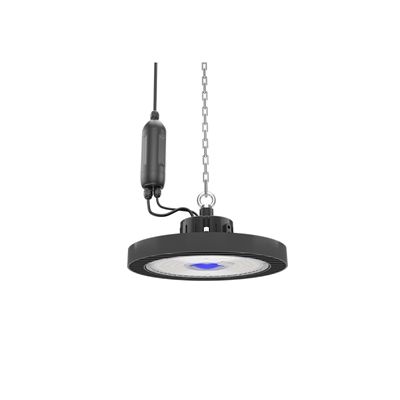

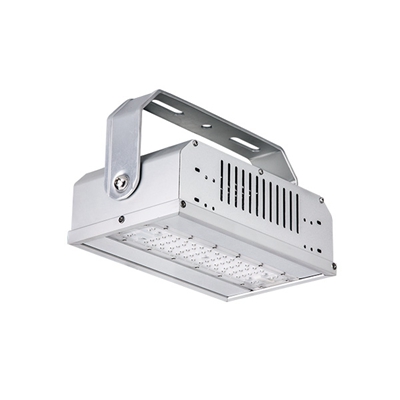

180W Modular Design LED Warehouse Lighting60W Modular Design Warehouse LED Lighting100W LED UFO Industrial High Bay Light


Related Projects


LED High Bay Light Project In ItalyLED High Bay Light Project In ItalyLED High Bay Light Project In Italy

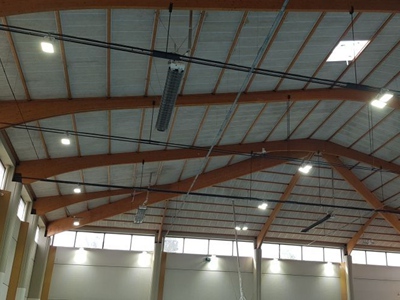

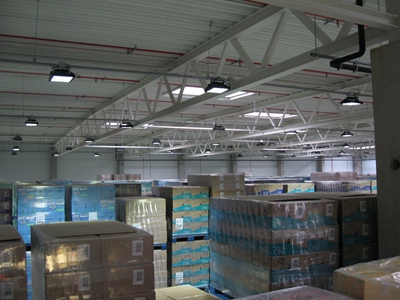

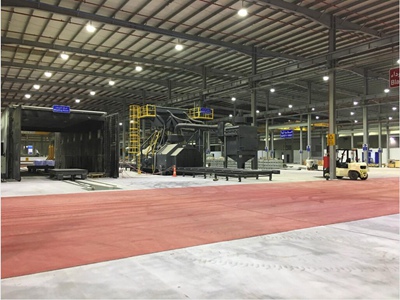

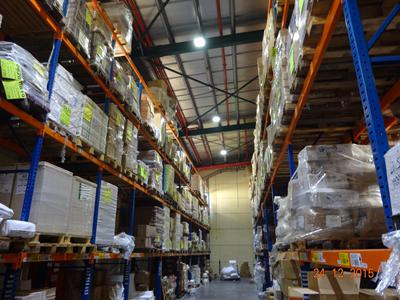

LED High Bay Light Project In HungaryLED High Bay Light Project In UAELED High Bay Light Project In Bulgaria
LED High Bay Light Project In ItalyLED High Bay Light Project In ItalyLED High Bay Light Project In Italy

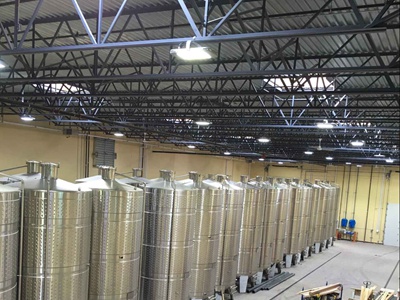

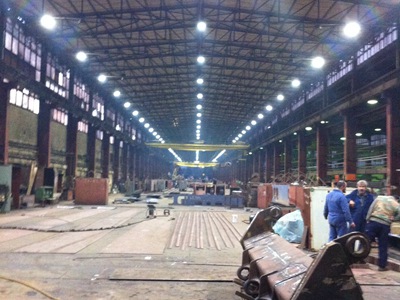

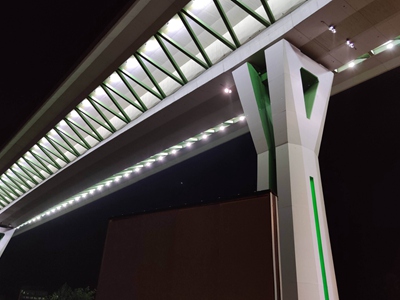

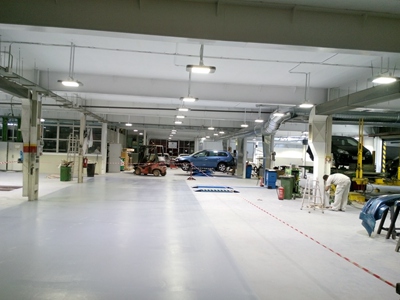

LED High Bay Light Project In CanadaLED High Bay Light Project In Croatia

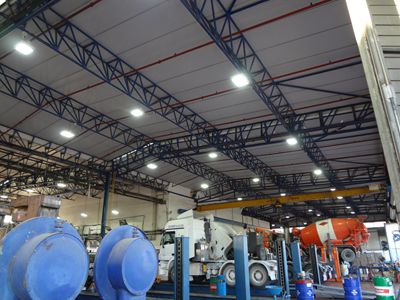

LED High Bay Light Project In Israel


Related Blogs


LED High Bay Light Project In ItalyLED High Bay Light Project In ItalyLED High Bay Light Project In Italy
Why Does High Bay Light Use LED?
What Is a High Bay Light and Its Purpose?
How To Choose A Good LED High Bay Light?
LED High Bay Light Project In ItalyLED High Bay Light Project In ItalyLED High Bay Light Project In Italy

What Is The Installation Distance

Of LED High Bay Light?

How To Replace And Repair Industrial Workshop Lights?

How To Prevent LED High Bay Light

From Being Damaged By Lightning?


People Also Ask


  1. Which is brighter 3000K or 5000K?

    The letters K, which stand for Kelvin and indicate the actual temperatures as determined by the Kelvin scale, stand for Warm White and Cool White. Cool White is closer to 5000k than Warm White, which is roughly 3000k. On a scale, warmer values fall lower and cooler values higher.


  2. How many lux are needed in a warehouse?

    In warehouses, 100 lux of light is typically enough. It can be altered, though, depending on the usage and the location. For example, 200 lux of light may be required to ensure that little items are identified in the storage facilities where they are kept. It is advised to have light levels of 300 lux in cold storages.


  3. How do you replace metal halide with LED?

    Depending on how the existing lighting configuration is configured, there are a variety of approaches to retrofit lighting systems with LEDs. In many circumstances, replacing the existing fixture with a new LED fixture that produces a comparable lumen output is the simplest and most basic solution.

    In other cases, reconfiguring a complete lighting system plan to effectively update to LED technology may be necessary. There are a few cases when an LED retrofit kit can be used to update an existing fixture, but this requires some electrical knowledge to execute successfully.
