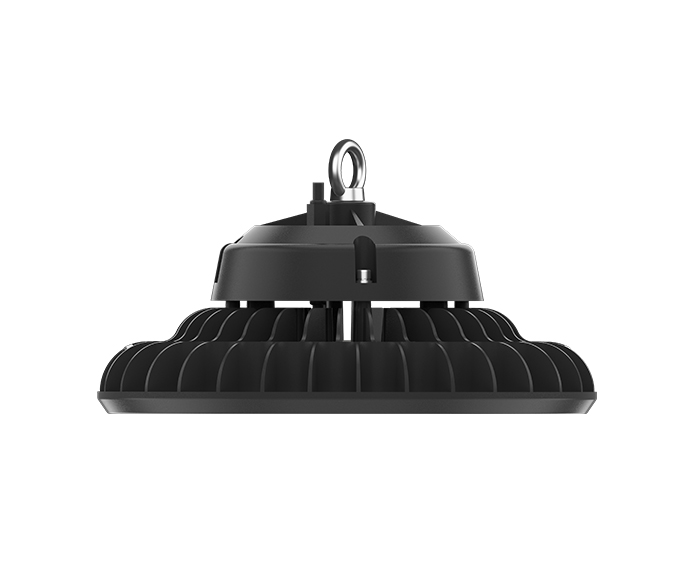

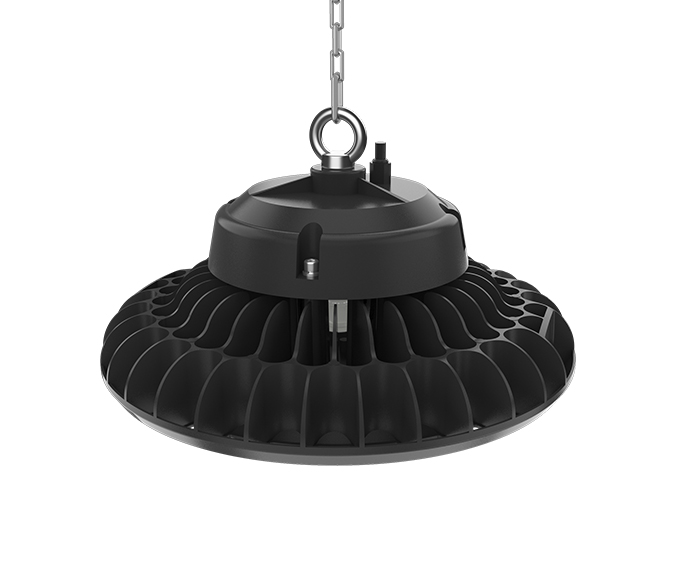

200W led ufo lights

led ufo lights are the most energy-efficient solution for all your industrial and commercial lighting needs. If you run a warehouse, assembly plant, or grocery store, round LED luminaires are perfect for you.

ZGSM offers a wide range of LED high/low bay lights for all commercial warehouse, stadium, and retail lighting needs.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 100W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 155lm/ w with high-quality LED chips.

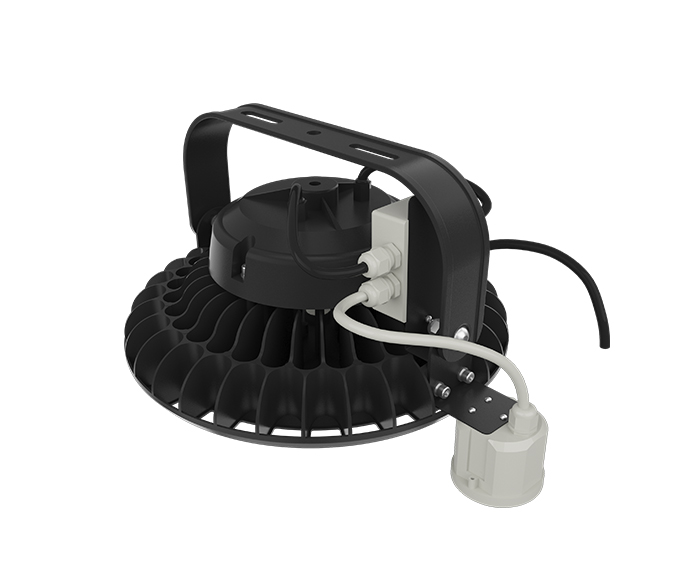

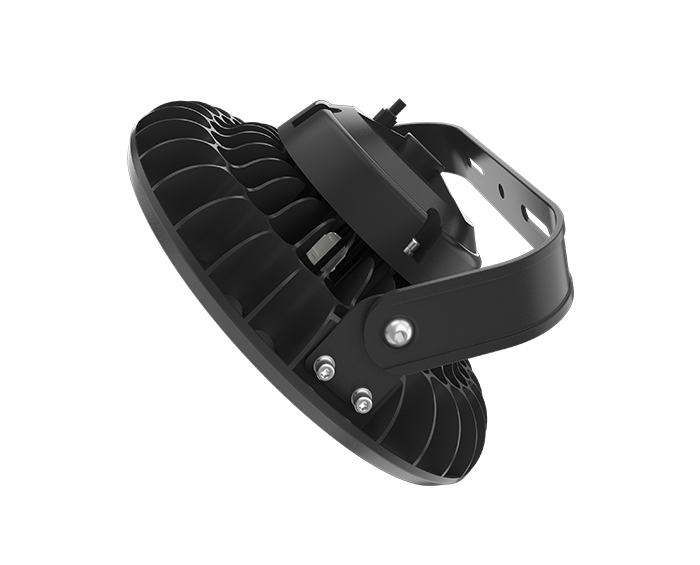

4. Variety applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.

Specifications

ModelZGSM-UFO200M
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HBG series
Normal Wattage200W
LED  Quantity3030: 304pcs 5050: 152pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-155 lm/w
Lamp Rated Lumen output28000-31000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
Cover110°-Tempered glass;60°-PC lens
RatingIP65 IK08
Protection Class I
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsBlack
Warranty5 years


FAQ

How do I choose a high bay LED light?

Ceiling HeightRecommended Lumens Output
Under 12 ft7800 - 9000 lumens
12-ft to 18-ft13000 - 16000 lumens
18-ft to 24-ft19500 - 24000 lumens
24-ft to 30-ft26000 - 32000 lumens
30-ft to 35-ft36000+ lumens

What is the difference between a low and high bay light?

Low bay lights are only available for ceilings 12-20 feet high. High-bay lights can illuminate ceilings 20-45 feet high. The intensity of the lights is also different. Low bay lighting is less than 100 watts, while high bay lighting can exceed 100 watts.
