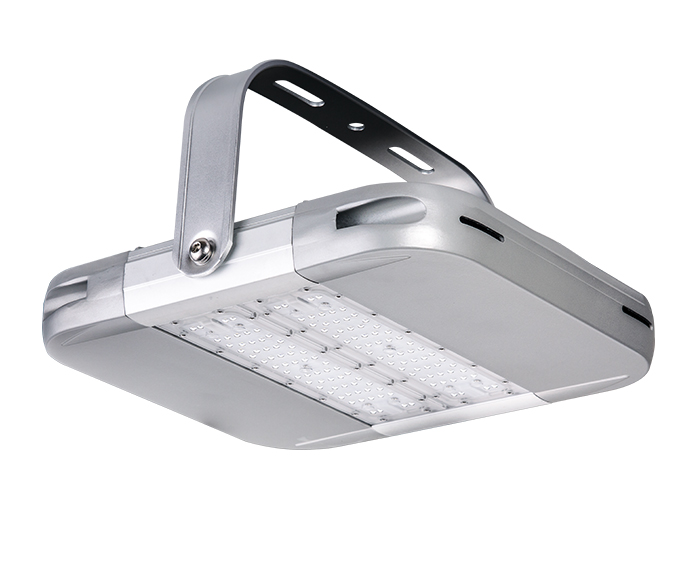

80w Modular Design LED Suspend Bay Light

80w Modular Design LED Suspend Bay Light facilitates your installation and damages your ceiling. The modular design facilitates the maintenance of luminaires. Can be installed in Warehouse, Workshop, Garage, Area, and other commercial areas.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

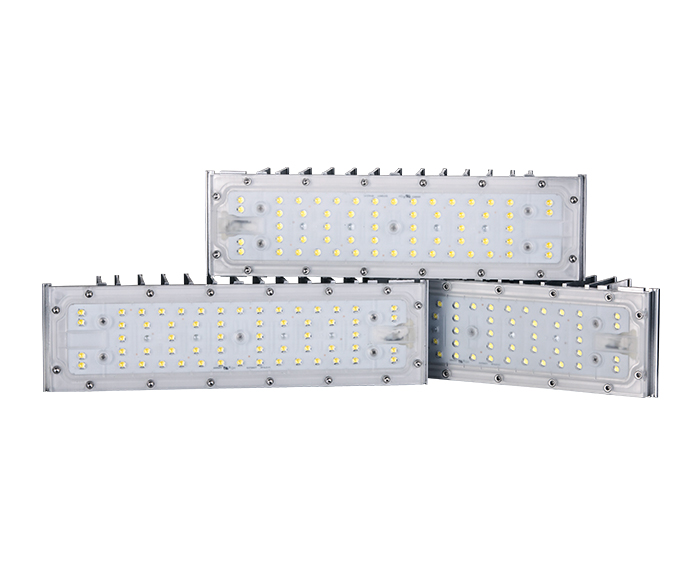

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD80H4
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage80W
LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output11200-13200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

Advantages of Using LED Suspend Bay Light

· Easy to customize to your liking.

· Easy to install; No need to damage your ceiling.

· Reduces glare and eye strain.

· Space-saving and reliable light source for a wide range of venues.


What is a high bay shop light?

A high bay light is often defined as a lamp used for a ceiling 20-40 feet from the floor. High ceilings are often found in industrial and some commercial spaces.
