ShoeBox LED Parking Lot Light

Home  /  Products / LED Parking Lot Light / ShoeBox LED Parking Lot Light
  • IP66 IK08 150w ShoeBox parking garage led
  • IP66 IK08 150w ShoeBox parking garage led
  • IP66 IK08 150w ShoeBox parking garage led
  • IP66 IK08 150w ShoeBox parking garage led
  • IP66 IK08 150w ShoeBox parking garage led

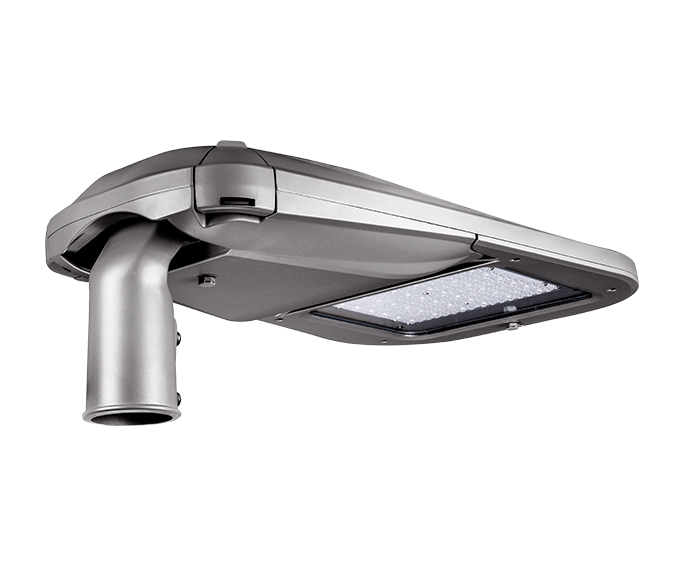

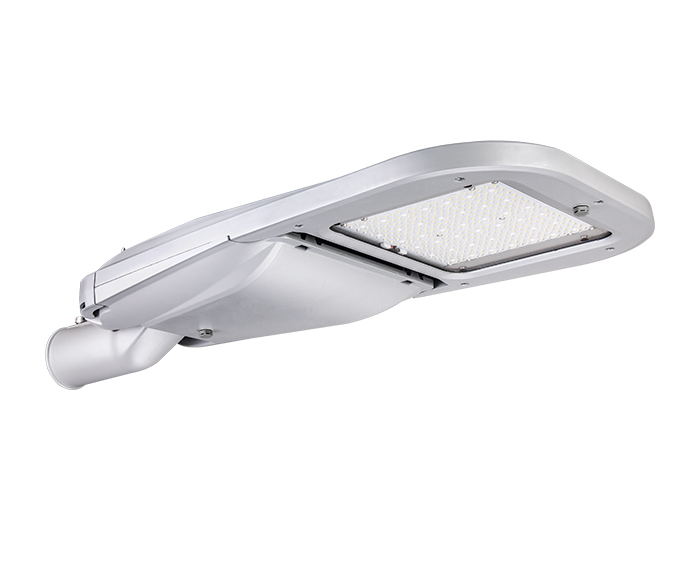

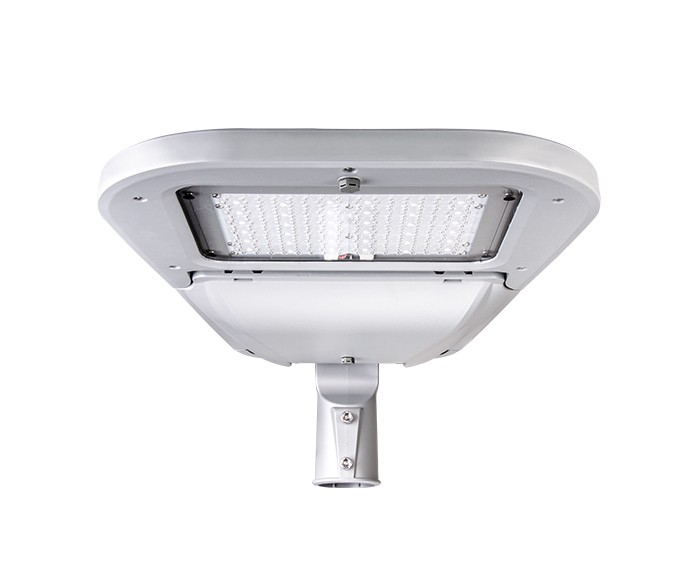

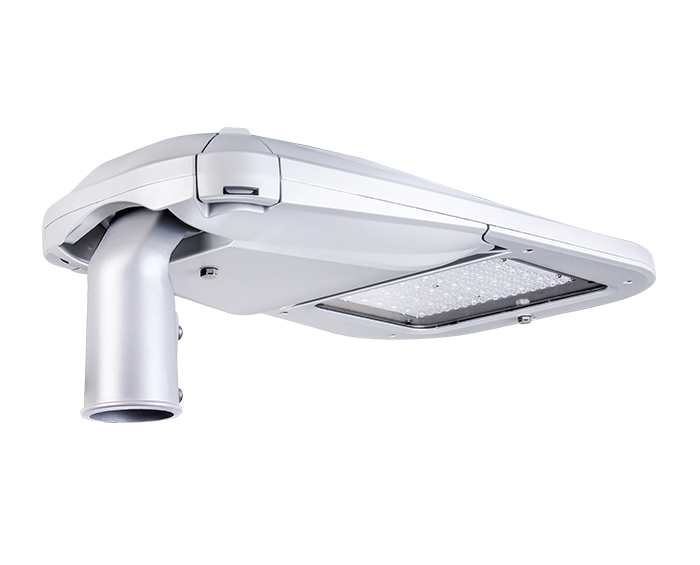

IP66 IK08 150w ShoeBox parking garage led

LED parking lot lighting shoebox design, the modern exterior design is designed to illuminate the streets, outdoor parking lots, sidewalks, and other outdoor areas. When your Parking Lot lights are equipped with Photocell, the parking lot lights become 100% bright when the car is close, and the parking lot light is dimmed to 30% brightness when the car leaves.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

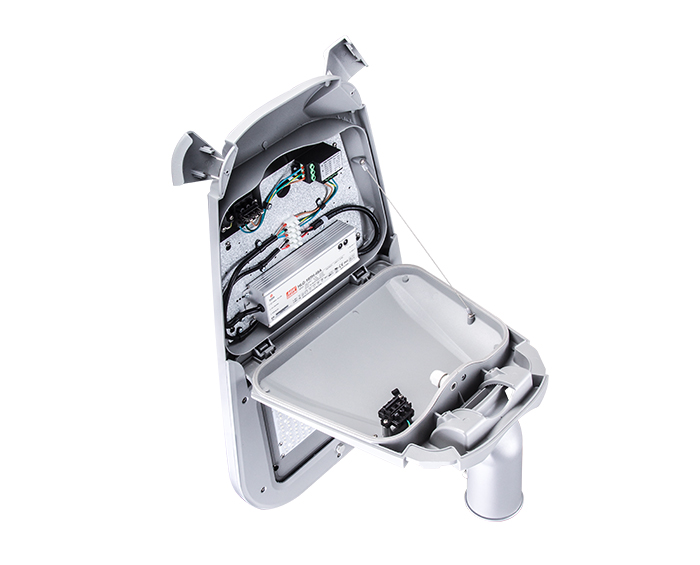

3. Tool-less open for easy installation, replacement and maintenance.

4. Power-off protection makes the power automatically off when fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high quality LED chips.

8. Pass the 1000 hour salt spray test.

9. Vertical and horizontal installation both available, adjustable by ±15° in both directions.

10.Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11.Designed to last at least 100, 000 hours at L70.

12.Multiple lighting distributions are available.

13.ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79


Specifications

ModelZGSM-LD150KL
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics/ Inventronics
Normal Wattage150W
LED Chip Quantity3030: 240pcs 5050: 120pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-150 lm /w
Lamp Rated Lumen output19500-22500 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum;Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB, ROHS, LM-80, LM79, ISTMT, IP66, IK08
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years


FAQ

What are street and parking lights?

Parking lot lights are generally high-power lights installed on the top of the light poles. These luminaires perform the functions described in their names, illuminating streets, outdoor parking lots, sidewalks, and other outdoor areas. These are durable, weather-resistant lamps. Here are some examples of commercial parking lot lights:

LED shoebox light

LED post top light

Cobra head LED street lights

Outdoor pole lights


How many watts are there for the parking lot lights?

The average power range for LED parking lights is 65 to 400 watts, while HID (large fluorescent lights traditionally used in parking lots) ranges from 400 to 1000 watts. Switching to LED street lights could save thousands of dollars in electricity bills.
