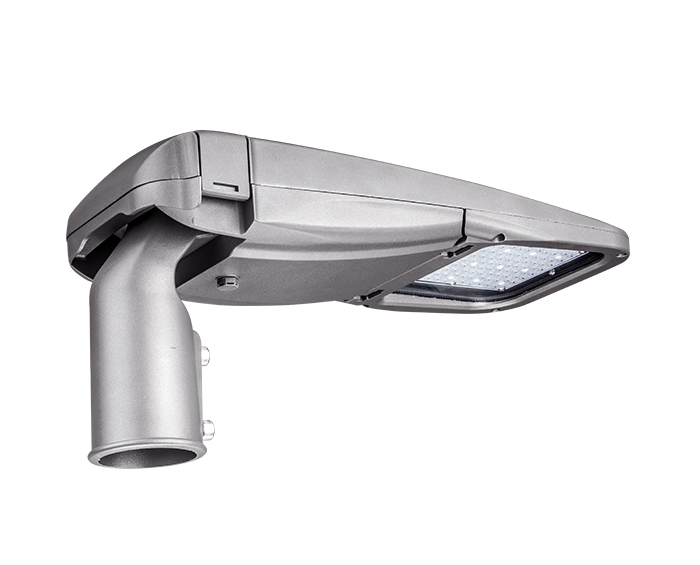

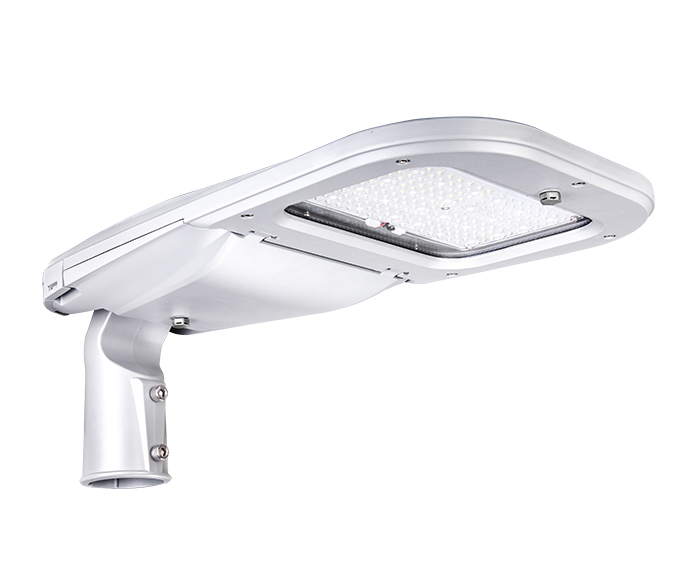

ShoeBox LED Parking Lot Light

Home  /  Products / LED Parking Lot Light / ShoeBox LED Parking Lot Light
  • Tool-less 25w ShoeBox car park lighting
  • Tool-less 25w ShoeBox car park lighting
  • Tool-less 25w ShoeBox car park lighting
  • Tool-less 25w ShoeBox car park lighting
  • Tool-less 25w ShoeBox car park lighting

Tool-less 25w ShoeBox car park lighting

Series K LED Parking Lot Light

Model:

ZGSM-LD25KS

Application:

Street | Road | Highway | Parking lot | Bridge | Path


PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Tool-less open for easy installation, replacement and maintenance.

4. Power-off protection makes the power automatically off when fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high quality LED chips.

8. Pass the 1000 hour salt spray test.

9. Vertical and horizontal installation both available, adjustable by ±15° in both directions.

10.Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11.Designed to last at least 100, 000 hours at L70.

12.Multiple lighting distributions are available.

13.ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

Specifications
ModelZGSM-LD25KS
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Norminal Wattage25W
LED Chip Quantity3030: 48pcs 5050: 24pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-145 lm /w
Lamp Rated Lumen output3125-3625 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium;Type II Medium;Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years



FAQ

Packing Details
Fixture Dimension614 X224 X135 mm
Fixture Weight5.8 kg /12.8 lbs
Packing Dimension675 X290 X220 mm
Packing Weight7.3 kg /16.1 lbs
