LED Street Lighting Project In Malaysia

The city street lighting project in Malaysia was completed in 2020. It adopted ZGSM H Series modular-designed LED street lights with Inventronics dimmable driver, which could work together with ZIGBEE and LORA smart control system. With the smart control system, it's very convenient for us to monitor and control the street lamps by software on smart electronic devices like PC, mobile phone or tablet computer. After the completion of this project, the lighting effect is very good. It has become a demonstration project in Kota Serimas, Malaysia, which is of great help to the city's promotion and realization of a smart city. Our clients are very satisfied with the result.


Products Details

Product: 165W H Series LED Street Light

Model No.: ZGSM-LD165H

LED: Lumileds 3535

Driver: Inventronics

CCT: 5700K

Optics: Type 2M

Housing Color: Silver & Grey

QTY: 5000+ Units


Video

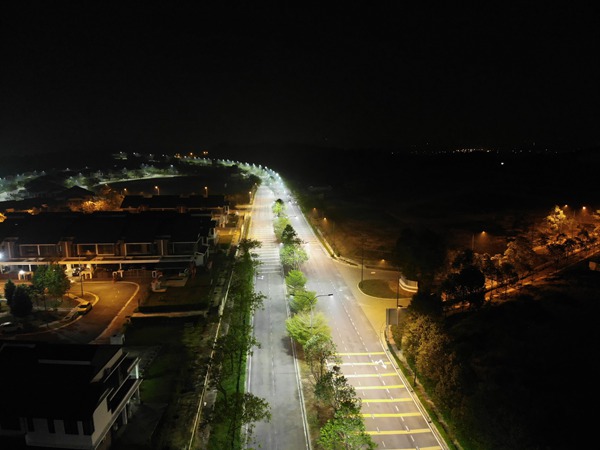

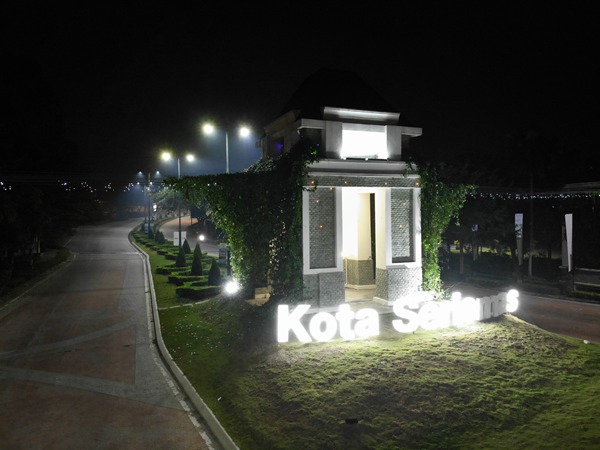

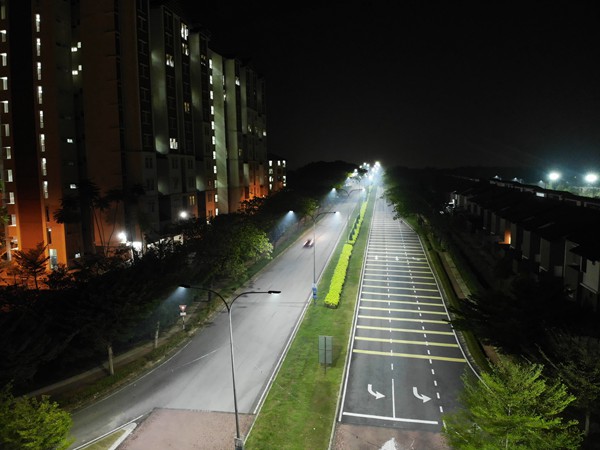

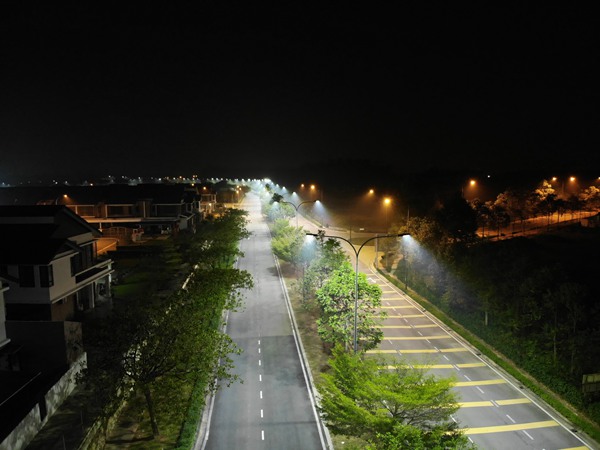

Project Photos


LED Street Lighting Project In MalaysiaLED Street Lighting Project In MalaysiaLED Street Lighting Project In MalaysiaLED Street Lighting Project In Malaysia


Specification


ModelZGSM-LD165H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage165W
LED Module Quantity5 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output18150 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf


Related Products


LED Street Lighting Project In MalaysiaLED Street Lighting Project In MalaysiaLED Street Lighting Project In Malaysia

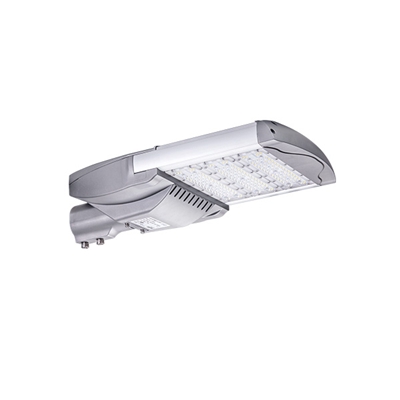

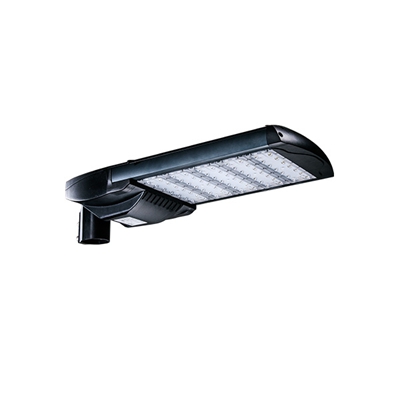

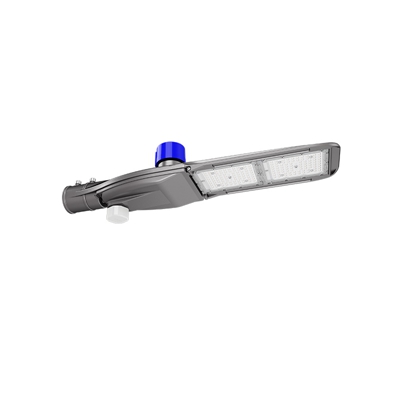

165W Modular Design Street Lighting Lamp70w Economical Municipal Street Lighting40w Smart City Glass Cover LED Street Light
LED Street Lighting Project In MalaysiaLED Street Lighting Project In MalaysiaLED Street Lighting Project In Malaysia

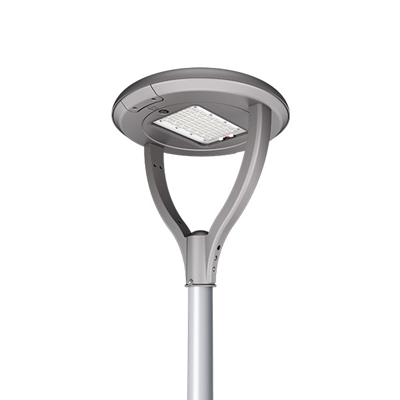

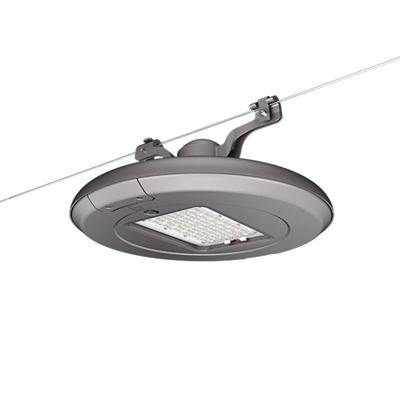

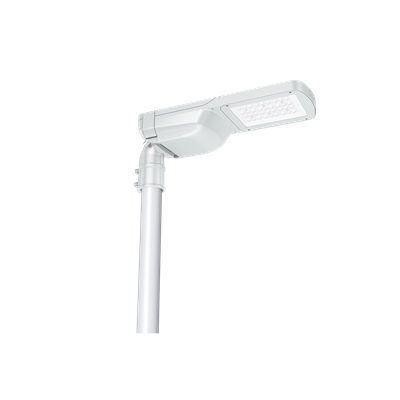

European style 70w Smart Street LightingMulti-purpose 37w Tool-less City Street LightingIP66 IK10 150w Modular Design street led lights


Related Projects


LED Street Lighting Project In MalaysiaLED Street Lighting Project In MalaysiaLED Street Lighting Project In Malaysia

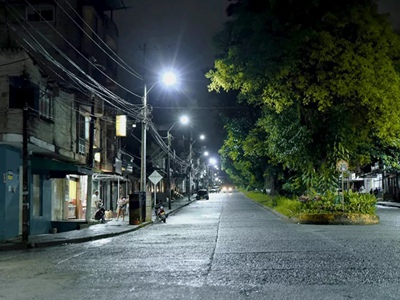

LED Street Light Project In Colombia

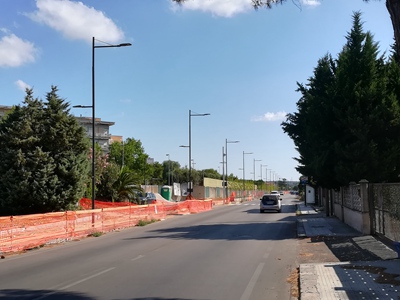

LED Street Light Project In Italy

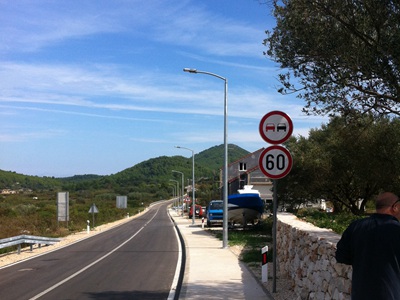

LED Street Light Project In Croatia
LED Street Lighting Project In MalaysiaLED Street Lighting Project In MalaysiaLED Street Lighting Project In Malaysia

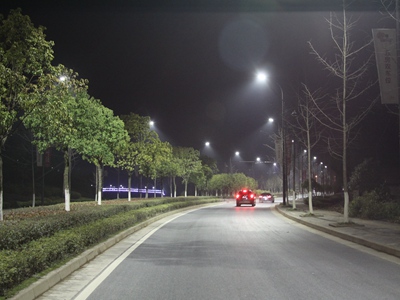

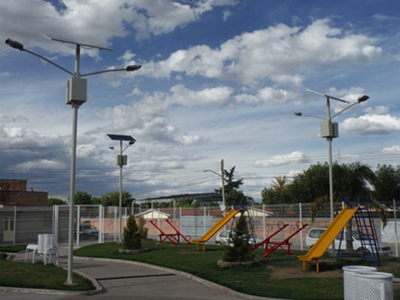

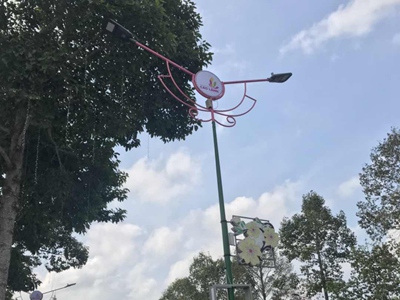

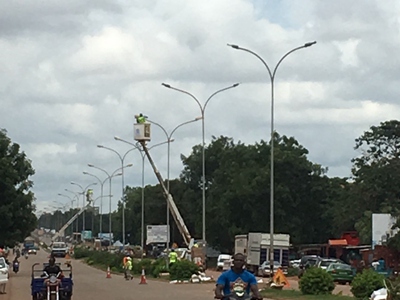

LED Street Light Project In Burkina FasoLED Street Light Project In VietnamLED Street Light Project In Hangzhou, China


Related Blogs


LED Street Lighting Project In Malaysia
LED Street Lighting Project In MalaysiaLED Street Lighting Project In Malaysia

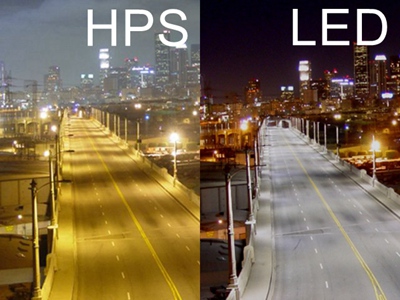

LED Street Light vs HPS/LPS Light,

Which Is Better?

How to Increase the Service Life

of Solar Street Lamps?

Talk About the Price of Solar Street Lights

(Part 1)

LED Street Lighting Project In MalaysiaLED Street Lighting Project In MalaysiaLED Street Lighting Project In Malaysia
6 Things Must Know about Solar Street Light
Eight Factors for the Popularity of Solar Street LightsDetailed Parameters Of Solar Street Lamp Poles


People Also Ask


  1. Is there an industry standard for street lighting?

    For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.


  2. How can optics and controls help mitigate any negative impacts of public light?

    Controls for ZGSM lighting solutions, such as dusk-to-dawn sensors, can automatically dim or turn off the luminaires depending on the time of day, lowering both energy usage and any adverse environmental effects. Our solutions also include shields to reduce sidelight and uplight as well as, most crucially, "optics" to lessen glare regardless of how much blue light or what color temperature (e.g., 3,000K vs. 4,000K) they produce.


  3. What is a NEMA socket/connector?

    NEMA means National Electrical Manufacturers Association in the USA. NEMA connectors are power plugs and receptacles used for AC mains electricity in North America and other countries that use the standards set by the US National Electrical Manufacturers Association. The voltage ratings for NEMA wire devices range from 125 to 600 volts and the current values range from 15 to 60 amperes (A) (V). For each combination of voltage, electric current carrying capacity, and grounding system, different permutations of contact blade widths, shapes, orientations, and dimensions result in non-interchangeable connections.
