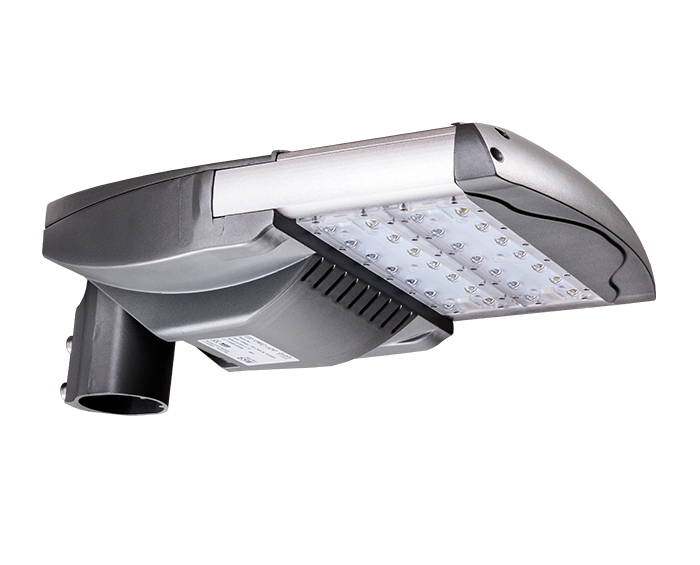

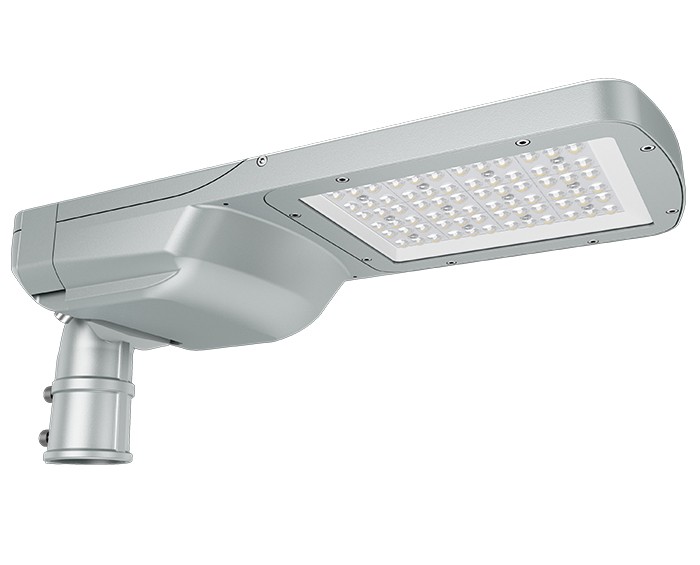

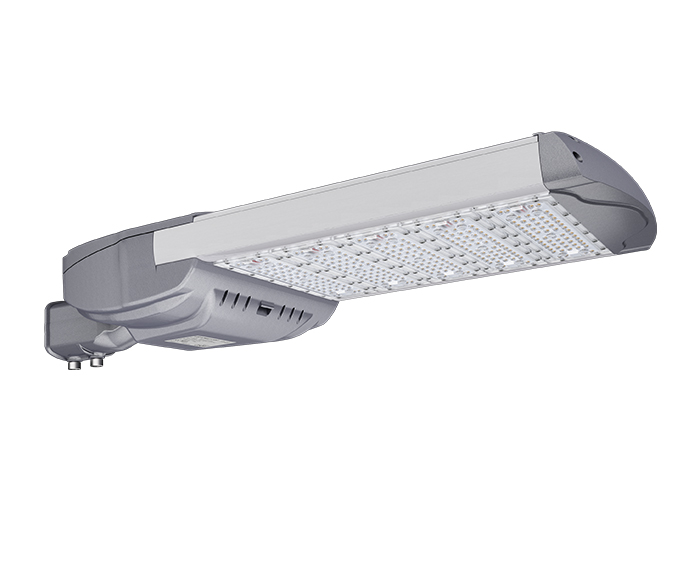

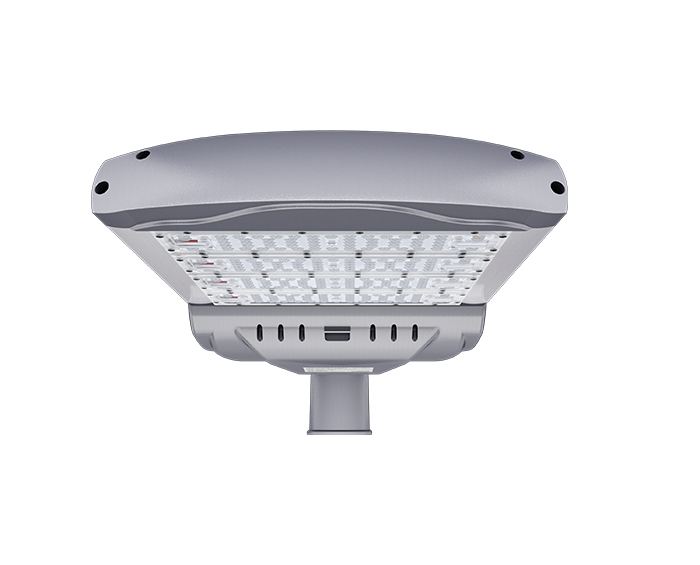

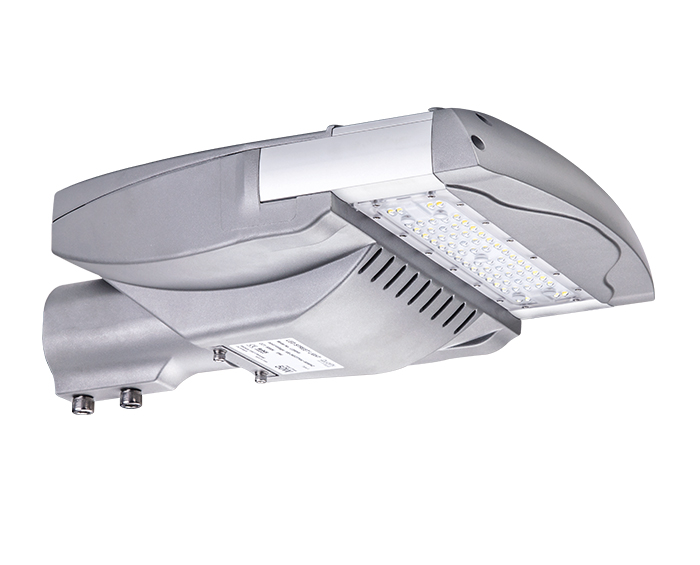

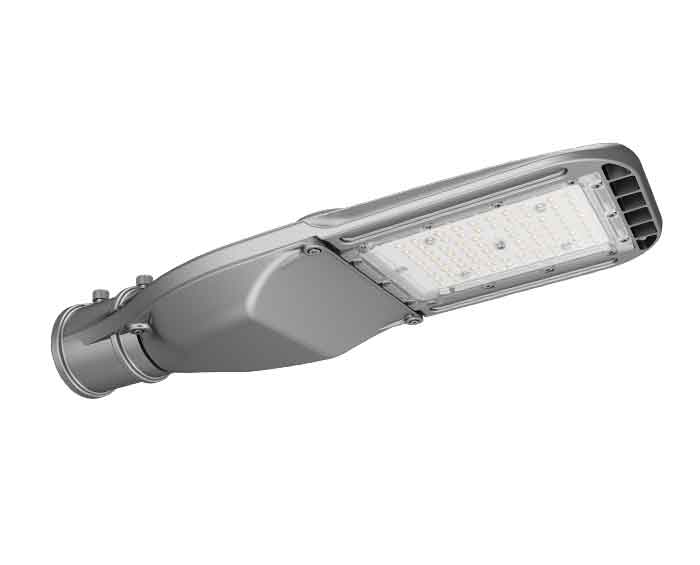

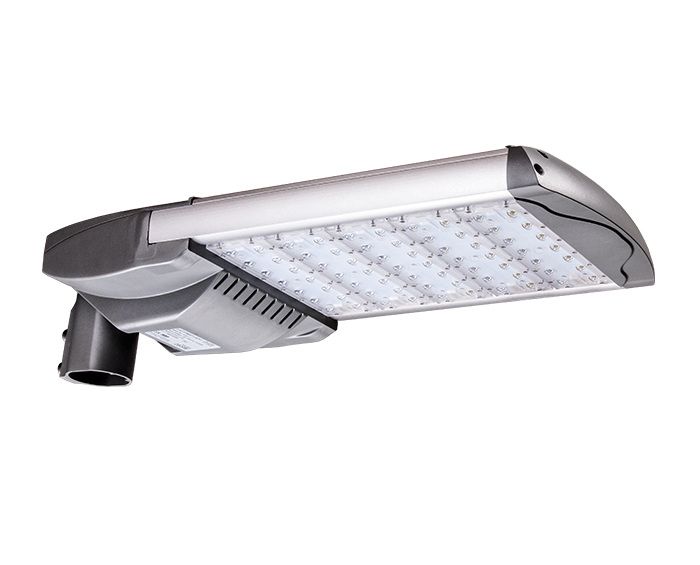

UL and DLC listed 165w Modular Design Street Lighting Lamp

Modular Design Street Lighting Lamp features high energy efficiency, elegant and robust design, high-quality materials, and maximum durability. Take advantage of all the advantages offered by LED technology to save energy consumption and maintenance costs. We have a wide range of high-power LED street light fixtures with a high level of IP protection.



Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

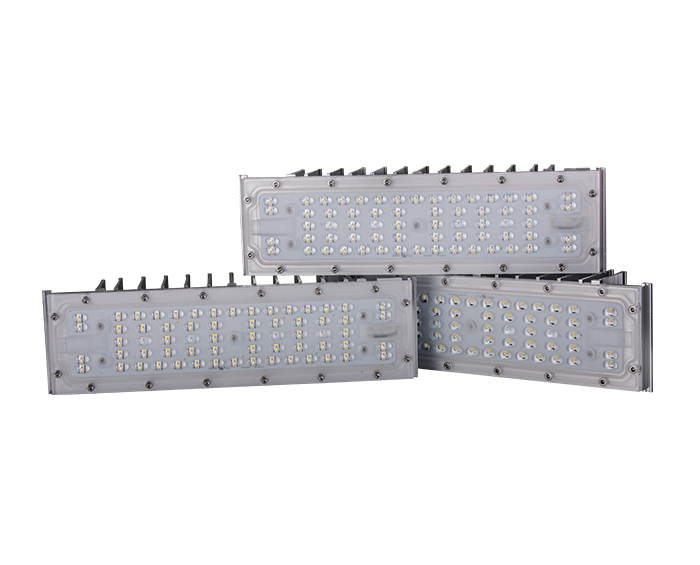

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.


14. 7 years warranty


LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage165W
LED Module Quantity5 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output18150 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control

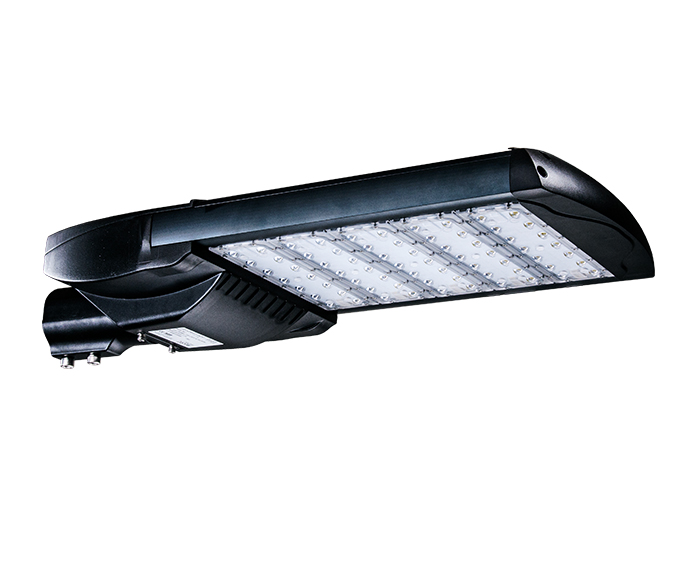

Color OptionsSilver or Black
Warranty7 years


1. How much can I save on LED street lights?

Reduced operating costs: LED street lights can significantly reduce your utility bills while still providing optimal brightness at low wattage. They can also reduce energy consumption by 40 to 60 percent.

2. What is the difference between floodlights and street lights?

Street lights are designed to illuminate a specific direction on the road surface. However, the floodlight covers a wider range and a larger area of the target object. Adding a reflector or lens helps adjust the beam diffusion of the floodlight to flood or focus light.

3. What does a flickering street light mean?

Flickering lights usually indicate a problem with your electrical system and may require urgent attention to avoid the risk of electric shock or electrical fire.
