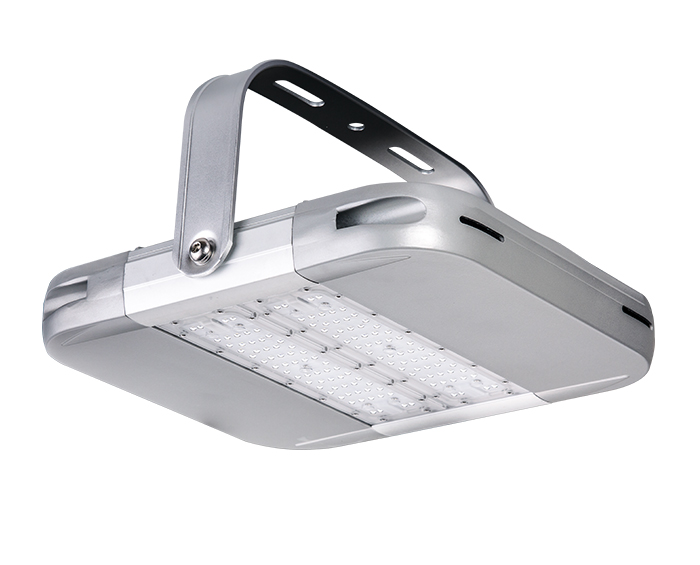

Modular Design LED Flood Light

Home  /  Products / LED Flood Light / Modular Design LED Flood Light
  • 100 watt led flood light
  • 100 watt led flood light
  • 100 watt led flood light
  • 100 watt led flood light
  • 100 watt led flood light

100 watt led flood light

100 watt led flood light, The 360-degree adjustable bracket allows it to be used as outdoor led flood lights, high bay lights, and led tunnel lights. They can be applied for floodlighting, sports area lighting, warehouse lighting, workshop lighting, tunnel lighting, etc.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. High Lumen output up to 165lm/ w with high-quality LED chips.

4. Various applications with different mounting Accessories.

5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.

Specifications

ModelZGSM-FGD100H5
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage100W

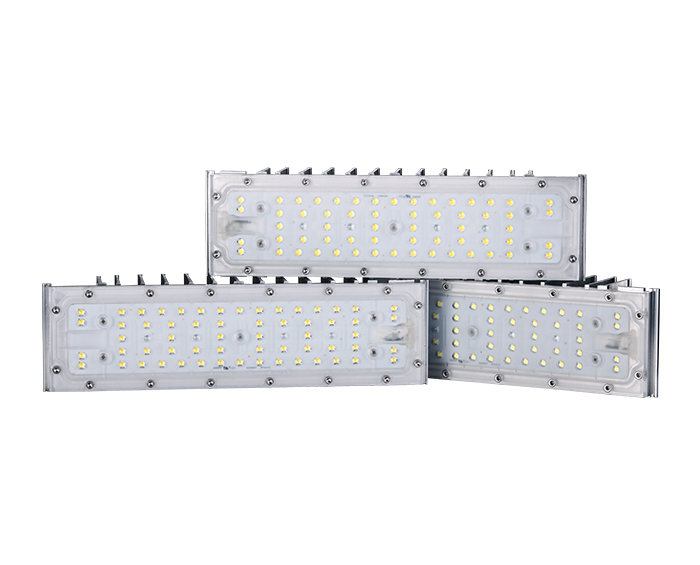

LED Module Quantity2 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output13000-16000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


FAQ

Why is my led flood light strobing?

If there is a voltage change in the luminaire wiring, the LED floodlight may blink. Current fluctuations are often the cause of occasional flickering or flickering LED floodlights. If your floodlight flashes while using other appliances or electrical systems, it may be caused by voltage fluctuations.

What is the difference between a spotlight and a floodlight?

Differences in light patterns

Floods and spots are more or less located at opposite ends of the spectrum. Floodlights are short and wide patterns that are often used to illuminate vast areas; instead, spotlights are designed to travel longer distances, but the beam is narrower.

Is IP66 suitable for outdoor use?

The second number (6) indicates that the floodlight is protected by a strong current, which means that the strong current can be aimed at the floodlight from any direction without causing harmful effects. This shows that the floodlight is completely undamaged by natural elements and can be placed in any outdoor location.
