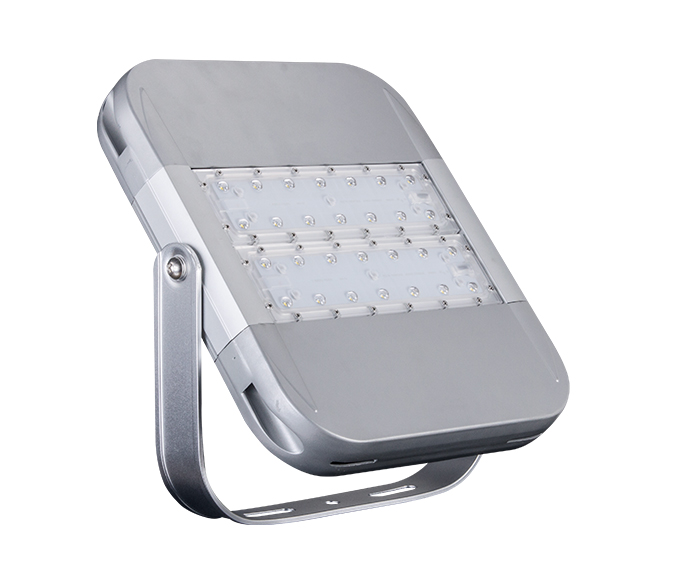

Modular Design LED Flood Light
Series H5 LED Flood Light
Model:
ZGSM-FGD50H5
Application：
Warehouse | Workshop | Billboard | Area | Building
1. Wide power range: 40W~360W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. High Lumen output up to 165lm/ w with high quality LED chips.
4. Various applications with different mounting Accessories.
5. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
6. Designed to last at least 100, 000 hours at L70.
7. Multiple lighting distributions are available.
| Model | ZGSM-FGD50H5 |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 50W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 6500-8000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
| Fixture Dimension | 293 x340 x156 mm |
| Fixture Weight | 3.1 kg / 6.8 lbs |
| Packing Dimension | 345 x365 x160 mm |
| Packing Weight | 3.9 kg /8.6 lbs |
LED Flood Light Project in Spain
LED Stadium Light Project In Italy
LED Street Light Project in Saudi Arabia
LED Canopy Light Project in Malaysia
All In One Solar Street Light Project in Serbia
LED Flood Light Project In Czech
LED High Bay Light Project In Netherlands

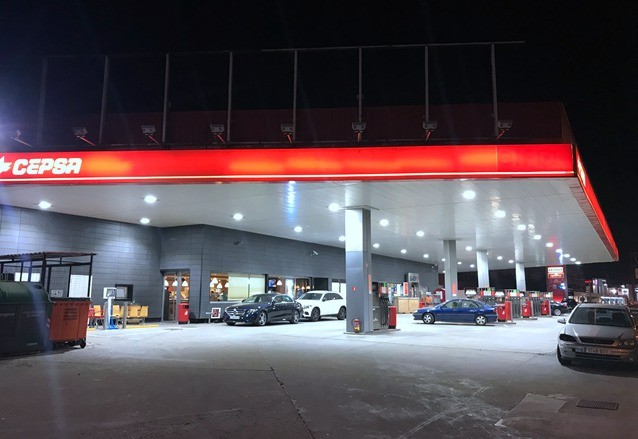

LED Gas Station Light Project In Nigeria
