LED Parking Lot Light Project in Ecuador

The bus parking lot light project in Ecuador was finished in 2017. This project chose ZGSM manufactured 240W ZGSM H series LED High Bay Light with 5700K and 110 degree beam angle. The working voltage of this project is 347VAC, so we equip the parking lot light with Inventronics high voltage drivers, which could wokr under 249V~528VAC. The good lighting affect could improve both the passenger and driver experience.


Product Details

240W LED High Bay Light, Model: ZGSM-GCD240H, 347V high voltage, 5700K 110degree, 80pcs+


Video





Project Photos

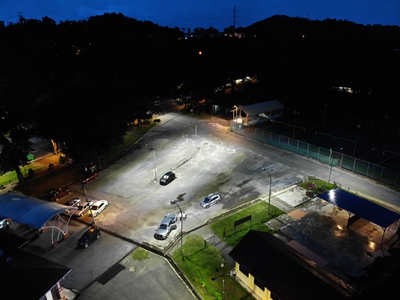

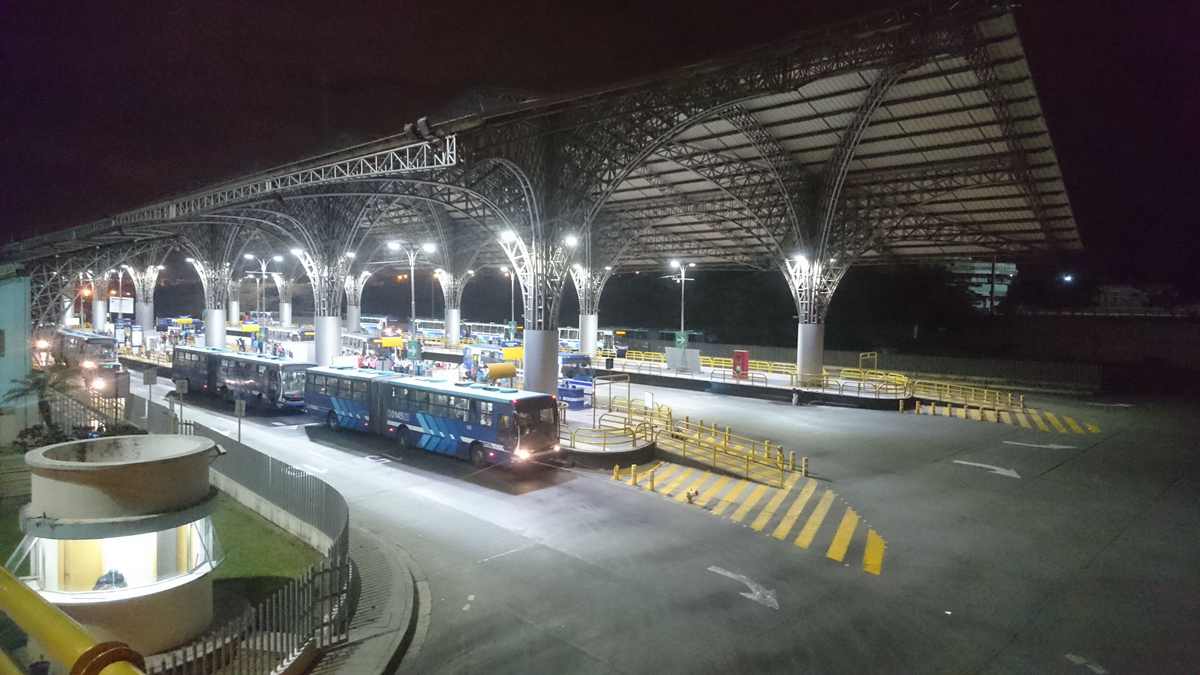

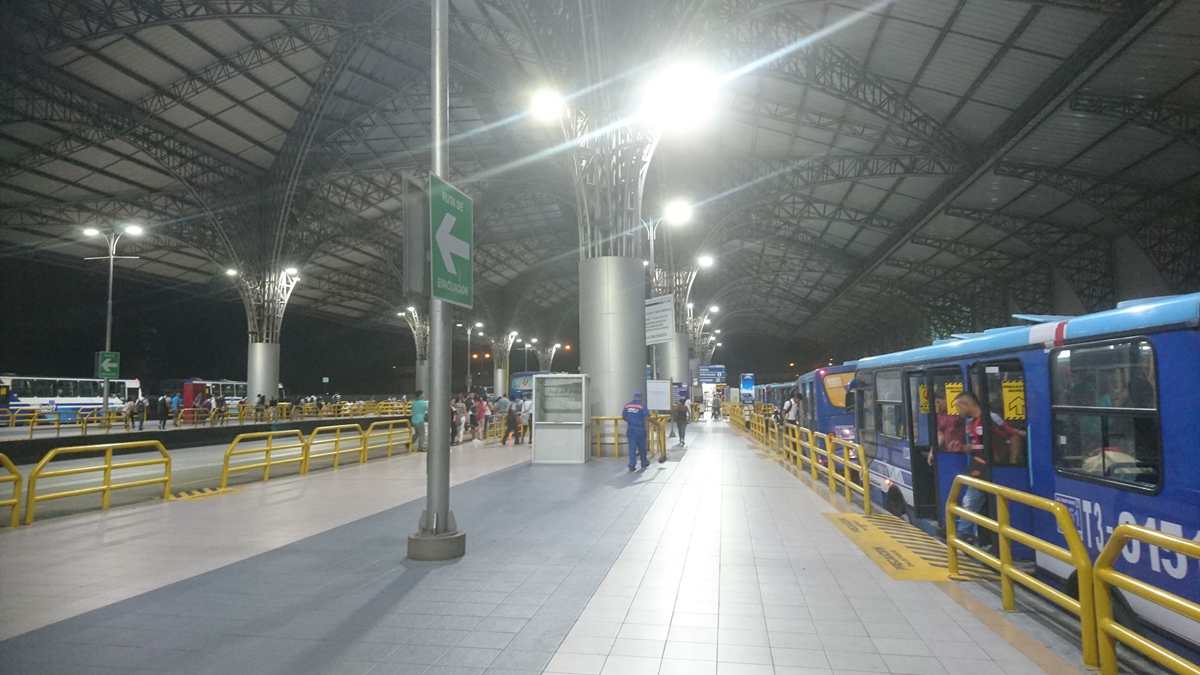

LED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in Ecuador


Specification


ModelZGSM-GCD240H
LED BrandLumileds LUXEON® TX
Driver BrandMeanwell HLG series
Norminal Wattage240W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output26400 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years



Download


Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf


Related Products


LED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in Ecuador

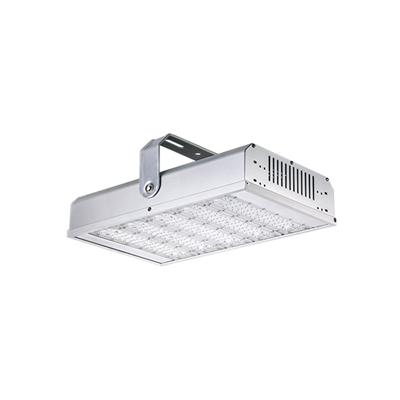

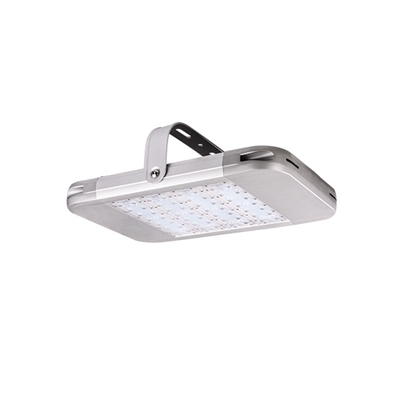

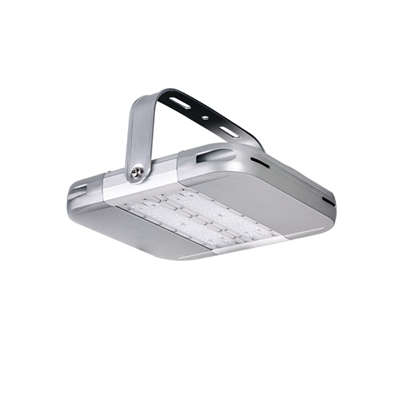

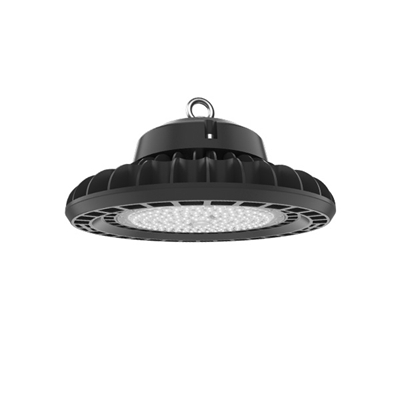

IP66 IK10 160w UL High Bay Light100W Modular Design Low Bay Lighting200W LED UFO Light
LED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in Ecuador

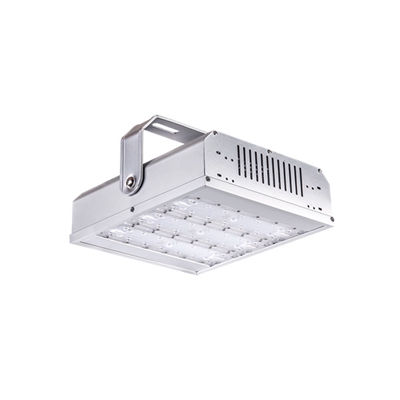

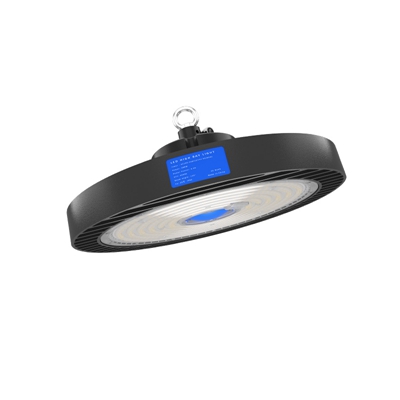

120W UL Certified High Bay Lighting360W Workshop LED LightUFO High Bay 150W With Motion Sensor


Related Projects


LED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in Ecuador

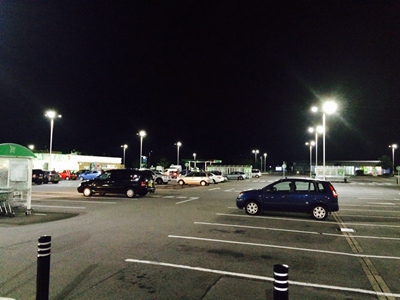

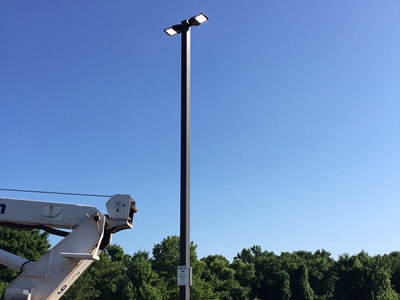

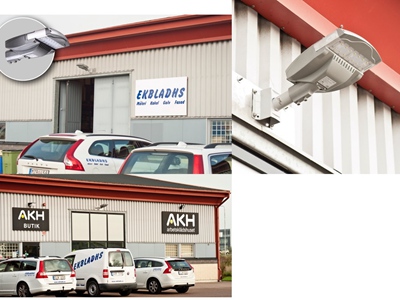

LED Parking Lot Light Project in The UKLED Parking Lot Light Project in SwedenLED Parking Lot Light Project in The USA
LED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in EcuadorLED Parking Lot Light Project in Ecuador

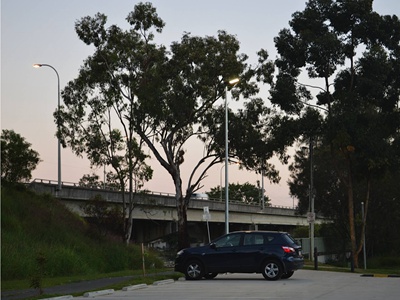

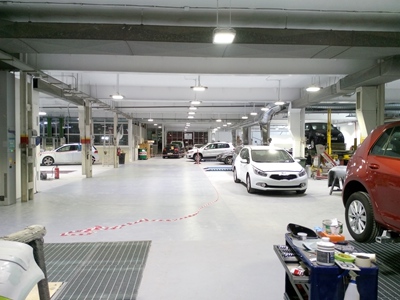

LED Parking Lot Light Project in AustraliaLED High Bay Light Project in Spain

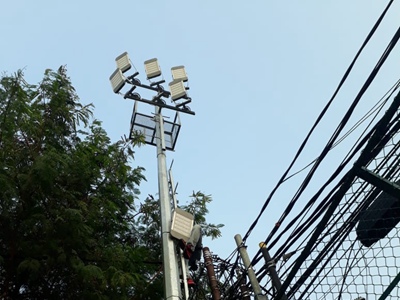

LED Flood Light Project in Indonesia


Related Blog


LED Parking Lot Light Project in Ecuador

        How To Choose LED Parking Lot Light?


People Also Ask


  1. What is LED parking lot lighting?

    Outdoor lighting that is often mounted on poles and located in parking lots is known as parking lot lighting. For safety, security, and vehicle identification, parking lot and parking area lighting applications require broad, homogeneous illumination.


  2. What is the best choice: LED, fluorescent or CFL?

    LED lights have a mild dimming effect and do not flicker. LEDs also have the ability to turn on instantly in any setting and under any weather conditions. Fluorescent or compact fluorescent lights (CFLs), on the other hand, are not dimmable and frequently flicker.

    In the above quiz, you'll also find inside information about various LED light advantages. As a result, LED is clearly superior to fluorescent and CFL lighting.


  3. Which kind of LED lights are best for parking lot lighting?

    LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.
