UL certified LED High Bay Light

Home  /  Products / LED High Bay Light / UL certified LED High Bay Light
  • IP66 IK10 240w UL certified LED Low Bay Lighting
  • IP66 IK10 240w UL certified LED Low Bay Lighting
  • IP66 IK10 240w UL certified LED Low Bay Lighting
  • IP66 IK10 240w UL certified LED Low Bay Lighting
  • IP66 IK10 240w UL certified LED Low Bay Lighting

IP66 IK10 240w UL certified LED Low Bay Lighting

ZGSM is a professional LED lighting manufacturer, only high bay lights or LED Low Bay Lighting have three types: round (UFO) high bay light fixtures, linear high bay lights, modular bracket industrial and mining lights, in addition to high bay lights, we also have street lights, flood lights, stadium lights Lamps, recessed lights, solar lights and a series of LED lighting.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

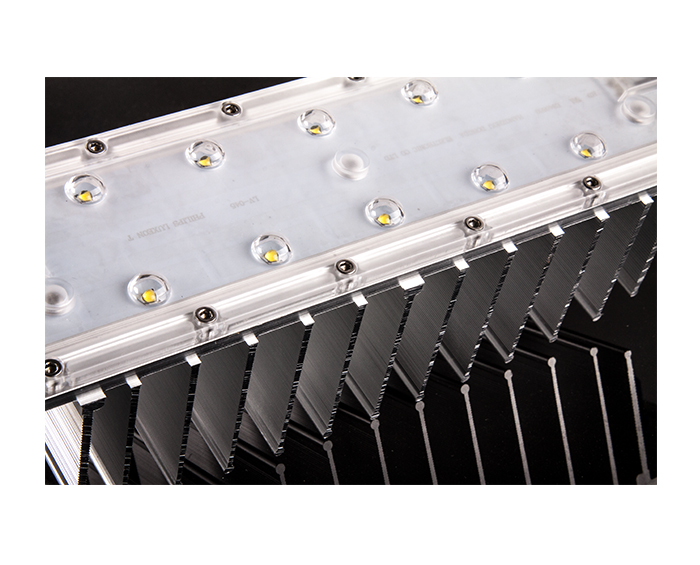

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD240H
LED BrandLumileds LUXEON® TX

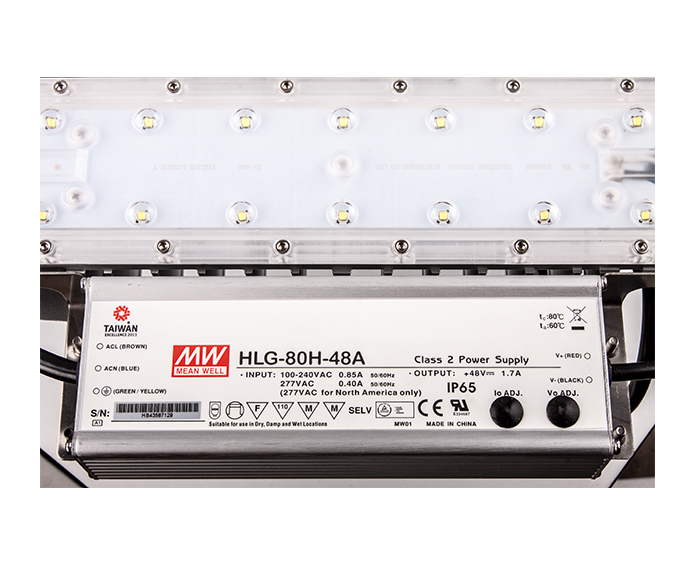

Driver BrandMeanwell HLG series
Normal Wattage240W
LED Module Quantity6 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output26400 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


FAQ

What is a low bay light?

Low bay lights are used to illuminate areas with lower ceilings 12-20 feet from the floor. The low-bay lighting option has a diffuser at the bottom of the luminaire to reduce the strong reflections that may be caused by lower ceilings. The result is more natural and pleasant light in a room with low ceilings, whether at work or relaxing at home.


What are the different types of high bay light?

ZGSM's LED lights are available in a variety of shapes and sizes, each offering a different light quality and coverage to meet your needs. The type of minute lamp you choose depends on your specific space and purpose. ZGSM's LED luminaires offer different beam angles, allowing you to choose the best light shape to best illuminate your space. Here are some of the most popular LED luminaire styles for high bay lights.
