160w Modular Design Linear LED High Bay

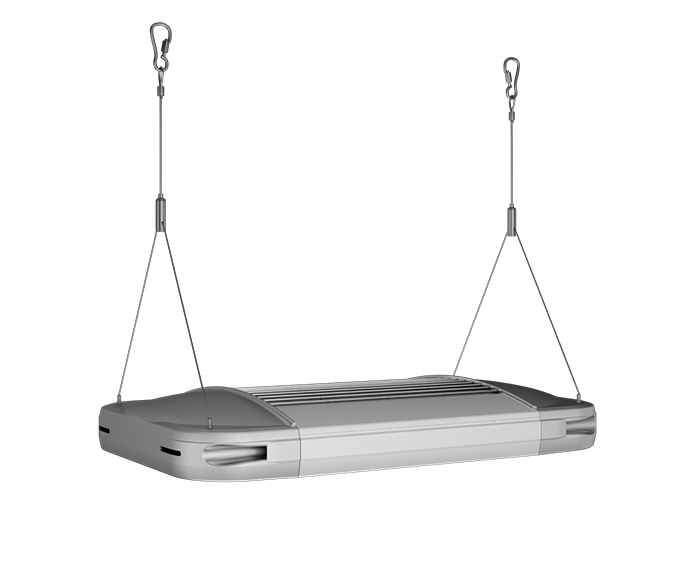

Linear commercial industrial and high bay LED lights take the shape of a rectangle and project light in a linear rectangular pattern. This makes them ideal for large open spaces with aisles, such as car compartments, warehouse aisles, large shopping malls, and retail aisles. Linear LED High Bay can be mounted on the ceiling or suspended from a chain to increase lighting close to the floor.



Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

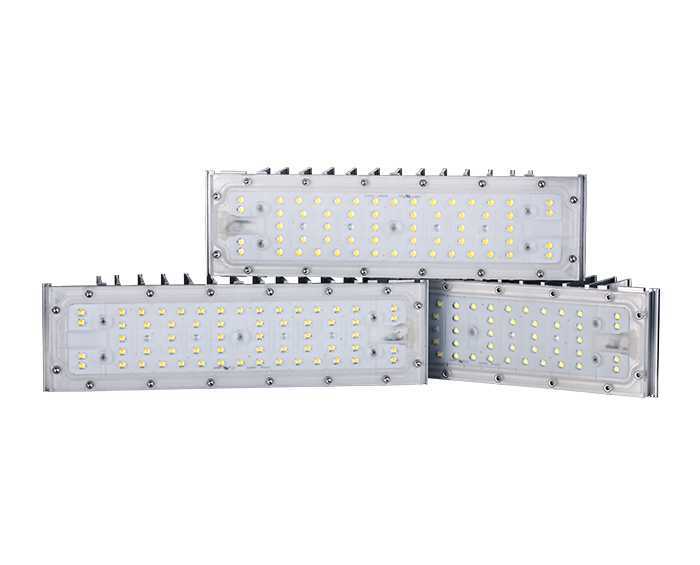

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage160W
LED Module Quantity4 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output22400-26400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


What are linear high bay lights?

Linear high-bay luminaires are used to illuminate large indoor areas with higher ceilings (typically 20 to 45 feet from the floor). The large space between the ceiling and the floor requires linear high bay lamps to provide high lumen output, and light needs to be focused downward from the luminaire.

What is a better PIR or microwave sensor?

PIR with microwave sensor

PIR sensors are objectively neither better nor worse than microwave sensors. Both sensor types have advantages and are better suited to different spaces and tasks. Lamps with PIR sensors are often best suited for use as safety lamps.

What is the difference between microwave sensors and motion sensors?

  •  Microwave sensors have higher coverage than PIR sensors.

  •  Microwave sensors have a continuous detection area, while PIR sensors have a slotted detection area. As a result, the PIR sensor may miss an object.
