UL certified LED High Bay Light

Home  /  Products / LED High Bay Light / UL certified LED High Bay Light
  • 120w LED High Bay Lights
  • 120w LED High Bay Lights
  • 120w LED High Bay Lights
  • 120w LED High Bay Lights
  • 120w LED High Bay Lights

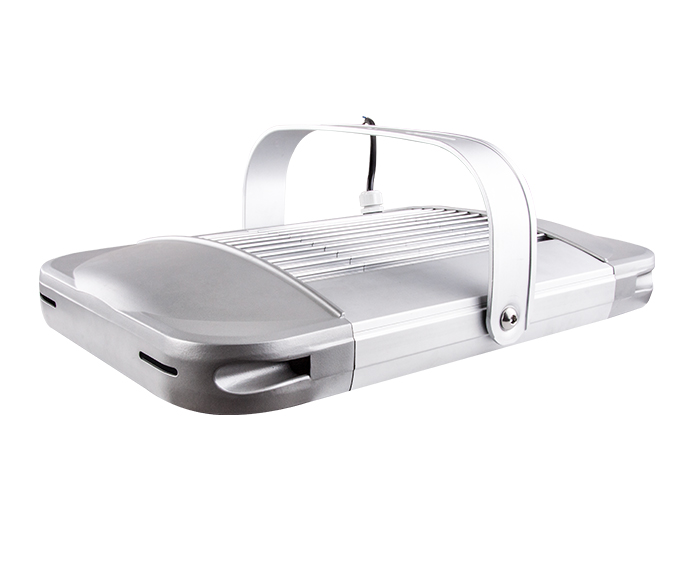

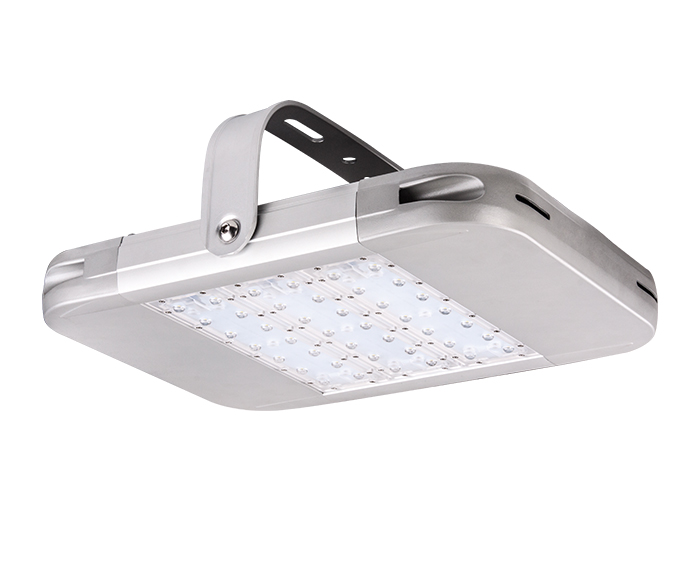

120w LED High Bay Lights

120W LED High Bay Lights are luminaires, typically LED, mounted at least 15 feet above the floor and designed to illuminate large areas with minimal glare. Adjustable brackets to meet any mounting angle, modular design for easy installation and maintenance. Motion sensor or Smart control optional

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD120H

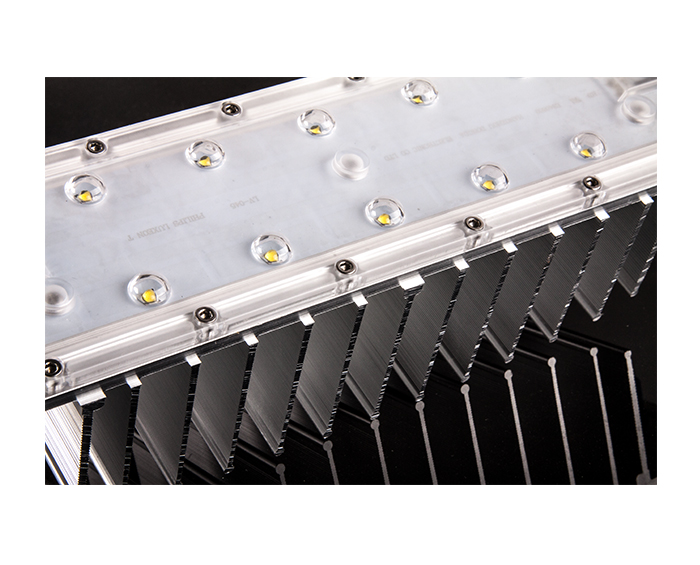

LED BrandLumileds LUXEON® TX

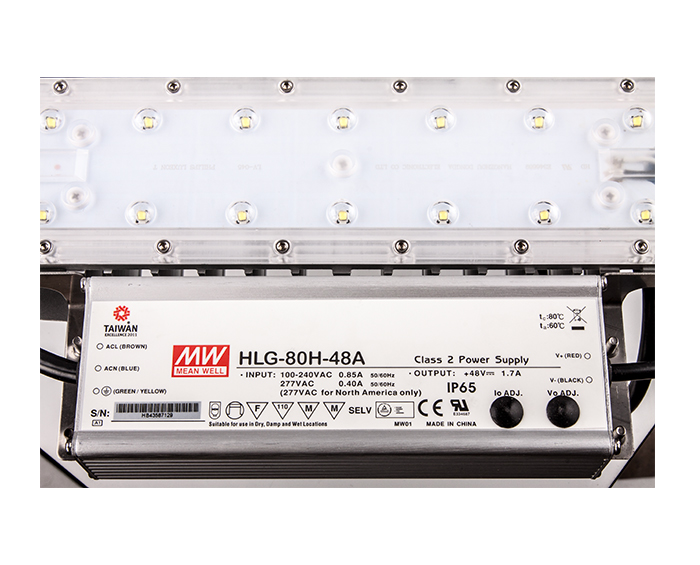

Driver BrandMeanwell HLG series
Normal Wattage120W
LED Module Quantity3 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110 lm/w
Lamp Rated Lumen output13,200 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What wattage LED high bays should I get?

Ceiling HeightUse a fixture rated
Over 40 feet40,000 lumens & up
30 to 40 feet30,000 to 39,000 lumens
20 to 30 feet20,000 to 29,000 lumens
15 to 20 feet15,000 to 19,000 lumens


Where can you use the high bay light?

Whenever it is necessary to illuminate a large indoor space, high-bay lighting is usually suitable. Consider spaces such as manufacturing facilities, stadiums, warehouses, large department stores, factories, etc.; These facilities are usually large and cover a lot of vertical and horizontal space.
