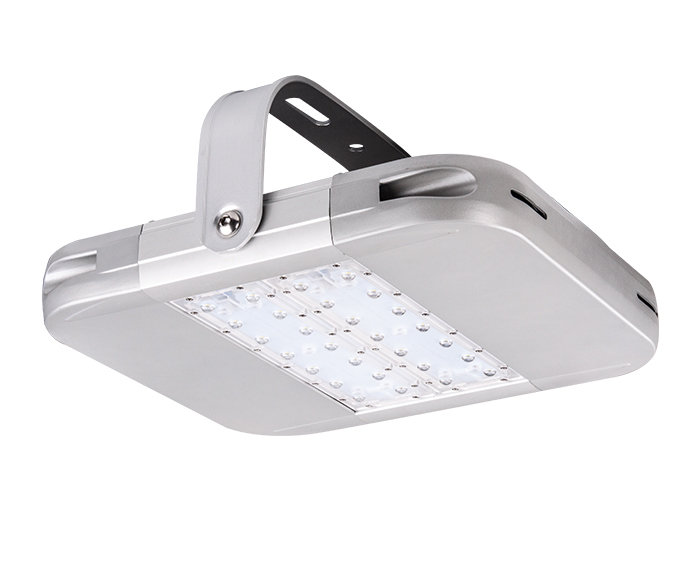

UL certified LED High Bay Light
Series H LED High Bay Light
Model：
ZGSM-GCD80H
Application：
Warehouse | Workshop | Garage | Billboard | Area | Building
1. Wide power range: 40W~360W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement and maintenance.
4. High Lumen output up to 165lm/ w with high quality LED chips.
5. Various applications with different mounting Accessories.
6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
7. Designed to last at least 100, 000 hours at L70.
8. Multiple lighting distributions are available.
| Model | ZGSM-GCD80H |

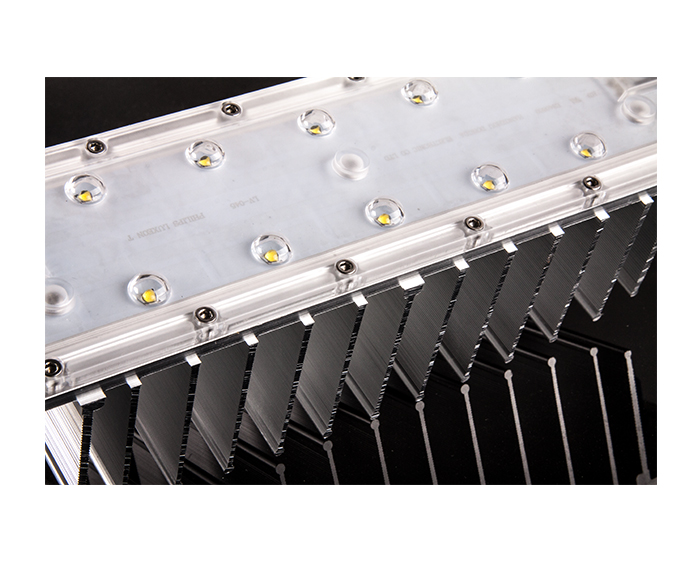

| LED Brand | Lumileds LUXEON® TX |

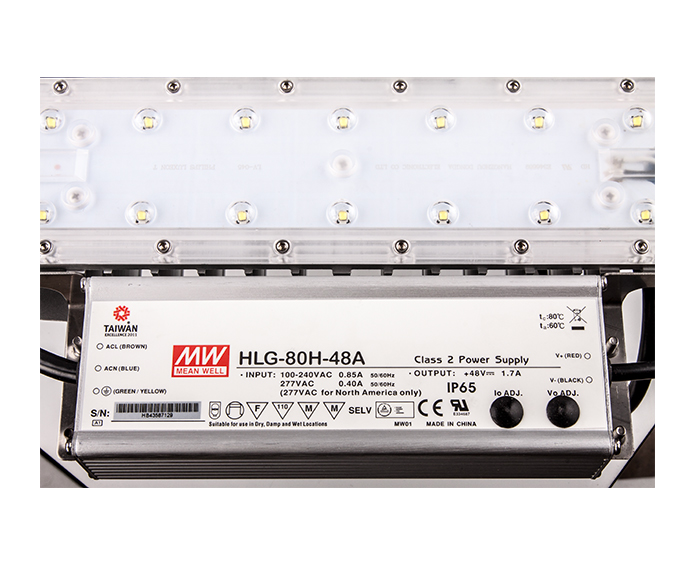

| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110 lm/w |
| Lamp Rated Lumen output | 8800 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
| Fixture Dimension | 366 x340 x156 mm |
| Fixture Weight | 4.3 kg /9.5 lbs |
| Packing Dimension | 415 x365 x160 mm |
| Packing Weight | 5.1 kg /11.2 lbs |
