LED Garden Light Project In Saudi Arabia

The LED garden light project in Saudi Arabia was completed in March 2019. It selected the ZGSM 37W L series LED street light (ZGSM-LD37LMA) with a light distribution of Type 5S to mount on a 3-meter pole. This solution achieved a bright and uniform lighting effect. ZGSM designed four kinds of installation ways for our L series street LED light: the post top mounted, the pendant mounted, the side entry mounted and the suspended mounted. Among them, the post top mounted version is designed for outdoor lightings, such as garden lighting, parking lot lighting, city street lighting, and so on.


Product Details

37W L series LED Garden Light, ZGSM-LD37LMA, MeanWell HLG Driver, Lumileds 3030 2D chips, 3000K, type 5S, Installation Height: 3m; Qty: 24pcs


Video

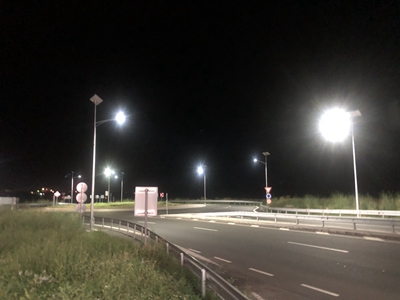

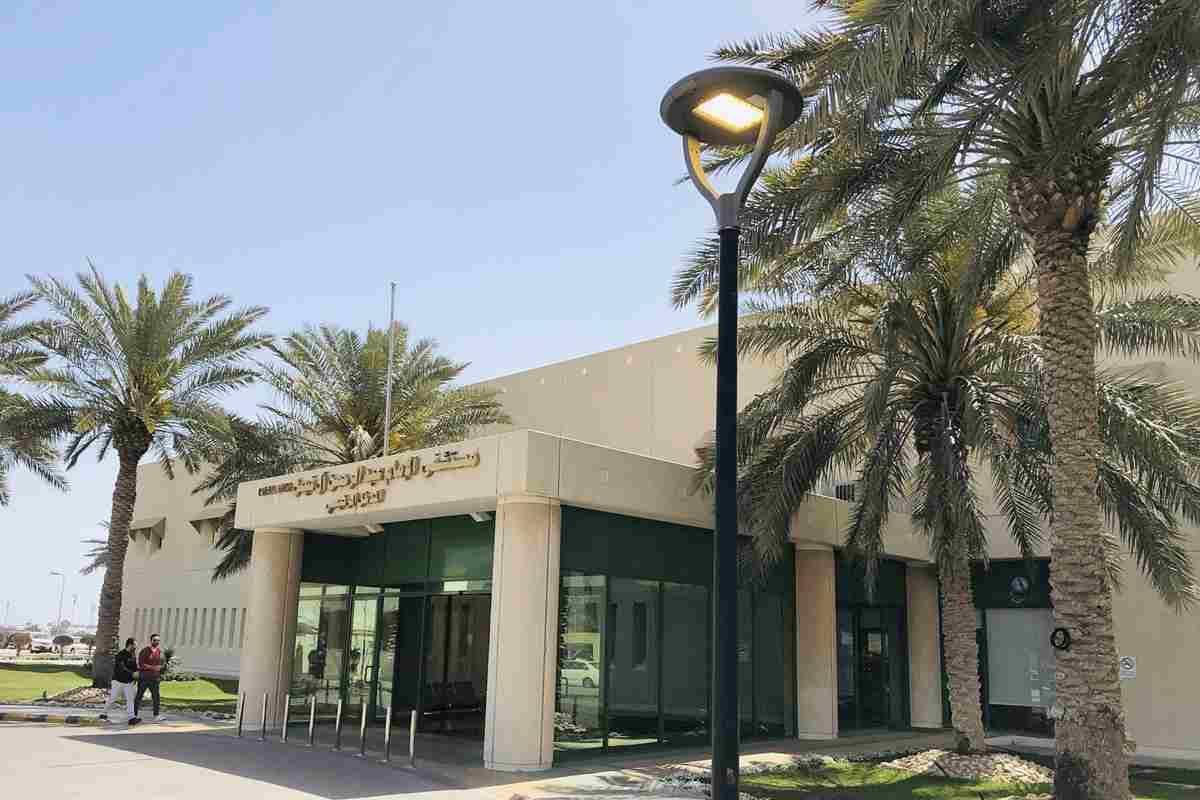

Project Photos


LED Garden Light Project In Saudi Arabia


Specification


ModelZGSM-LD37LMA
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage37W
LED Chip Quantity3030: 96pcs 5050: 48pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency115-135 lm /w
Lamp Rated Lumen output4255-4995 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC,CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years


Download


Installation Manual_StreetLight_L.pdf

Data Sheet_L_StreetLight.pdf


Related Products


LED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi Arabia

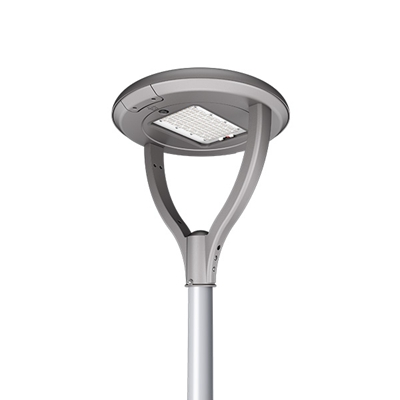

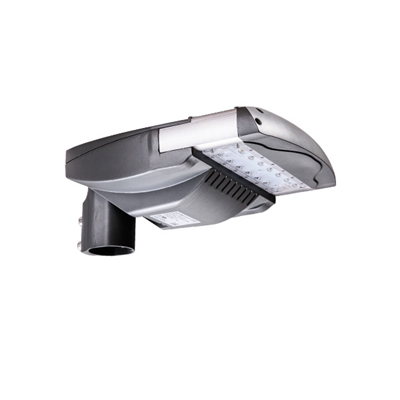

ENEC Certified 37W Tool-less LED Garden Light120W Tool-less LED Post Top Light FixtureENEC Certified 56W Outdoor Post Top Lights
LED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi Arabia

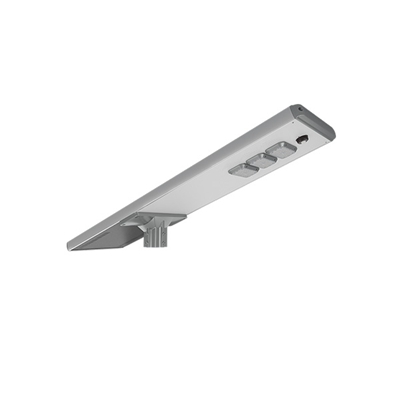

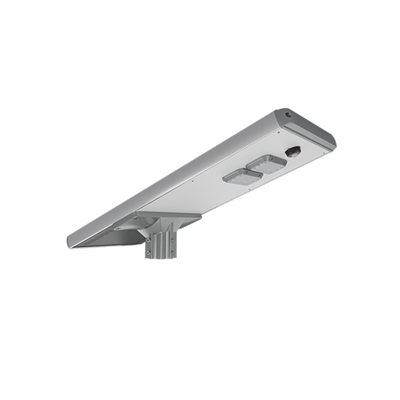

Lithium Battery 50W Solar Powered Garden LightsIntelligent Induction 60w Solar LED Garden LightUL and DLC Listed 35W LED Garden Light


Related Projects


LED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi Arabia

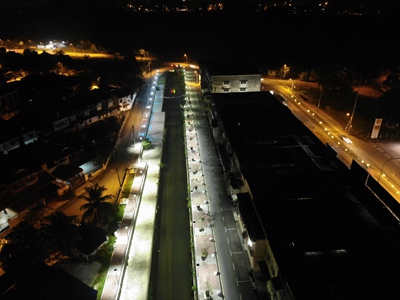

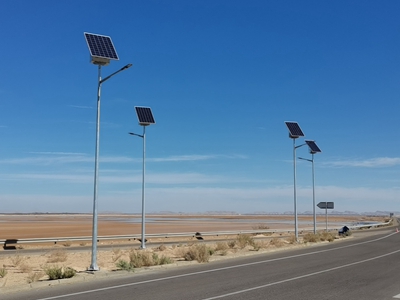

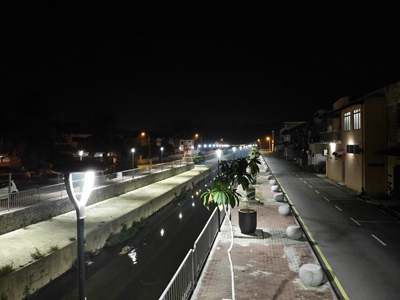

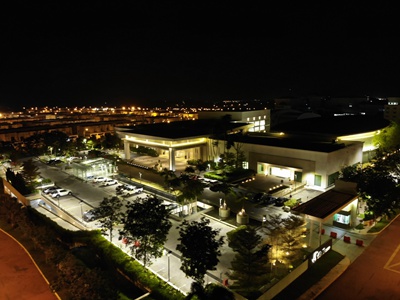

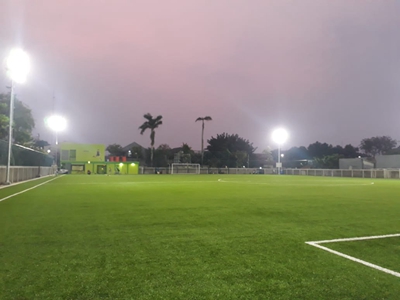

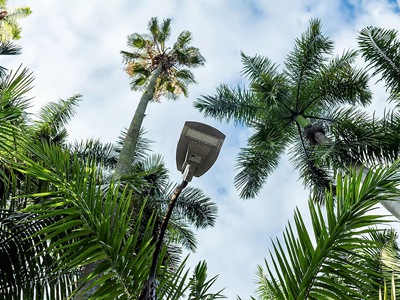

LED Garden Light Project In ColombiaLED Garden Light Project In MalaysiaSolar Street Lighting Project In Cameroon
LED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi Arabia

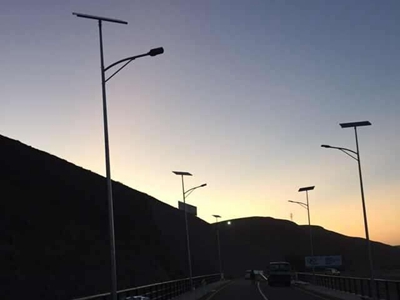

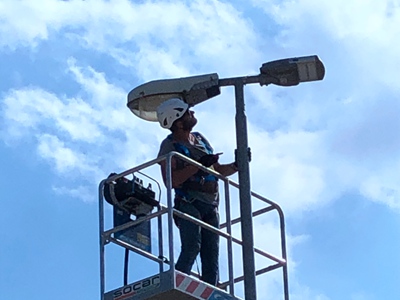

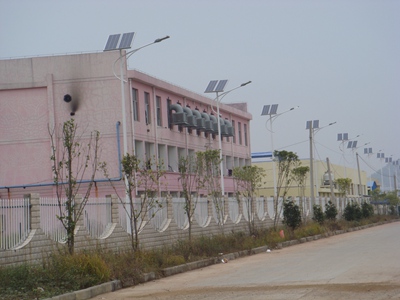

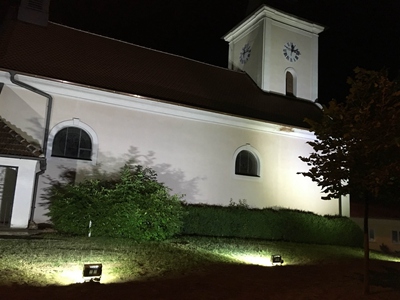

Solar Street Lighting Project In ChinaLED Flood Light Project in IndonesiaOutdoor Flood Light Project In Czech


Related Blogs


LED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi Arabia
How To Choose Led Street Lights Correctly?LED Street Light VS Ordinary Street LightCorrect Installation & Use Of LED Street Lights
LED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi ArabiaLED Garden Light Project In Saudi Arabia

Solar Led Street Lamp Common Fault Repair

(Part 1)

Solar Led Street Lamp Common Fault Repair

(Part 2)

Application Analysis of Solar LED Street Lamp


People Also Ask


  1. Which kind of LED lights are best for Garden lighting?

    LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for garden lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.


  2. What are the benefits of LED solutions?

    · Significant energy savings - more than 60% as compared to typical street lighting

    · Good color rendering, which makes colors appear more natural.

    · Long service life - up to 100,000 hours, resulting in lower maintenance costs.

    · White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.

    · When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.
