ENEC certified LED Garden Light

Home  /  Products / LED Garden Light / ENEC certified LED Garden Light
  • ENEC certified 120w tool-less LED Post Top Light Fixture
  • ENEC certified 120w tool-less LED Post Top Light Fixture
  • ENEC certified 120w tool-less LED Post Top Light Fixture
  • ENEC certified 120w tool-less LED Post Top Light Fixture
  • ENEC certified 120w tool-less LED Post Top Light Fixture

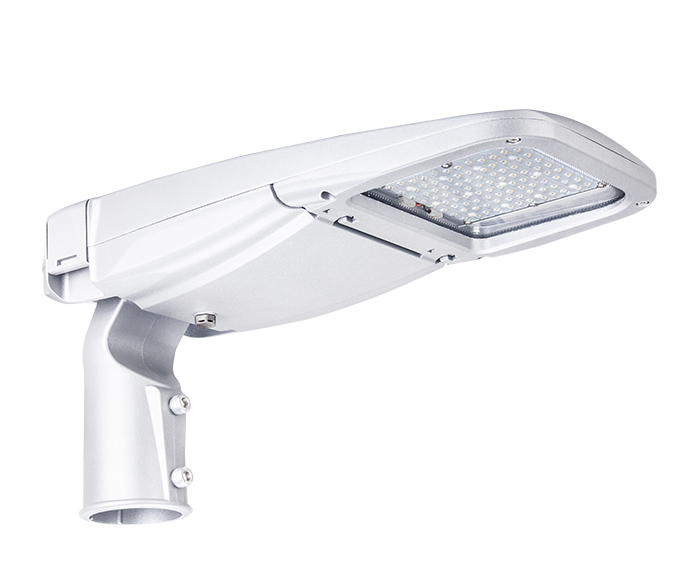

ENEC certified 120w tool-less LED Post Top Light Fixture

LED Post Top Light Fixture is often used to illuminate pedestrian and vehicle use areas and safe areas, Our lamp is multi-purpose, and choosing different accessories can also achieve Pendant Mounted, Side Entry Mounted, Suspended Mounted, Meet the needs of different environments.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 27W~120W

2. Special circuit design, single LED damage won't affect others' normal work

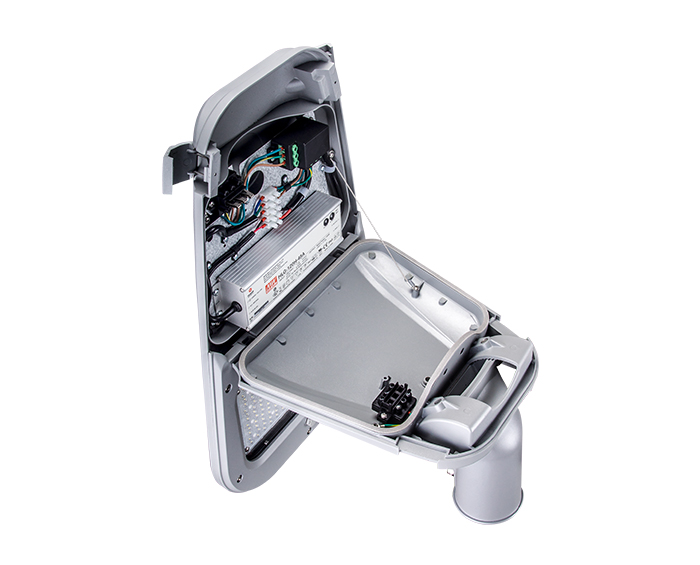

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Breather ensures air balance inside and outside of the lamp

7. High Lumen output up to 150lm/w with high quality LED chips

8. Post Top Mounted, Pendant Mounted, Side Entry Mounted, Suspended Mounted for optional.

9. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell

10. Designed to last at least 100,000 hours at L70

11. Multiple lighting distributions are available

12. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

13. 7 years limited warranty available.


Specifications

ModelZGSM-LD120LMA
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage120W
LED Chip Quantity3030: 168pcs 5050: 84pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency120-130 lm /w
Lamp Rated Lumen output14400-15600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium; TypeV, Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum; Tempered Glass
Pole Fitter Diameter60mm
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey
Warranty7 years

FAQ

How do I choose a post light?

Quick tips

  1. Make sure your rear lights are weatherproof and wear-resistant.

  2. The lamp should be easy to install onto the prepared pillar and install.

  3. The finishes and details of the lighting should reflect the look and feel of your home and blend in with the landscape design.

  4. Use timers or motion sensors to save energy.


What color light is best for Landscape?

Warm White

Warm White (2700K).

Similar to halogen-type landscape lighting, it is the most preferred color temperature for landscape lighting. Psychologically, it is thought to be more welcoming and soothing compared to higher color temperatures.
