LED Parking Lot Light

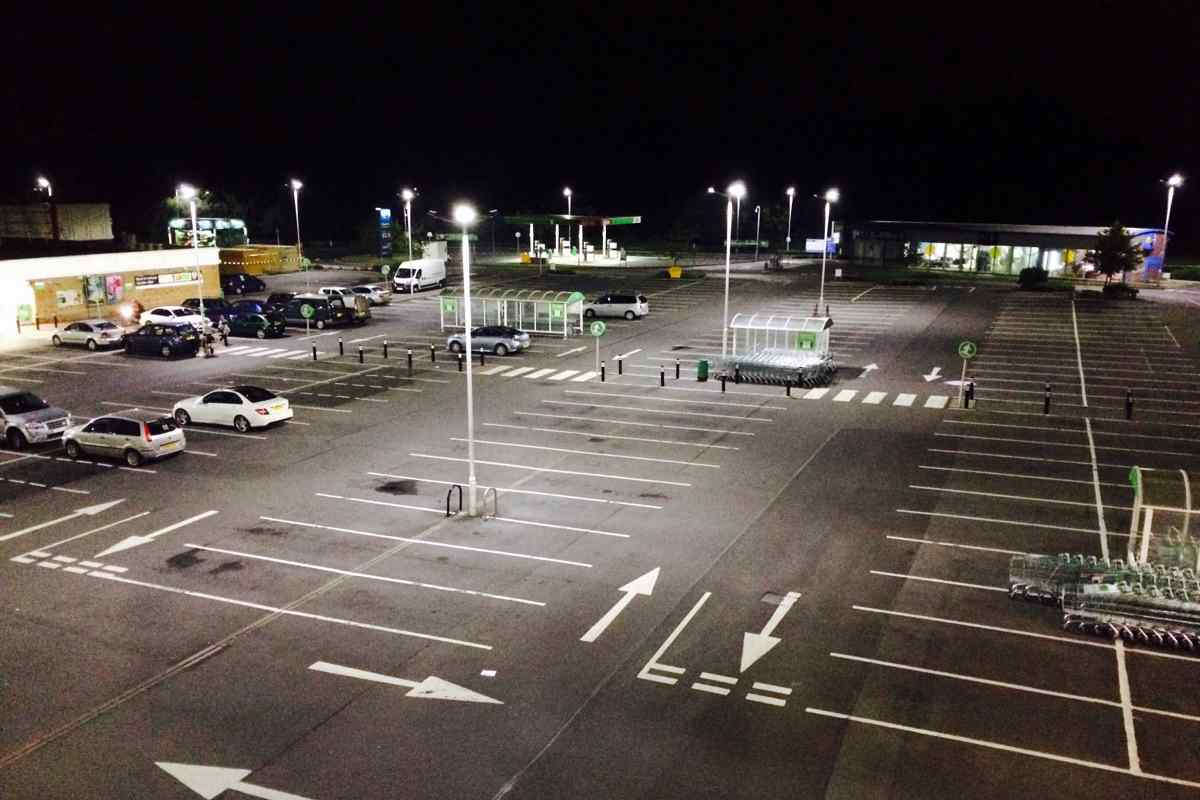

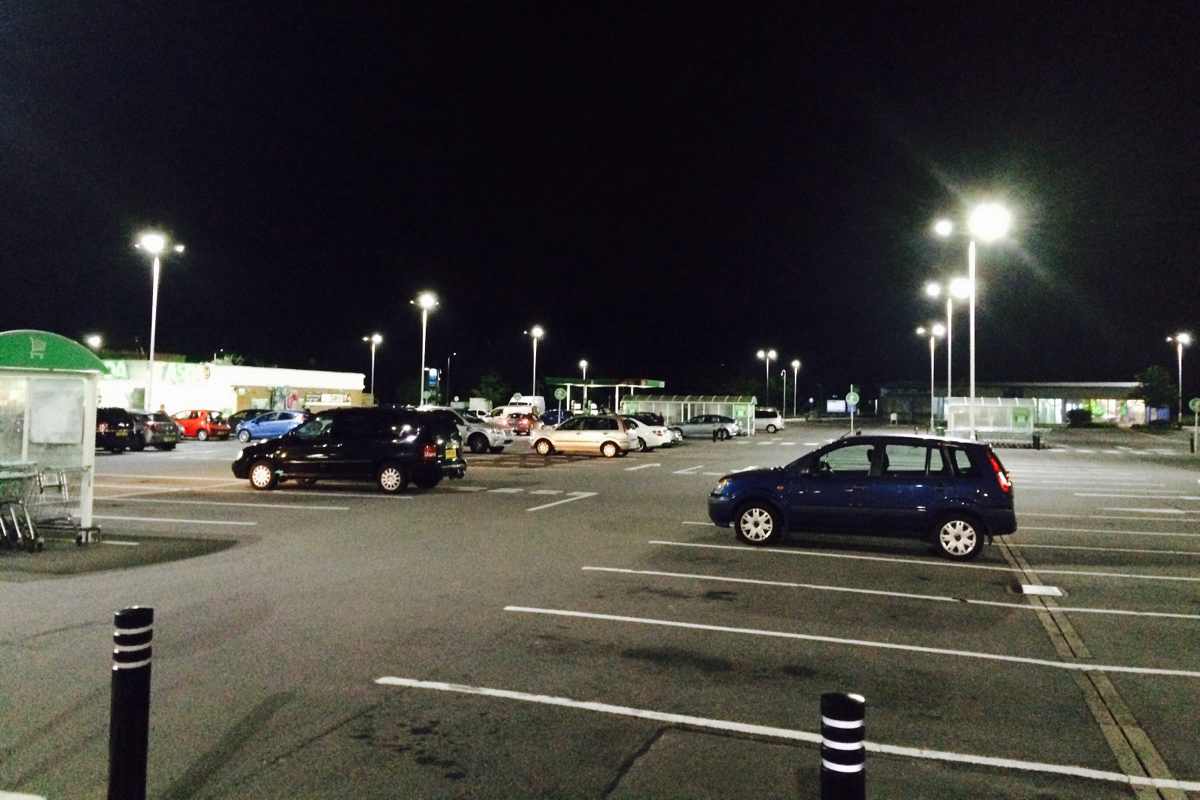

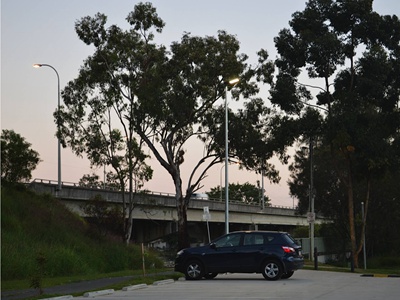

LED parking lot lighting project in the UK, which was finished in 2015. After the DIALux lighting simulation, we offered a solution of 90pcs 80W H series LED parking lot lights to install on 8-meter poles, with three lights on each pole. We choose Type 5S lenses for these models to make the parking lot LED lights could illuminate a wide range with good uniformity. The lighting of the parking lot is much better after installing our H series LED street lights. It's much safer to park cars there, and the risk of theft becomes extremely small. Our client is very satisfied with the improvement of parking lot lighting.

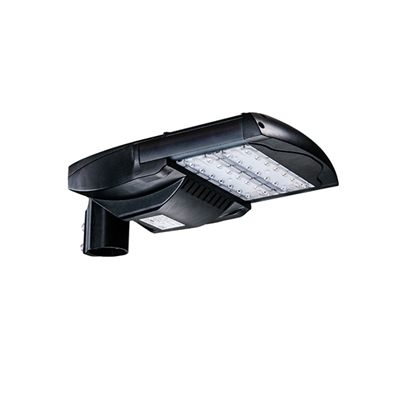

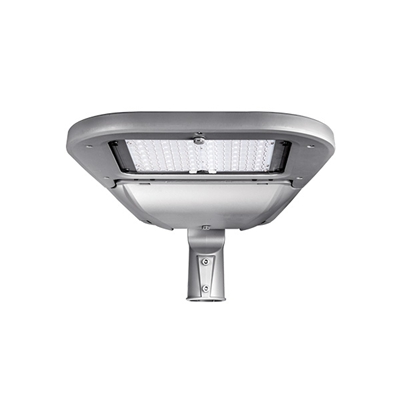

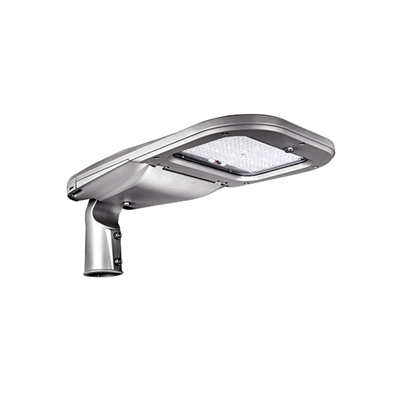

Product: 80W LED Street Light for parking lot
Model No.: ZGSM-LD80H4
LED: Lumileds 3030
Driver: Meanwell
CCT: 5700K
Optics: Type 5S
Pole Height: 8m
QTY: 90 Units
| Model | ZGSM-LD80H4 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 11200-13200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
How To Choose LED Parking Lot Light?
LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.
It depends on the size of parking lot and the height you install the parking lot lights.
Compared to conventional lighting systems, LEDs use up to 75% less energy while producing superior light. While HID (the huge fluorescent lamps that are typically used in parking lots) ranges in power from 400W to 1000W, LED parking lights have an average wattage range of 65W to 400W.
If you don't know how many watts need for your project, pls contact us for professional advice and solutions
For the design, manufacture, and distribution of products, there are standards that have been established by international and regional standardization bodies like CIE, IES, and CEN that are widely regarded as industry best practices. The LED lights manufacured by ZGSM are CE, RoHS, CB, UL, DLC, SAA, ENEC certified. The lighting solutions we provide meet the requirements of these standard.
