LED Parking Lot Light

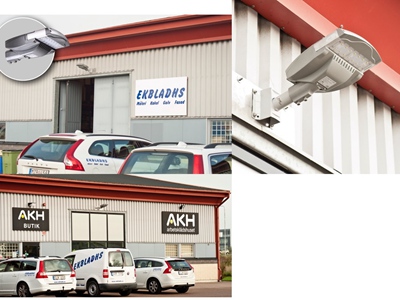

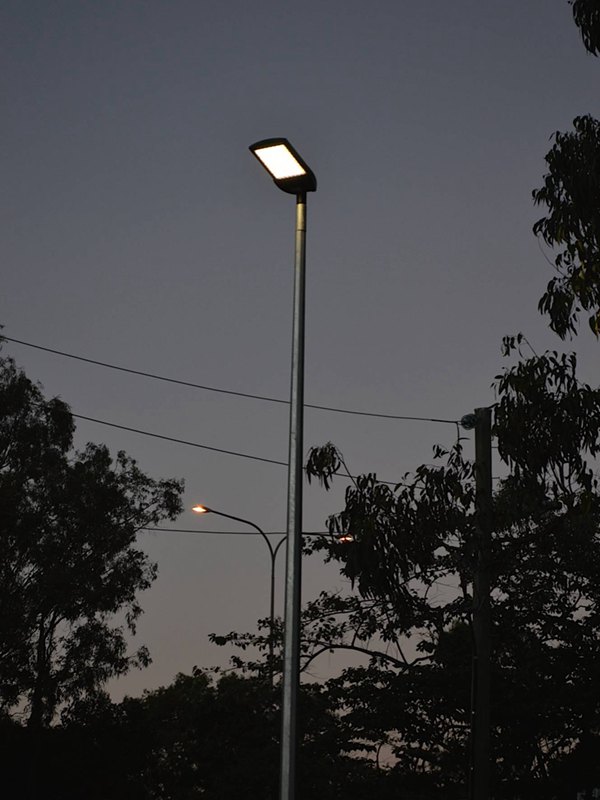

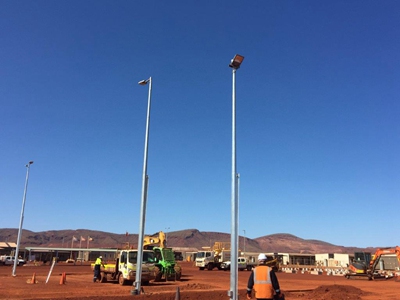

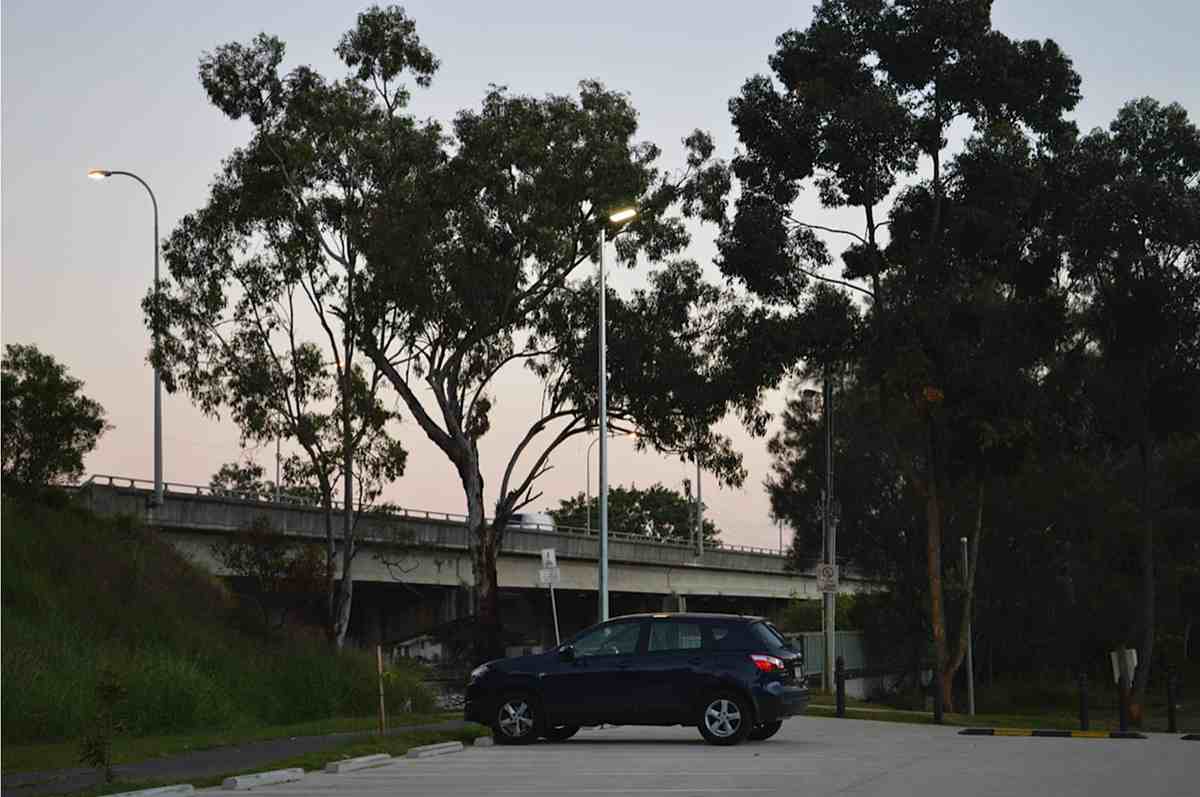

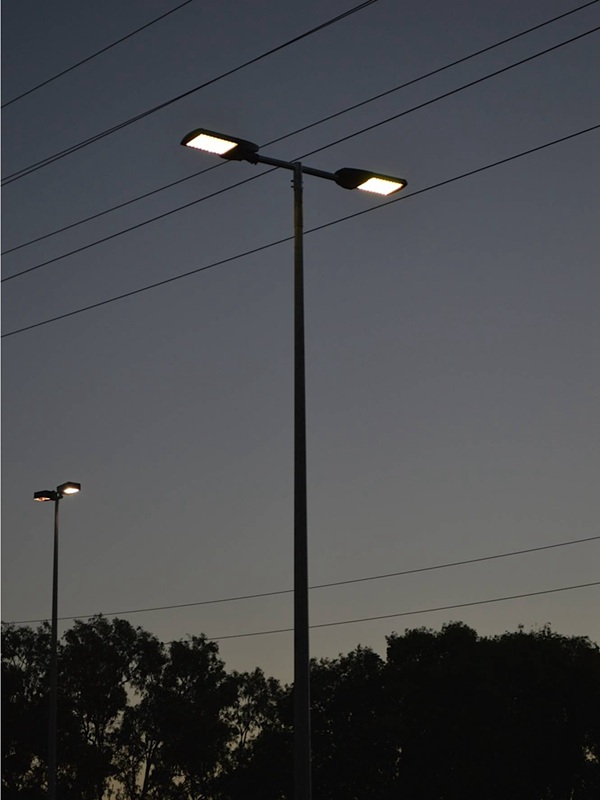

The parking lot LED light project in Australia was finished in 2016, using ZGSM modular design 135W & 165W H series LED street lights with the SAA certificate. H series LED street lights are available to install horizontally on poles with arms and vertically on straight poles without arms, and both directions could adjust by 0-5-10-15 degrees. It also could be mounted on the wall by a mounting bracket to illuminate the wall and the path of the building. This project helps to save energy by more than 40% and makes the lighting condition 30% brighter.

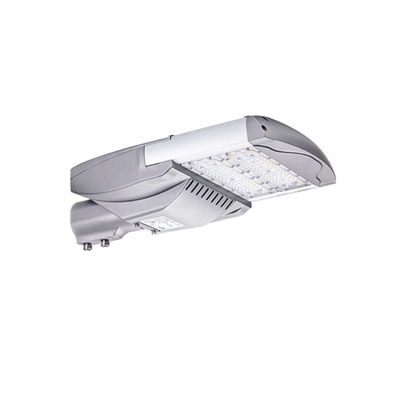

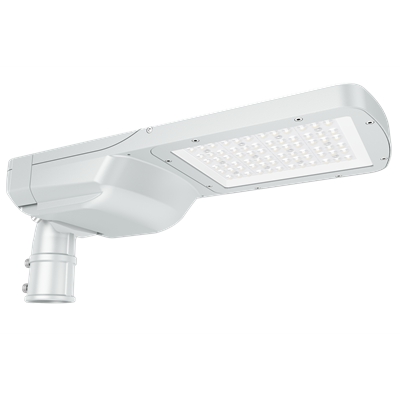

Products: 135W & 165W LED Street Lights
Model No.: ZGSM-LD135H & ZGSM-LD165H
LED: Lumileds Luxeon TX
Driver: Meanwell
CCT: 4000K
Optics: Type 3M
QTY: 600 Units
| Model | ZGSM-LD135H |
| LED Brand | Lumileds Luxeon TX |
| Driver Brand | Meanwell or Inventronics |
| Norminal Wattage | 135W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 14850 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium,TypeV,Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
Data Sheet_LEDStreetLight_H.pdf
How To Choose LED Parking Lot Light?
The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.
Yes! We provide a variety of superior light poles in a variety of designs, colors, and sizes.
More details, pls contact us.
