LED Parking Lot Light

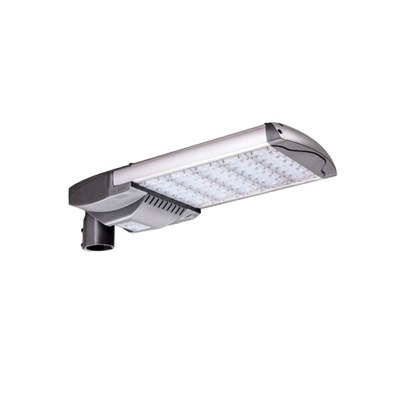

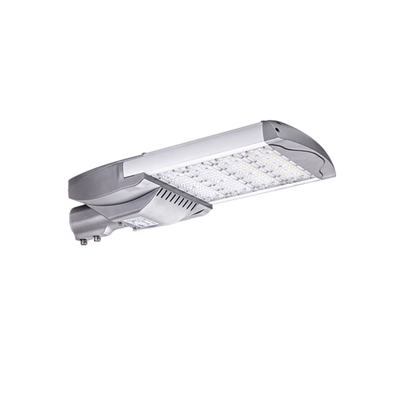

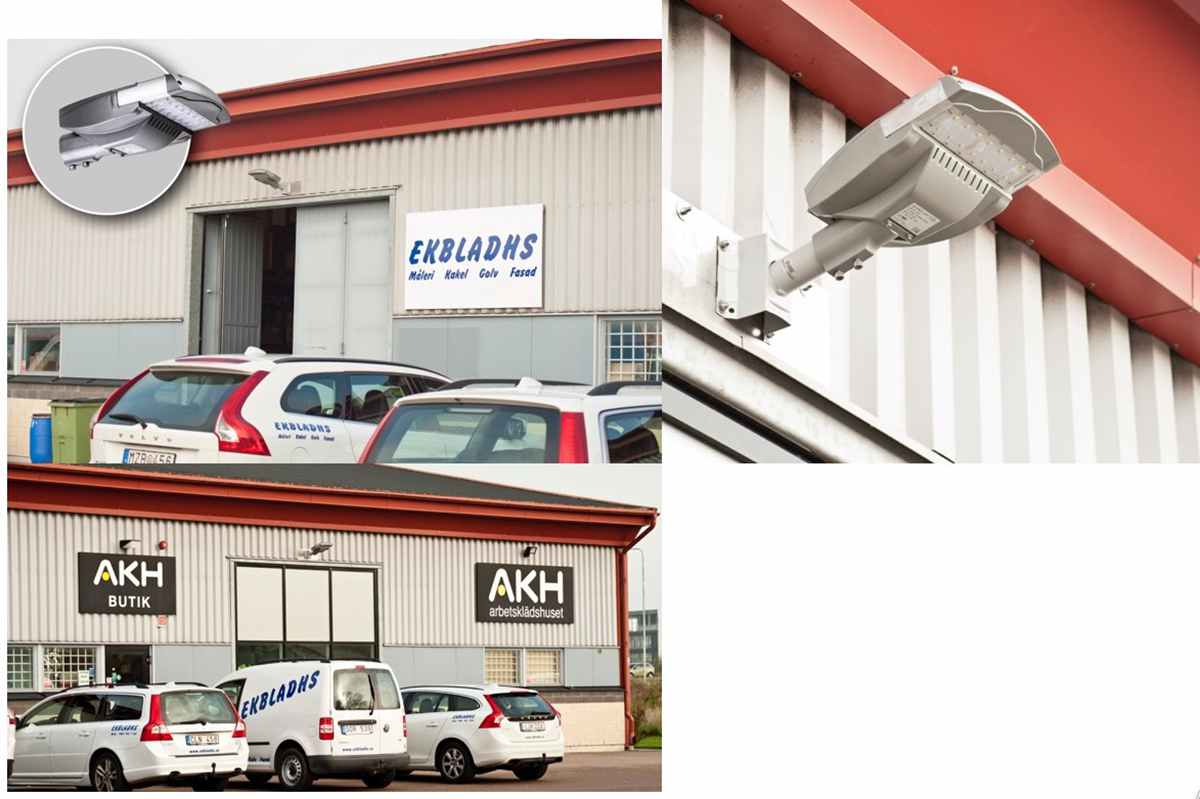

The LED Parking Lot Lighting project in Sweden was finished in 2013. It adopted ZGSM designed and manufactured 35W H series LED street lights. The H series street LED light is equipped with a mounting bracket, which supports to install to poles of sizes from 48mm to 60mm and is available to adjust the mounting angle. The Meanwell drivers we used for LED street lamps could work under 90~305VAC, which has covered the voltage of most countries over the world. The LED street light prices may be higher than HPS lamps. But LED street lights have much higher efficacy, which can help you to reduce energy consumption and electricity bills.

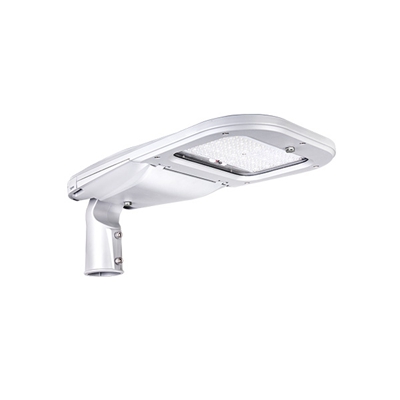

Product: 35W LED Street Light
Model No.: ZGSM-LD35H
LED: Lumileds Luxeon TX
Driver: Meanwell
CCT: 5000K
Optics: Type 3M
QTY: 50 Units
| Model | ZGSM-LD35H |
| LED Brand | Lumileds Luxeon TX |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 35W |
| LED Module Quantity | 1 module |
| Input Voltage | 100-240/277VAC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 3850 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K, or 5700K |
| Optic (IESNA) | Type I Medium; Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80, SAA |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
Data Sheet_LEDStreetLight_H.pdf
How To Choose LED Parking Lot Light?
· Significant energy savings - more than 60% as compared to typical street lighting
· Good color rendering, which makes colors appear more natural.
· Long service life - up to 100,000 hours, resulting in lower maintenance costs.
· White light that is uniform and of good quality. LED lighting helps to make spaces safer by improving facial recognition for security and CCTV cameras.
· When light is not required, LEDs can be muted, resulting in extra energy savings. LEDs can also be networked and controlled remotely by connecting them to sensors and controls.

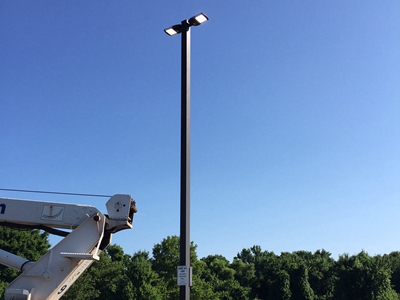

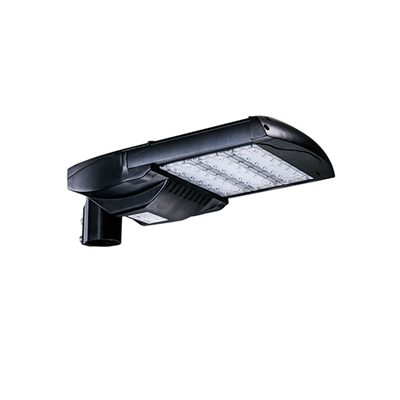

LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.

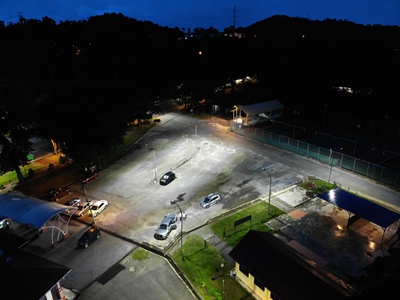

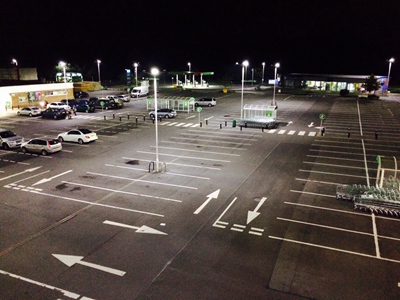

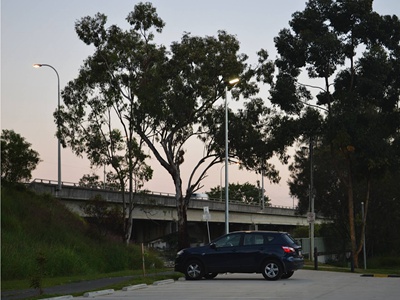

Outdoor lighting that is often mounted on poles and located in parking lots is known as parking lot lighting. For safety, security, and vehicle identification, parking lot and parking area lighting applications require broad, homogeneous illumination.
