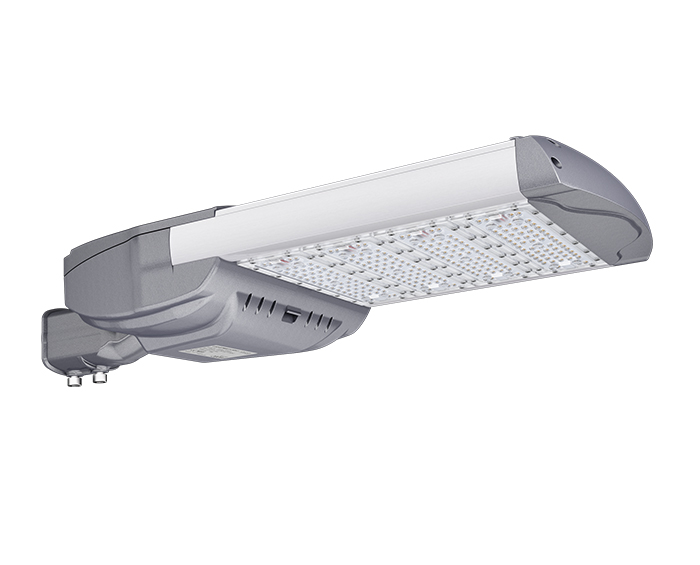

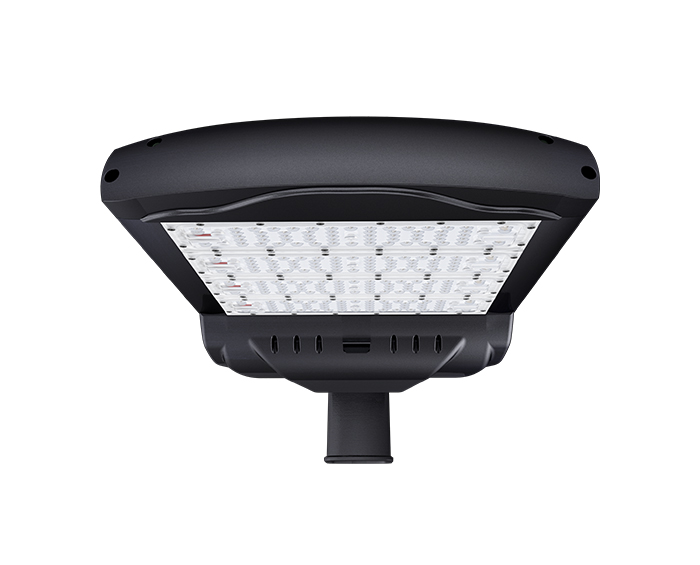

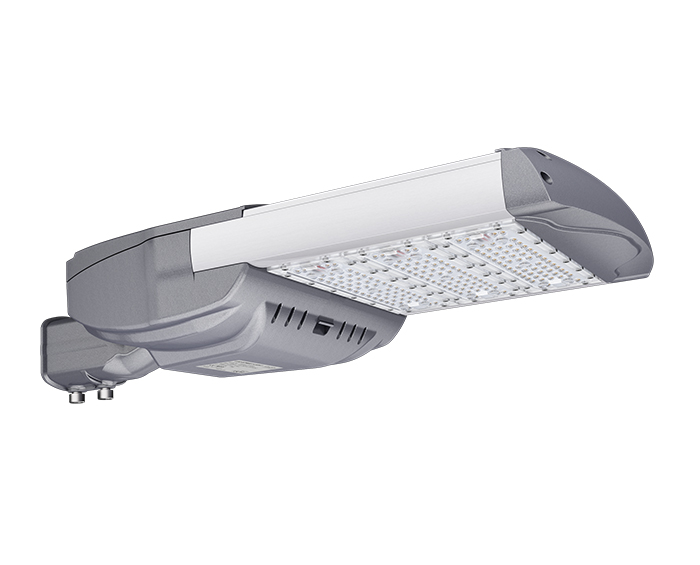

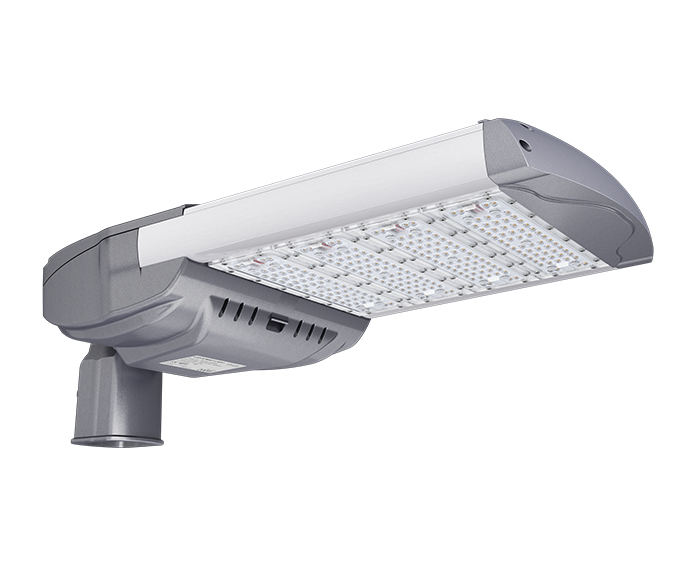

High Lumen LED Parking Lot Light
Series H4 LED Parking Lot Light
Model：
ZGSM-LD160H4
Application：
Street | Road | Highway | Parking lot | Bridge | Path
Key Features
1. Wide power range: 35W~320W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design and tool-less open for easy replacement and maintenance.
4. Power-off protection makes the power automatically off when fixture is opened (optional).
5. Level bubble makes it easy for the installer to adjust the position of the lamp.
6. Breather ensures air balance inside and outside of driver box of the lamp.
7. High Lumen output up to 165lm/ w with high quality LED chips.
8. 1000 hours salt spray test report.
9. Vertical and horizontal installation both available, adjustable by ±15°in both directions.
10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.
11. Designed to last at least 100, 000 hours at L70.
12. Multiple lighting distributions are available.
13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10
14. 7 years warranty
Specifications
| Specifications | |
| Model | ZGSM-LD160H4 |
| LED Brand | Lumileds 3030/5050 |
| Driver Brand | Meanwell or Inventronics |
| Norminal Wattage | 160W |

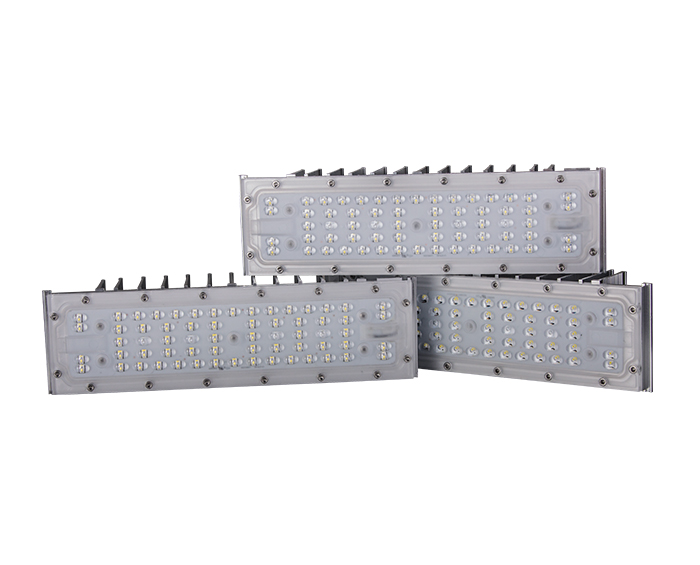

| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 22400-26400 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000K or 4000K or 5000K or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium,TypeV,Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |

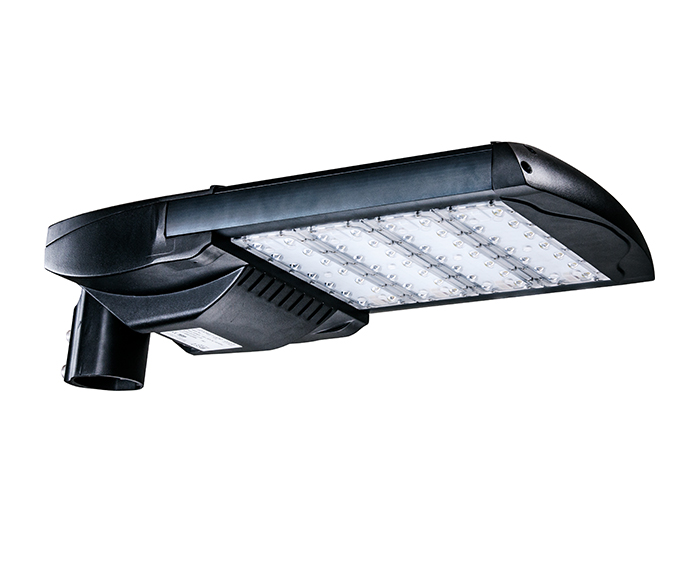

| Color Options | Silver or Black |
| Warranty | 7 years |
Packing Details
| Packing Details | |
| Fixture Dimension | 650x316 x136 mm |
| Fixture Weight | 8.2 kg /18.1 lbs |
| Packing Dimension | 705 x370 x200 mm |
| Packing Weight | 9.6 kg /21.2 lbs |
