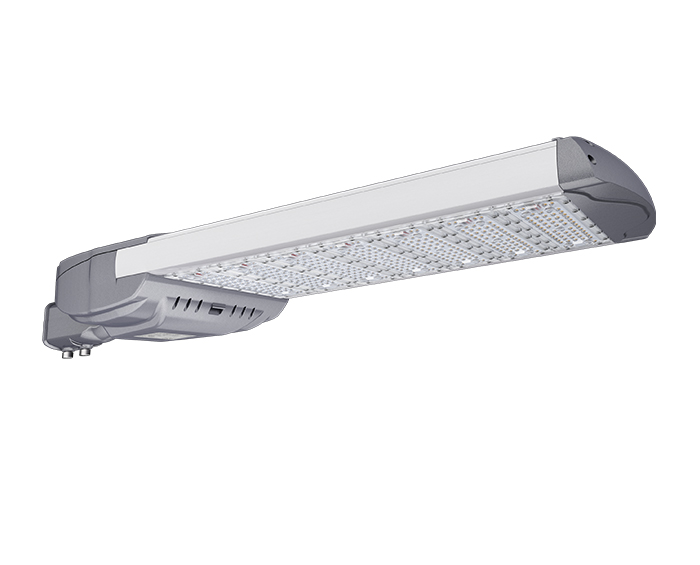

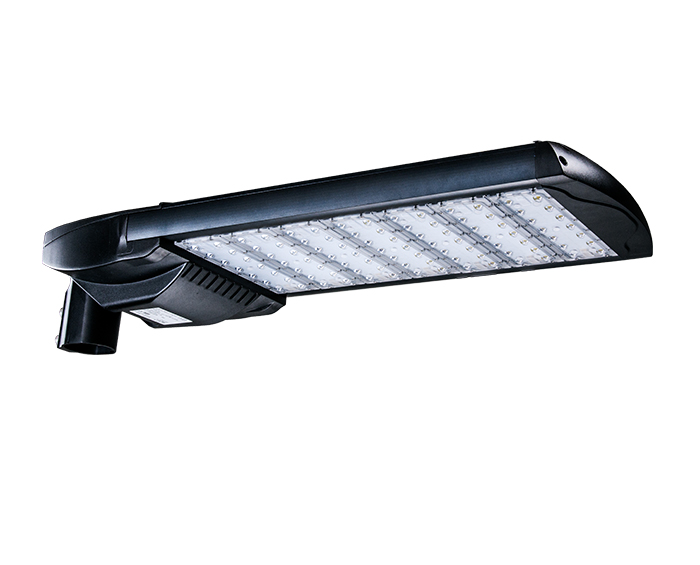

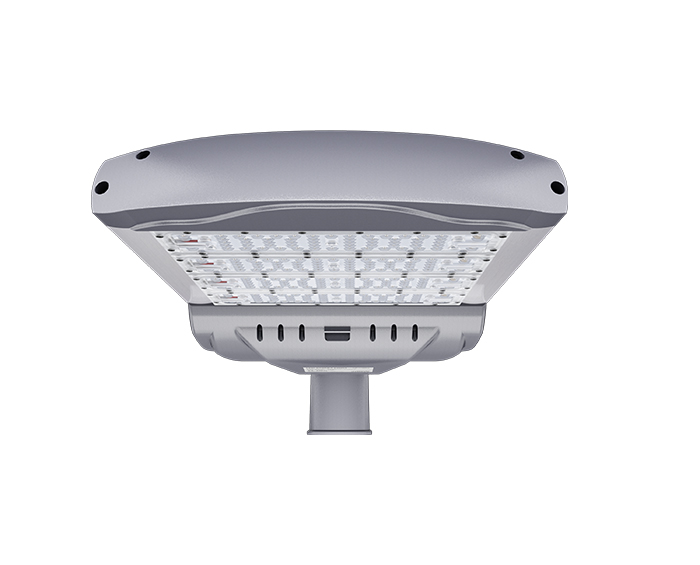

280W LED ShoeBox Light for Parking Lot

ShoeBox Light for Parking Lot is outdoor light that casts maximum light over large areas to improve visibility and help ensure safe navigation for pedestrians. Modular design and tool-less open for easy replacement and maintenance. They're designed to light up parking lots and other large areas.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD280H4
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage280W

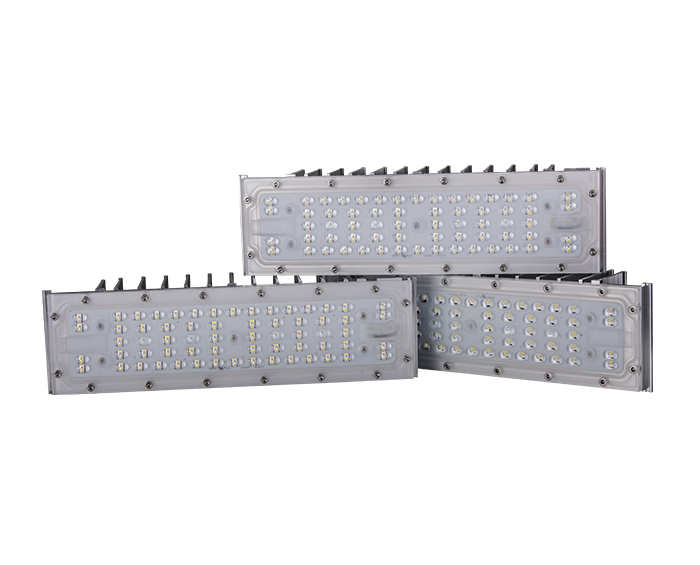

LED Module Quantity7 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output39200-46200 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


FAQ

What is the best light for an outdoor parking lot?

LED

Sensor lights or even better LEDs are better for parking lots because they have lower energy requirements, good color, and durability. Although more expensive, LED outdoor lights to have a very long lifespan and provide targeted lighting that helps reduce light pollution.


How are parking lot lights controlled?

Motion sensors are now being used to help parking lots save energy at night. At night, most parking lots are free of pedestrian or car traffic. Double-glazed lighting will use motion sensors to turn the lights on to full power, only if there are people inside the parking lot.
