High Lumen LED Parking Lot Light

Home  /  Products / LED Parking Lot Light / High Lumen LED Parking Lot Light
  • Modular design 200w Commercial Parking Lot Lights
  • Modular design 200w Commercial Parking Lot Lights
  • Modular design 200w Commercial Parking Lot Lights
  • Modular design 200w Commercial Parking Lot Lights
  • Modular design 200w Commercial Parking Lot Lights

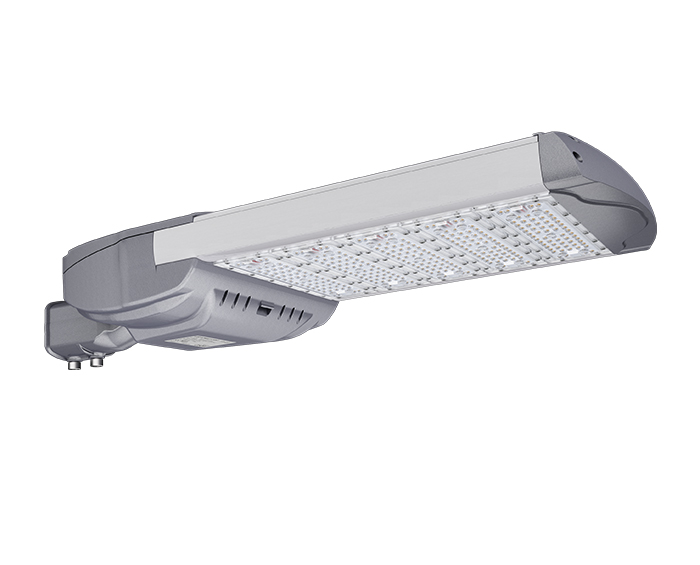

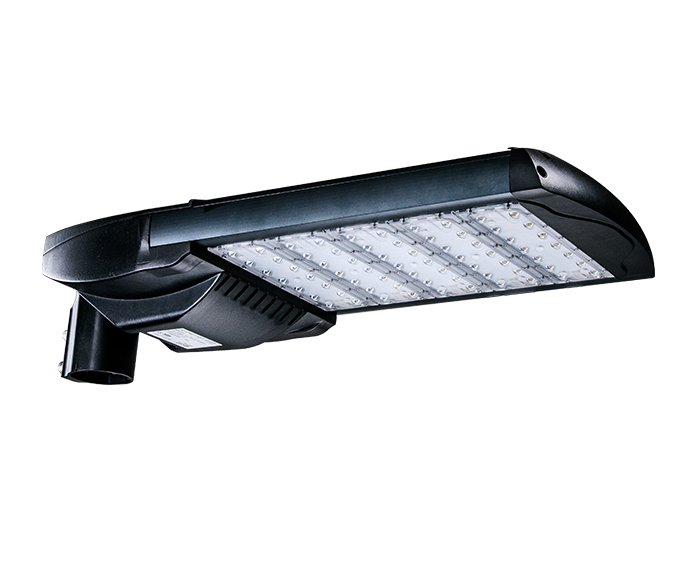

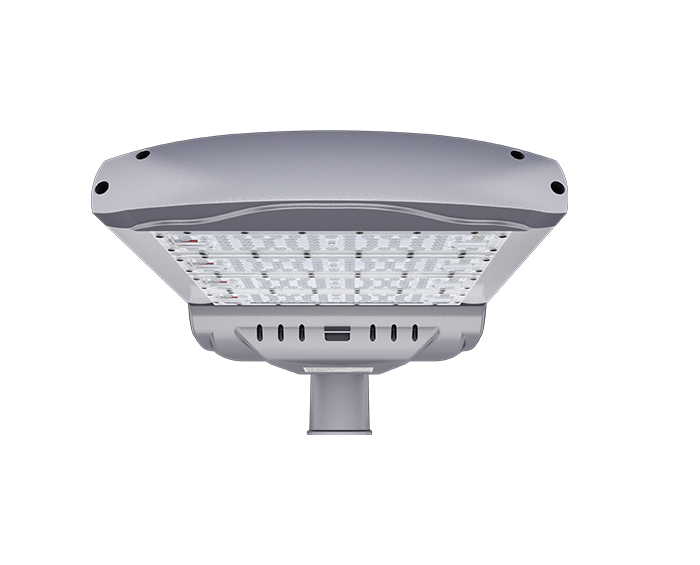

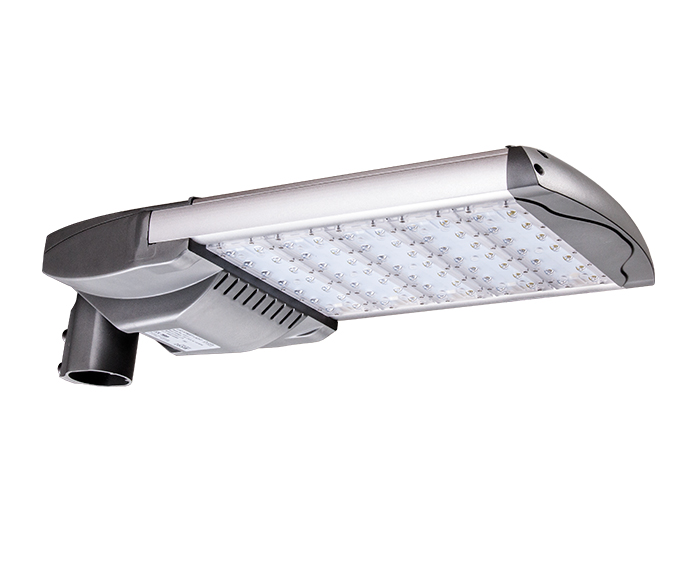

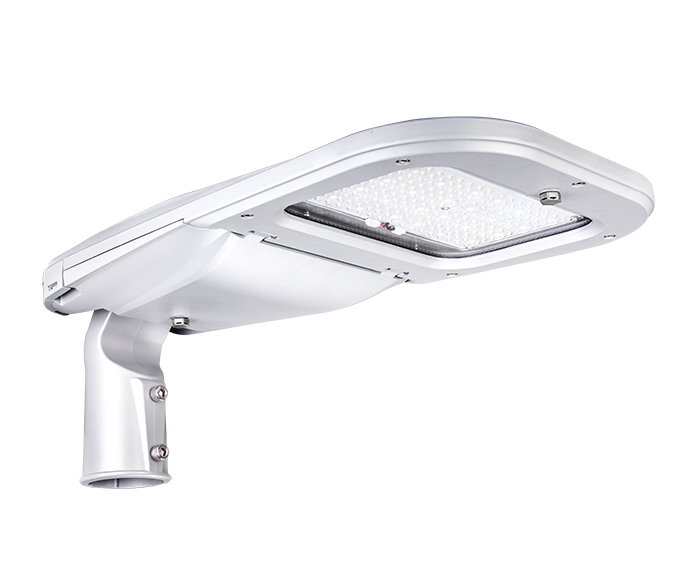

Modular design 200w Commercial Parking Lot Lights

Commercial Parking Lot Lights are outdoor lights that cast maximum light over large areas to improve visibility and help ensure safe navigation for pedestrians and vehicles. They are usually mounted on poles and are often used to illuminate outdoor parking lots, parking lots, streets, and sidewalks.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

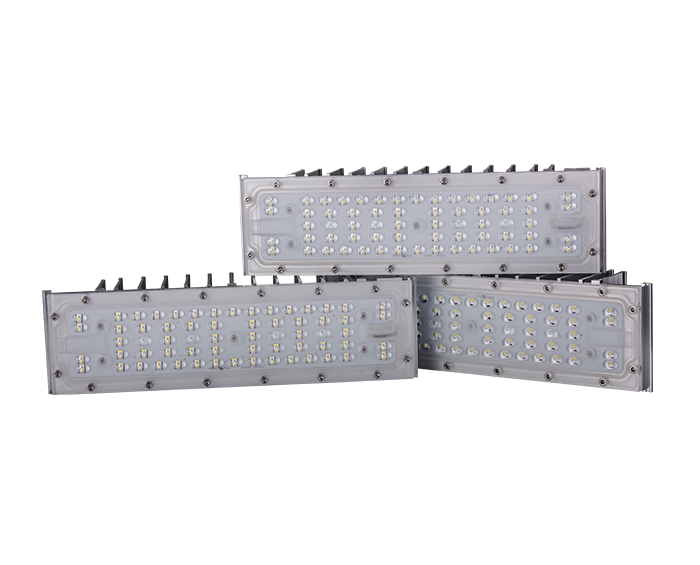

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty


Specifications

ModelZGSM-LD200H4
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage200W
LED Module Quantity5 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output28000-33000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,ENEC,CB,LM80,LM79,FCC,IP66,IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years

FAQ

How high are the light poles in the parking lot?

12 feet to 20 feet

Parking lights can be installed at heights ranging from 12 feet to 20 feet, but in some cases up to 35 feet. The size of the parking lot will be used to determine the recommended height of the pole; Larger areas are more suitable for higher poles and vice versa.


Where are street lights and parking lights used?

Street lights and parking lights can be used for many things. In addition to illuminating roads and outdoor parking, these lights can be seen illuminating playgrounds, parks, and sidewalks. These lights also have lower power versions with more architectural designs. These pillar-top fixtures can be used along park trails as well as sidewalks and walkways.
