ShoeBox LED Parking Lot Light

Home  /  Products / LED Parking Lot Light / ShoeBox LED Parking Lot Light
  • Tool-less 55w Shoebox LED Parking Lot Lights
  • Tool-less 55w Shoebox LED Parking Lot Lights
  • Tool-less 55w Shoebox LED Parking Lot Lights
  • Tool-less 55w Shoebox LED Parking Lot Lights
  • Tool-less 55w Shoebox LED Parking Lot Lights

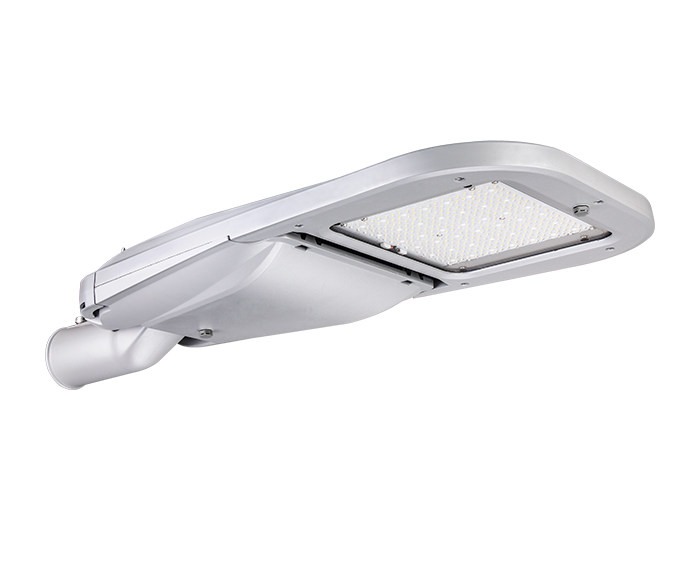

Tool-less 55w Shoebox LED Parking Lot Lights

Shoebox LED Parking Lot Lights are constructed all over in Die-cast aluminum and Tempered Glass, the LED shoebox light provides an efficient way to light up large areas with ease. They are pole mount fixtures found in parking lots and large outdoor areas. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 25W~200W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Tool-less open for easy installation, replacement, and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high-quality LED chips.

8. Pass the 1000-hour salt spray test.

9. Vertical and horizontal installation are both available, adjustable by ±15° in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.


Specifications

ModelZGSM-LD55KS
LED BrandLUMILEDS® LUXEON 3030 or 5050
Driver BrandMeanwell HLG series/ Inventronics
Normal Wattage55W
LED Chip Quantity3030: 96pcs 5050: 48pcs
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-145 lm /w
Lamp Rated Lumen output6875-7975 lm (Lumen tolerance +/- 5%)
Color Rendering Index70(80 optional)
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsDie-cast aluminum;Tempered Glass
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK08
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ENEC, CB ROHS, LM80, LM79, IP66 IK08, ISTMT
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsDeep grey or Light grey
Warranty7 years

FAQ

How high are the parking lights?

12 feet to 20 feet

Parking lights can be installed at heights ranging from 12 feet to 20 feet, but in some cases up to 35 feet. The size of the parking lot will be used to determine the recommended height of the pole; Larger areas are more suitable for higher poles and vice versa.


How are parking lights controlled?

Motion sensors are now being used to help parking lots save energy at night. At night, most parking lots are free of pedestrian or car traffic. Double-glazed lighting will use motion sensors to turn the lights on to full power, only if there are people inside the parking lot.


How do outdoor motion lights work?

How do motion detectors work? Motion detectors are small electronic eyes that detect infrared waves, i.e. heat waves radiated from moving objects. When the detector senses an object moving in its field of vision — especially hotter objects such as people, animals, and cars — it electronically turns on the lights.
