Toolfree led flood light

Home  /  Products / LED Flood Light / Toolfree led flood light
  • 150W LED Flood Light With Die-cast Aluminum
  • 150W LED Flood Light With Die-cast Aluminum
  • 150W LED Flood Light With Die-cast Aluminum
  • 150W LED Flood Light With Die-cast Aluminum
  • 150W LED Flood Light With Die-cast Aluminum

150W LED Flood Light With Die-cast Aluminum

150W LED Flood Light is made of die-cast aluminum and tempered glass, available in a variety of light distribution types, and the buckle design makes it very easy for further maintenance. Photocell and motion sensors are optional. Adjustable installation angle.



Key Features

1. Up to 100, 000hrs @ L70, low maintenance cost

2. World-class, approbated quality components (LEDs /Driver /etc.)

3. Equip with vent to avoid internal fogging and frosting

4. Wide choice of optics to suit more applications (asymmetrical and symmetrical)

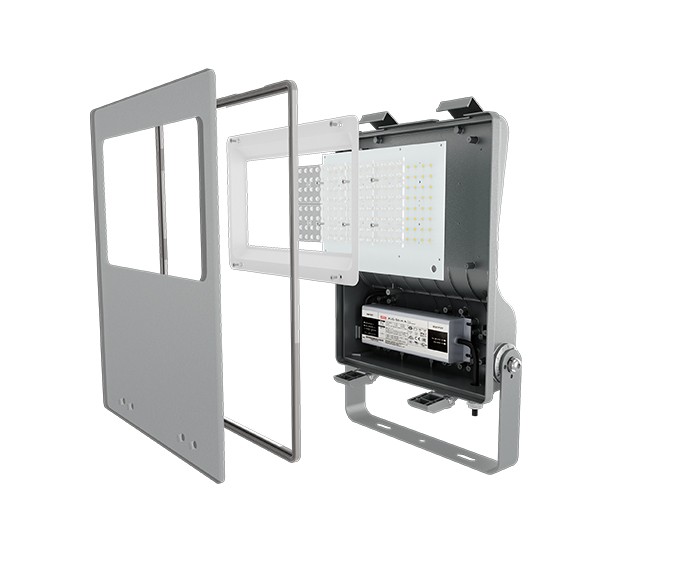

5. Buckle design makes it very easy for further maintenance

6. 5 years warranty


ModelZGSM-FL07-150L   / ZGSM-FL07-150L+
LED BrandLUMILEDS   3030 OR 5050
Driver BrandInventronics   (Default) / Other brands on request
Normal Wattage150W
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency145-165lm/w
Lamp Rated Lumen output21750-24750   lm (Lumen tolerance +/- 5%)
Color Rendering Index70   (80 is optional)
Color Temperature3000K,   4000K, 5000K, 5700K
Photometric Type25°,   60°, 90°, 120°, or Asymmetrical
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C,   10%~90%RH
Total Harmonic Distortion<   10%
Lumen Maintenance>   100,000 hours -L70, @25 ºC (77 ºF)
BodyHigh-pressure die-cast aluminum
CoverTempered   glass
RatingIP66, IK09
Protection Class I (Default) /Class II
CertificationCE, RoHS, ENEC, CB, LM79, LM80, TM-21
Dimming Options1-10V Dimming (Default) /Timer Dimming
Control OptionsPhotocell, Motion sensor
Color OptionsGray   (Default) /Black (available on request)
Warranty5   years


Why is aluminum used in die casting?

Aluminum has good corrosion resistance and mechanical properties as well as high thermal and electrical conductivity, making it a good alloy for die casting. Low-density aluminum metals are essential for the die casting industry.

What is a die-cast lamp?

Lighting die casting produces non-toxic and lightweight aluminum lamps. They are also non-corrosive and ideal for outdoor use. Die-cast aluminum imitation cast iron is particularly popular with street lamps or outdoor lights, but it can also be used to produce exquisite chandeliers and wall lamps.

Where do I use floodlights?

A floodlight is an artificial light with a wide beam. Floodlights are most commonly found in places where large amounts of artificial light are required. Some of these spaces include large car parks, venues for events such as concerts or theater halls, and outdoor playgrounds.
